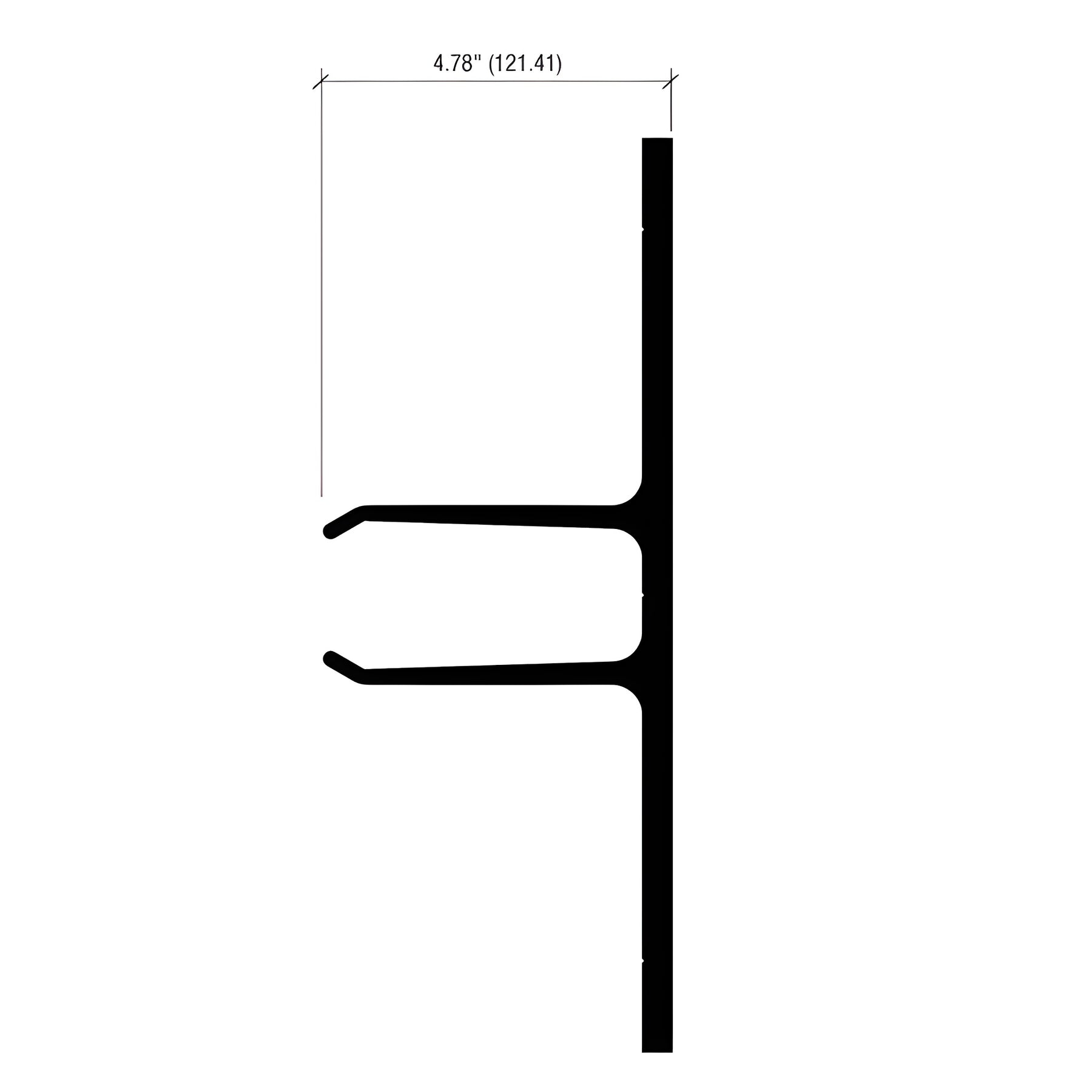

CRL-U.S. Aluminum StormWall XL T-Anchor

CRL-U.S. Aluminum StormWall XL T-Anchor

Buy More, Save More!

Product quantity	Discount
Buy 3	2% off
Buy 5	4% off
Buy 10	6% off
Buy 15	8% off
Buy 20	10% off

Overview

SKU	XLA10502
Pack Size	1
Finish/Color:	Mill

Description

Product Details

Works with Standard Captured Wall Mullions, Heavy Captured Jamb Mullions, and SSG Mullions
Mill Finish
Packed 10 Per Box

This intermediate T-Anchor is used to secure vertical mullions to structure. It fits StormWall XL500 Mullions.

Specifications

Technical Resources

Brochures & Literature

Institutional Project Case StudiesOpen PDF ↗

StormWall XL Product InformationOpen PDF ↗

USAL14 The Storefront Store CatalogOpen PDF ↗

USAL15 Curtain Walls CatalogOpen PDF ↗

Installation Instructions

StormWall XL Installation InstructionsOpen PDF ↗

Specifications

StormWall XL Hurricane-Resistant Curtain Wall System 3 Part-SpecOpen PDF ↗

CAD Drawings - pdf

StormWall XL Hurricane-Resistant Curtain Wall System CAD Drawings.pdfOpen PDF ↗

CAD Drawings - dwg

StormWall XL Hurricane-Resistant Curtain Wall System CAD Drawings.dwgOpen DWG ↗

Engineering & Test Reports

StormWall XL - SSG Twin Span - Air Water Structural Impact - CCLI 11-238Open PDF ↗

StormWall XL - Single Span - Air Water Structural Impact - A8744.04-801-18Open PDF ↗

StormWall XL - Thermal Performance - AAMA 1503 - Clear - C2681.02-116-46Open PDF ↗

StormWall XL - Thermal Performance - AAMA 1503 - Low E - C2682.04-116-46Open PDF ↗

StormWall XL - Thermal Performance - AAMA 507 - C2680.05-116-45Open PDF ↗

StormWall XL - Thermal Performance - NFRC 102 - C2682.03-116-46Open PDF ↗

StormWall XL - Thermal Performance - NFRC Simulations - C2680.06-116-45Open PDF ↗

StormWall XL - Twin Span - Air Water Structural Impact - CCLI 11-226Open PDF ↗
