CRL-U.S. Aluminum Tubular Gear Hinge Up-and-Over Frame Kit 75.5x85.75

CRL-U.S. Aluminum Tubular Gear Hinge Up-and-Over Frame Kit 75.5x85.75

$683.01 CAD
$683.01 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FZ4281172
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

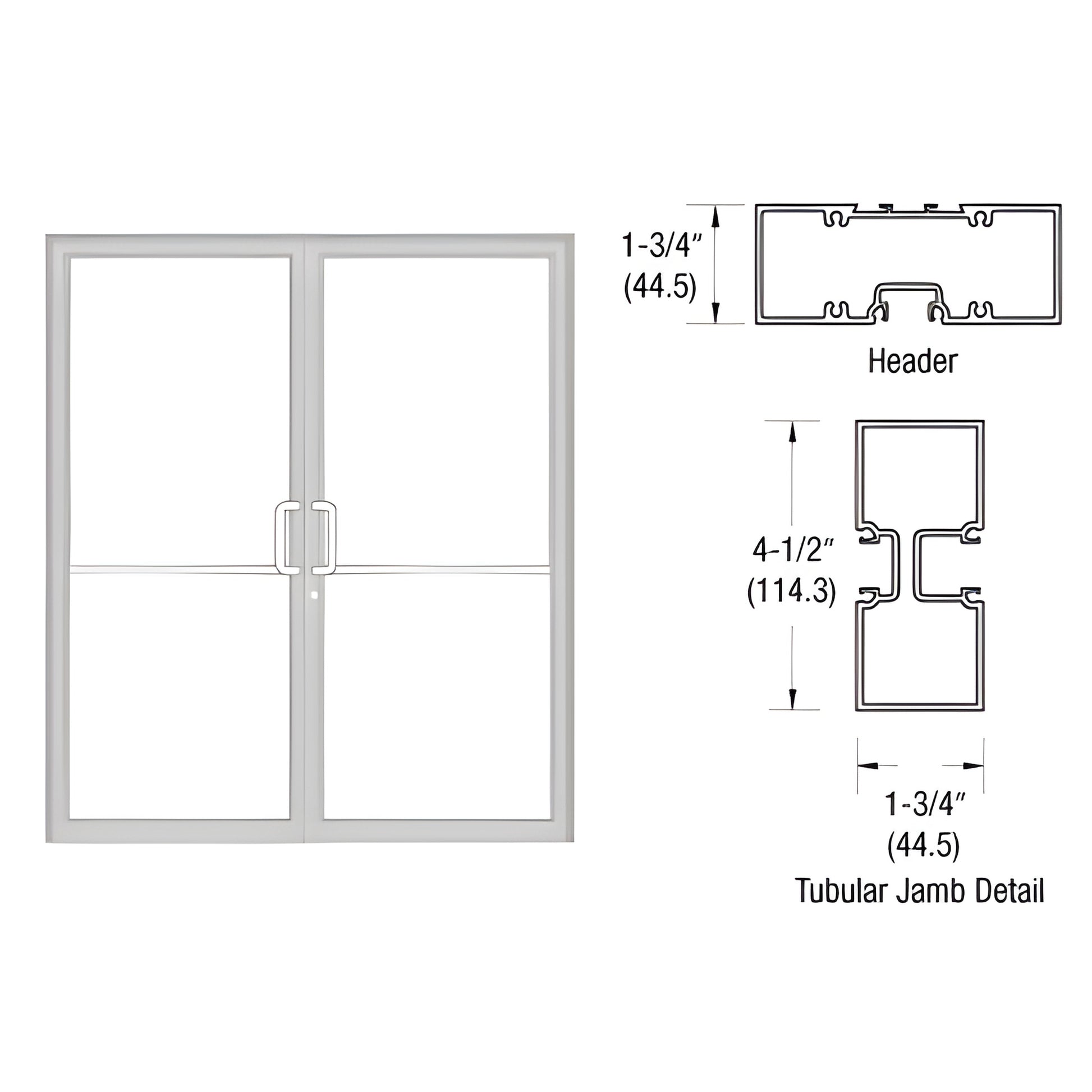

  • 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Gear Hinge Up and Over Frame with Tubular Jambs
  • 75-1/2" x 85-3/4" (1.9 x 2.2 m) Base Frame Size (Outside Dimensions)
  • 72" x 84" (1.8 x 2.1 m) Door Opening
  • Aluminum Threshold is Included

Complete Frame — Built for a 72" x 84" Gear Hinge Concealed Vertical Rod Panic Door (surface mount closer). Constructed with 1S456 Tubular Jambs and 1S467 Header; includes all associated extrusions, weatherstrip, standard hardware, and hardware preparations. All assembly fasteners, standard hardware, and hardware fabrication are supplied; customer provides fasteners to attach frame to opening. No modifications are offered on Standard Frames.

SKU: FZ4281172

Designed for commercial panic door installations, this gear hinge up-and-over frame with aluminum threshold and tubular jambs provides reliable performance for concealed vertical rod panic doors and surface mount closers.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Order SKU FZ4281172 or contact CRL for a quote and shipping details.
