CRL-U.S. Aluminum Water Deflector for Structural Silicone Glazed Sills - 50/Pk

Overview

SKU	WD704
Sold as	1 Pack
Finish/Color:	Mill

Description

Product Details

50 Per Package
For Structural Silicone Glazed Sills
Works With All Three Mullion Depths

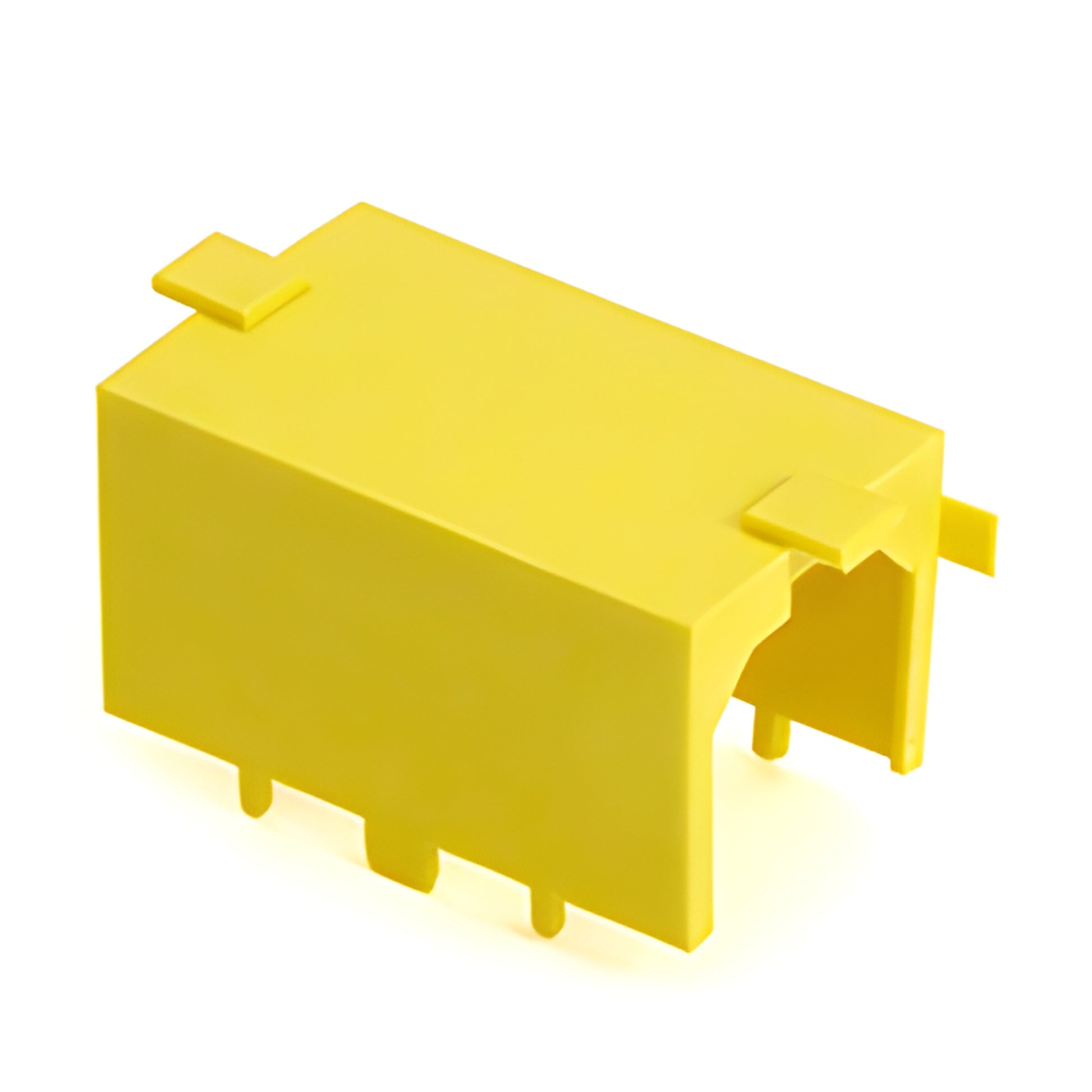

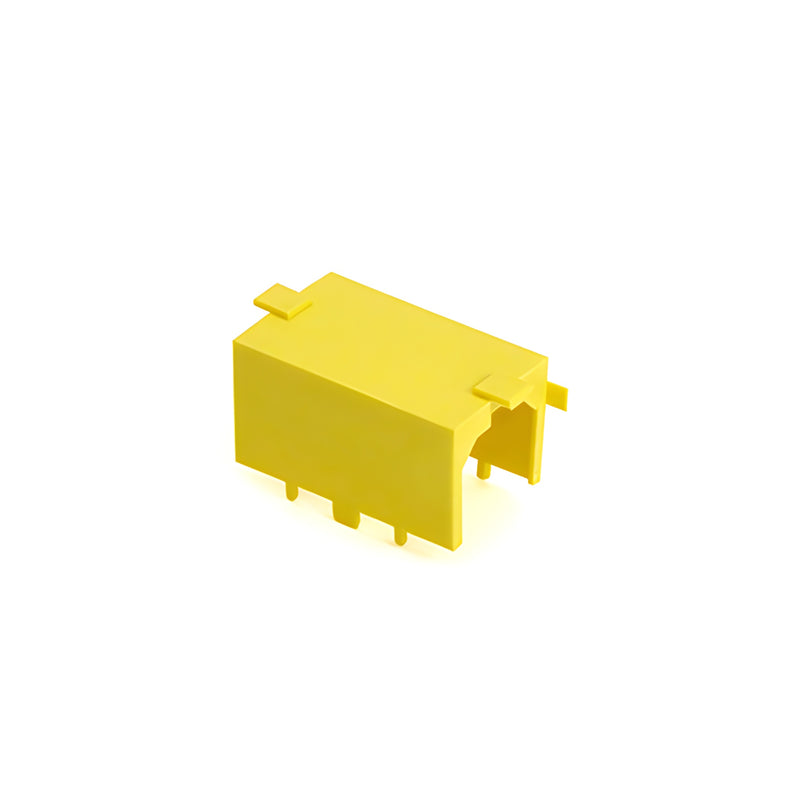

This CRL Water Deflector is designed to deflect infiltrated water at corner mullions.
