CRL-U.S. Aluminum Water Diverter for Structural Silicone Glazed Heads - 50/Pk

Overview

SKU	WD705
Sold as	1 Pack
Finish/Color:	Mill

Description

Product Details

For Structural Silicone Glazed Heads
50 Per Package
Works with All Three Mullion Depths

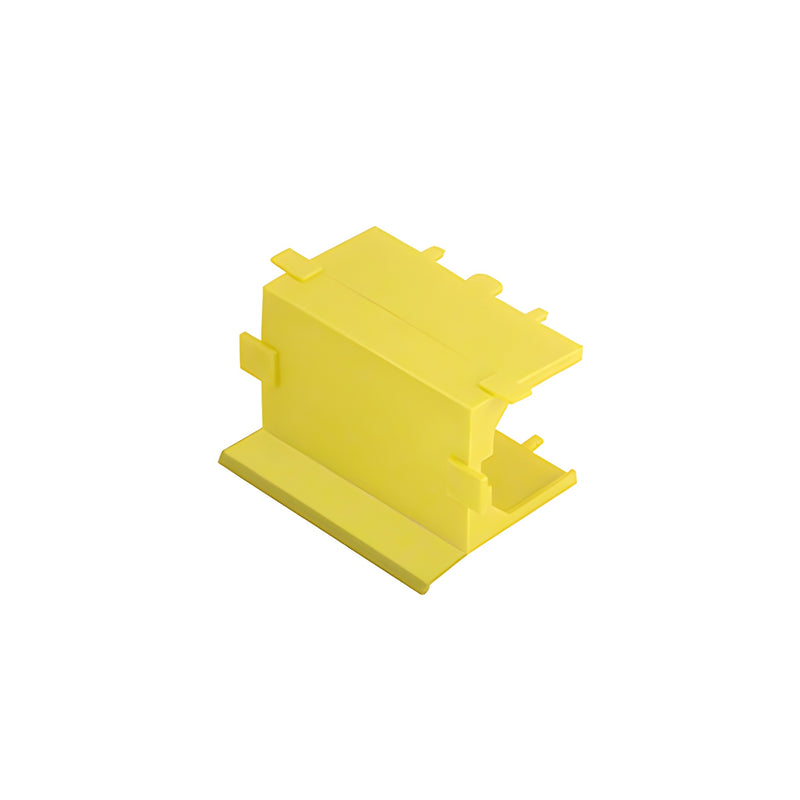

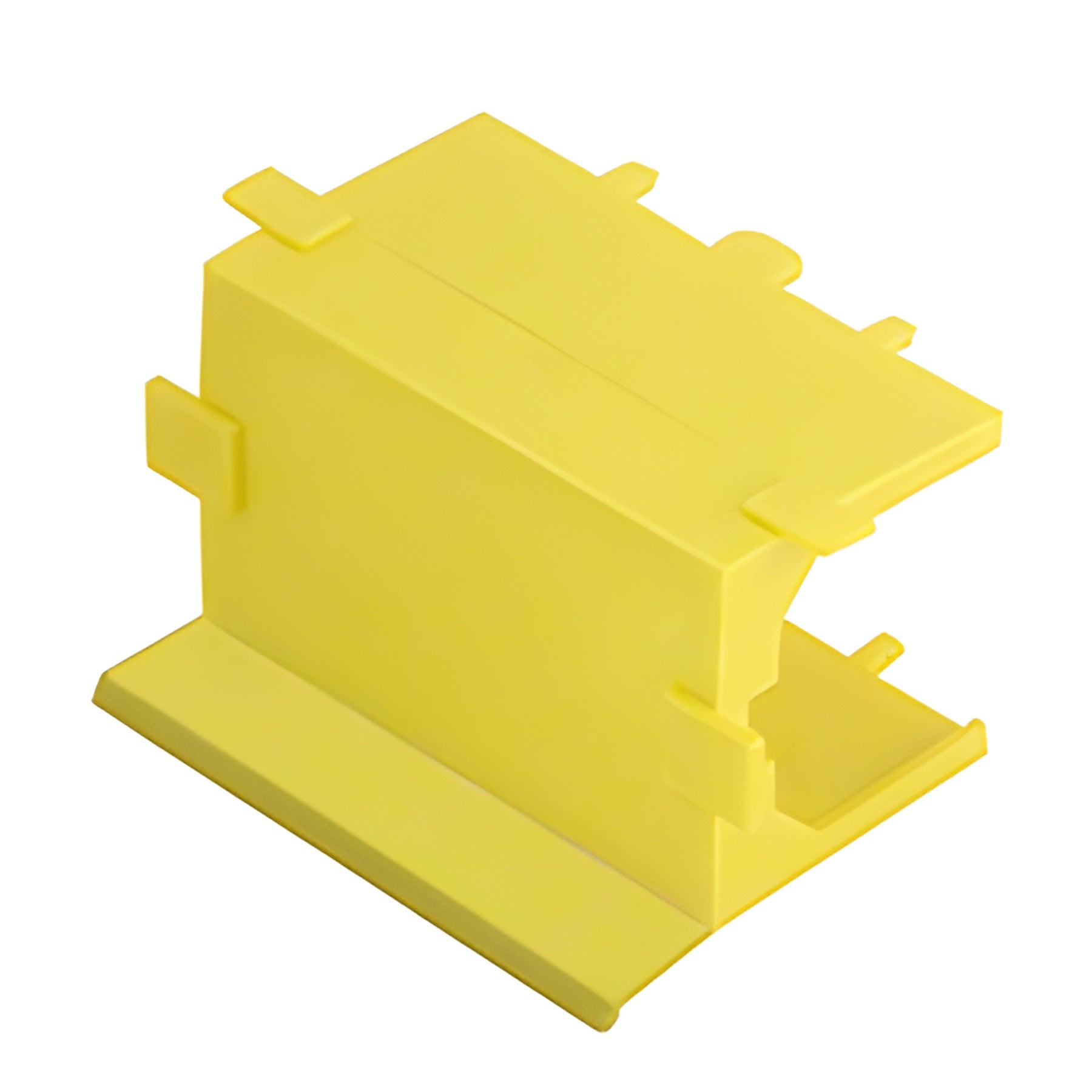

This CRL Water Deflector is designed to deflect infiltrated water at corner mullions.
