CRL-U.S. Aluminum White KYNAR 550 Wide Stile Entry Door, Closer Ready

CRL-U.S. Aluminum White KYNAR 550 Wide Stile Entry Door, Closer Ready

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DE51552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
  • Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
  • 9-1/2" (241 mm) bottom rail installed to meet A.D.A. requirements
  • Custom fabricated to accept a wide range of optional hardware applications

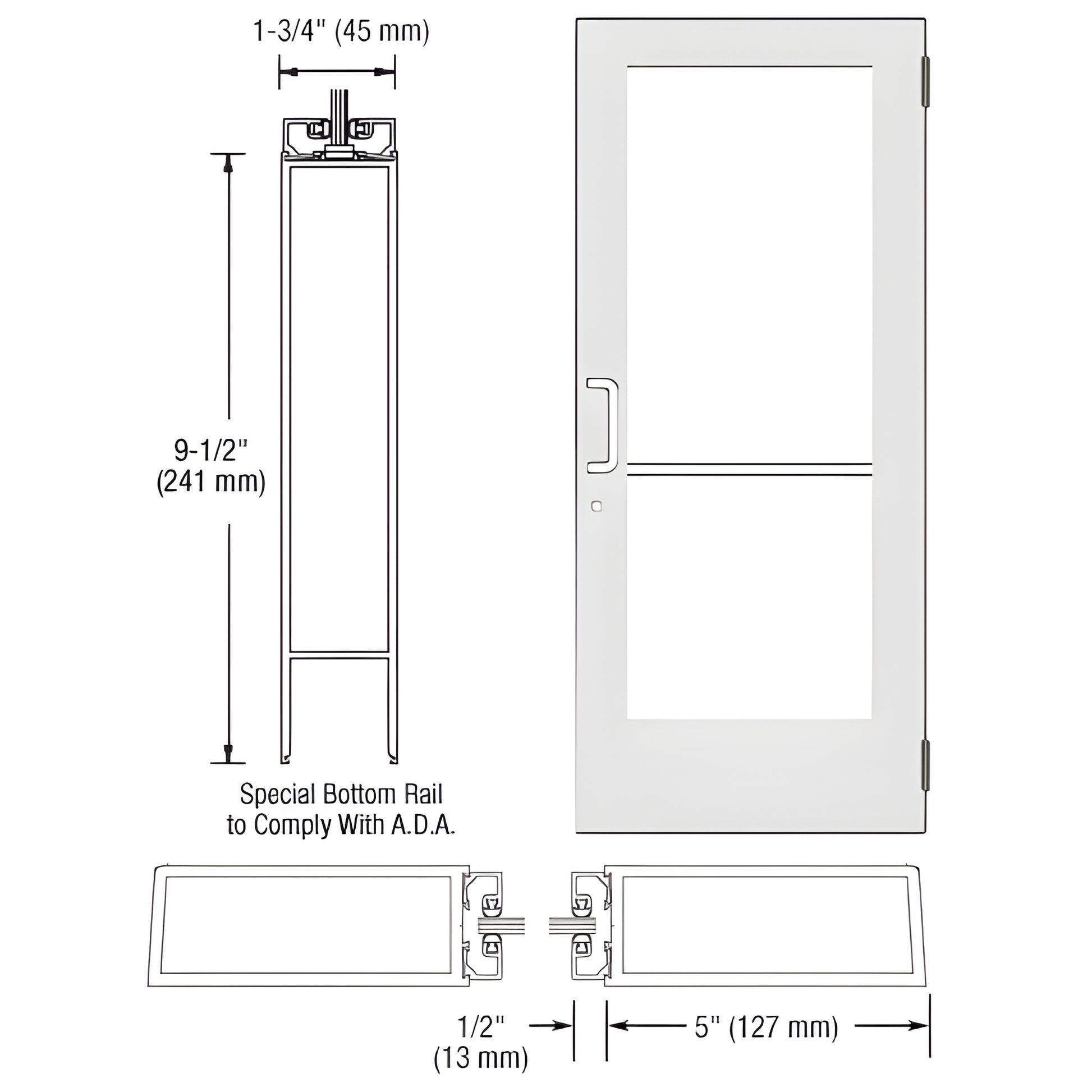

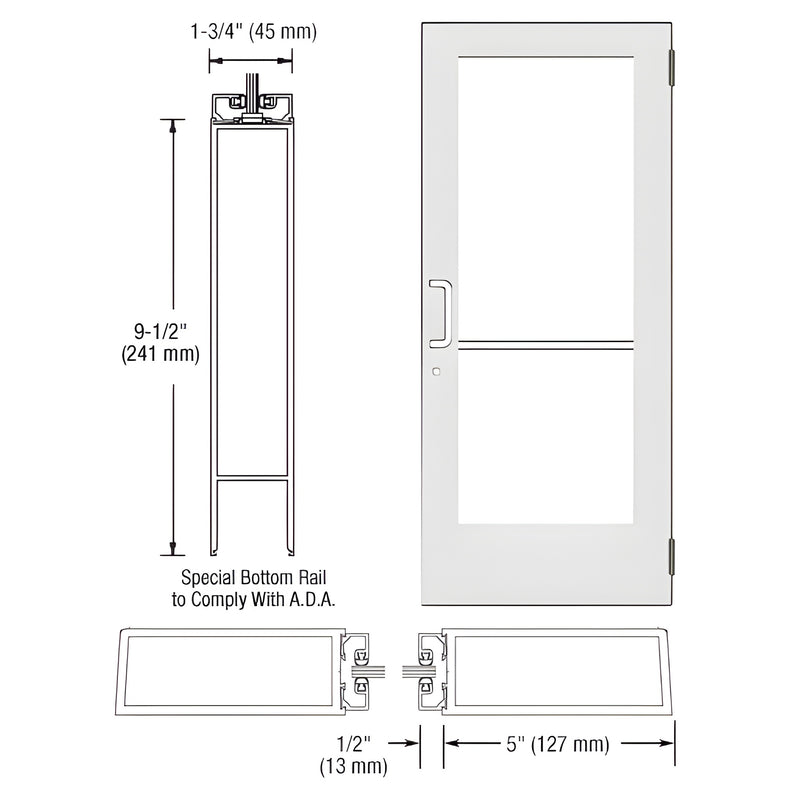

This Custom Wide Stile Entrance Door (SKU: DE51552) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail for ADA compliance. Standard design includes stiles prepared for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). Door ships with protruding hardware (handles, pivots, etc.) boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet ADA inspection criteria.

Most shipping weights are approximate and have not been verified. If you need an exact weight to determine shipping costs before ordering, please contact CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor settings.


Upgrade your storefront with this durable, ADA-ready custom wide stile entrance door—contact us to request a quote or custom hardware options.

Specifications

BIM Objects - rvt
Entrance Series 250 400 550 BIM.rvt
