CRL-U.S. Aluminum White KYNAR® Narrow Stile Geared-Hinge Entrance Door

• 9-1/2" (241 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept a wide range of optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accommodates 1/4" (6 mm) tempered glass (by others) with an option for a 1" (25 mm) tempered insulating unit (glass not included)

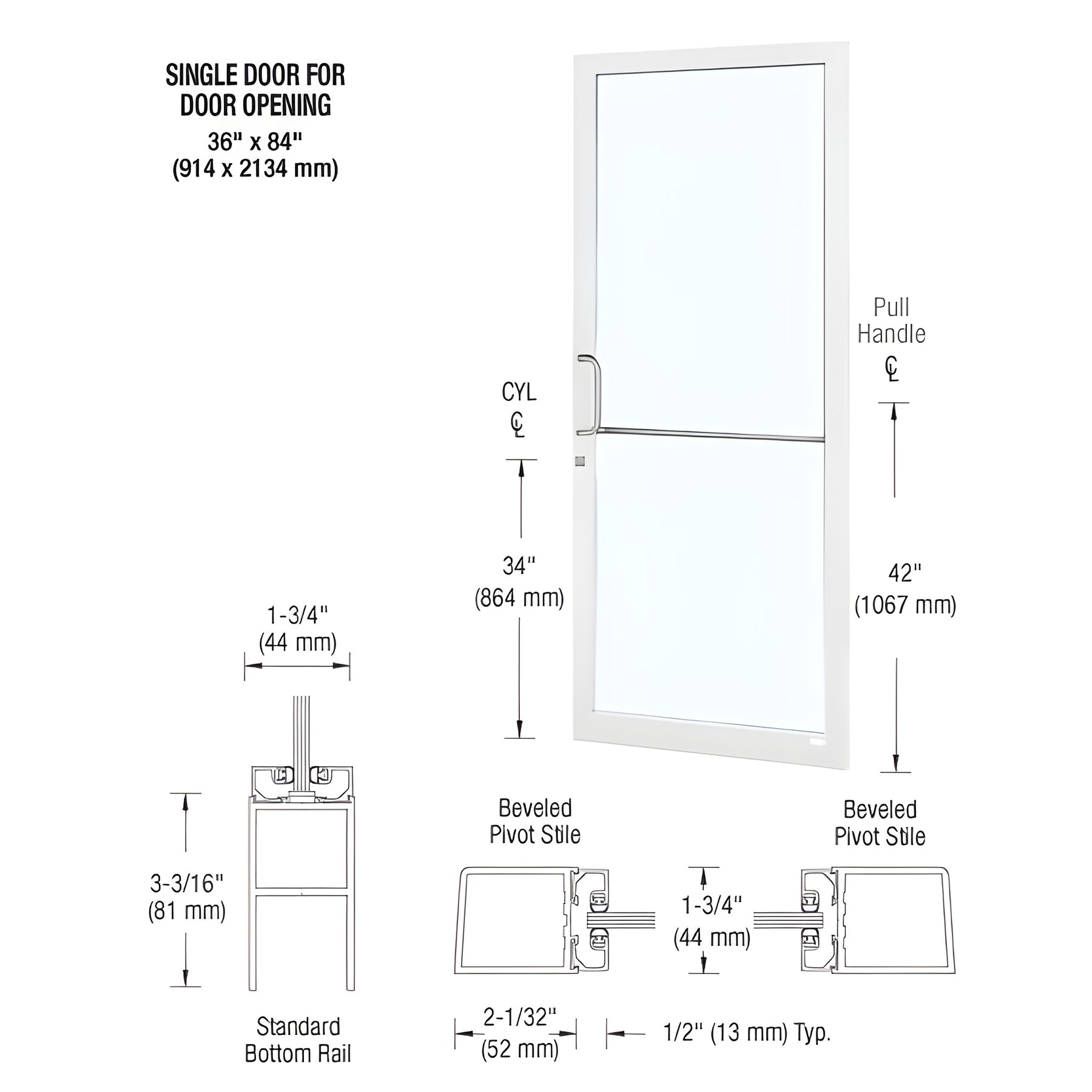

This Custom Narrow Stile Entrance Door (SKU: DC21852) is engineered as a durable, customizable aluminum entrance solution. It features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Key differentiators include the 9-1/2" ADA-compatible bottom rail and factory-ready stiles for Gear Hinge hardware, making it an ideal choice for commercial ADA-compliant narrow stile entrance door projects and custom front door hardware installations.

Standard configuration provides glass stops for 1/4" (6 mm) tempered glass; a 1" (25 mm) insulated glass option accommodates improved thermal performance when paired with proper glazing (glass supplied by others). Customer installation required for protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage. Note: door widths less than 36" (914 mm) may not pass A.D.A. inspection.

Order SKU DC21852 or contact CRL for custom hardware options and ADA-compliant configurations.
