CRL-U.S. Aluminum White KYNAR® Offset Pivot Door for Surface Closer
CRL-U.S. Aluminum White KYNAR® Offset Pivot Door for Surface Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE41252
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)

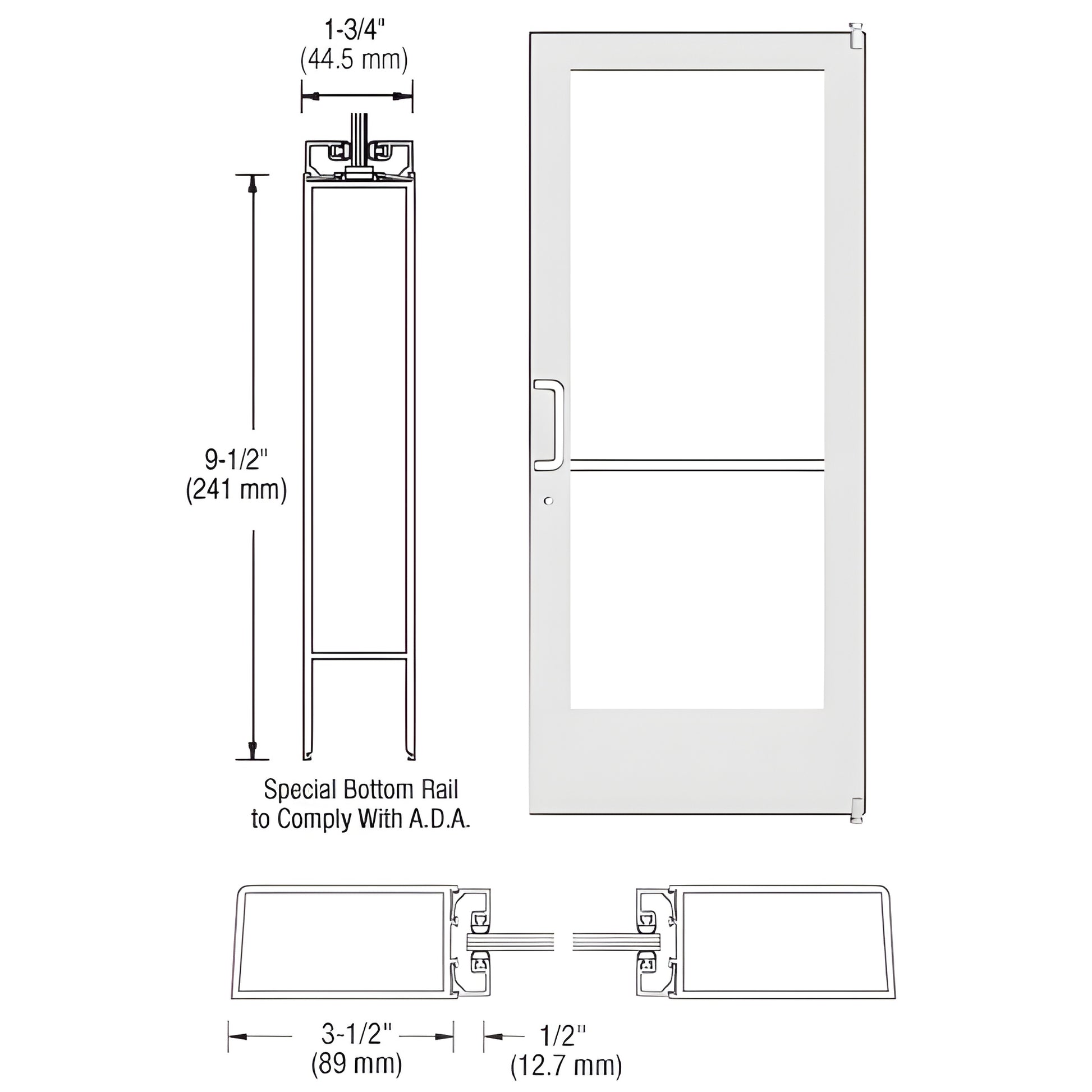

This Custom Medium Stile Entrance Door (SKU: DE41252) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA‑compliant bottom rail. It ships with stiles prepped for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass (glazing supplied by others). The door is ready for custom fabrication to accommodate a wide range of optional commercial entrance hardware.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed on site to prevent transit damage. Doors narrower than 36" (914 mm) may not meet A.D.A. inspection requirements.
Order SKU DE41252 or contact us for custom hardware options and glazing recommendations.
Specifications
BIM Objects - rvt
