CRL-U.S. Aluminum White KYNAR Offset Pivot Door w/ Panic & Closer

CRL-U.S. Aluminum White KYNAR Offset Pivot Door w/ Panic & Closer

Regular price $1,098.30 CAD
Regular price Sale price $1,098.30 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Item# DZ21252
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (IGU). Glass not included.
  • Custom made to your exact size specifications — ideal for bespoke commercial storefront and narrow-stile entrance projects.
  • Includes standard panic pull and required hanging hardware; panic hardware and cylinder are ordered and added separately.
  • 3-3/16" (81 mm) bottom rail for added durability and threshold compatibility.
  • Custom fabricated to accept a wide range of optional hardware applications; stiles prepared for offset pivot hardware.

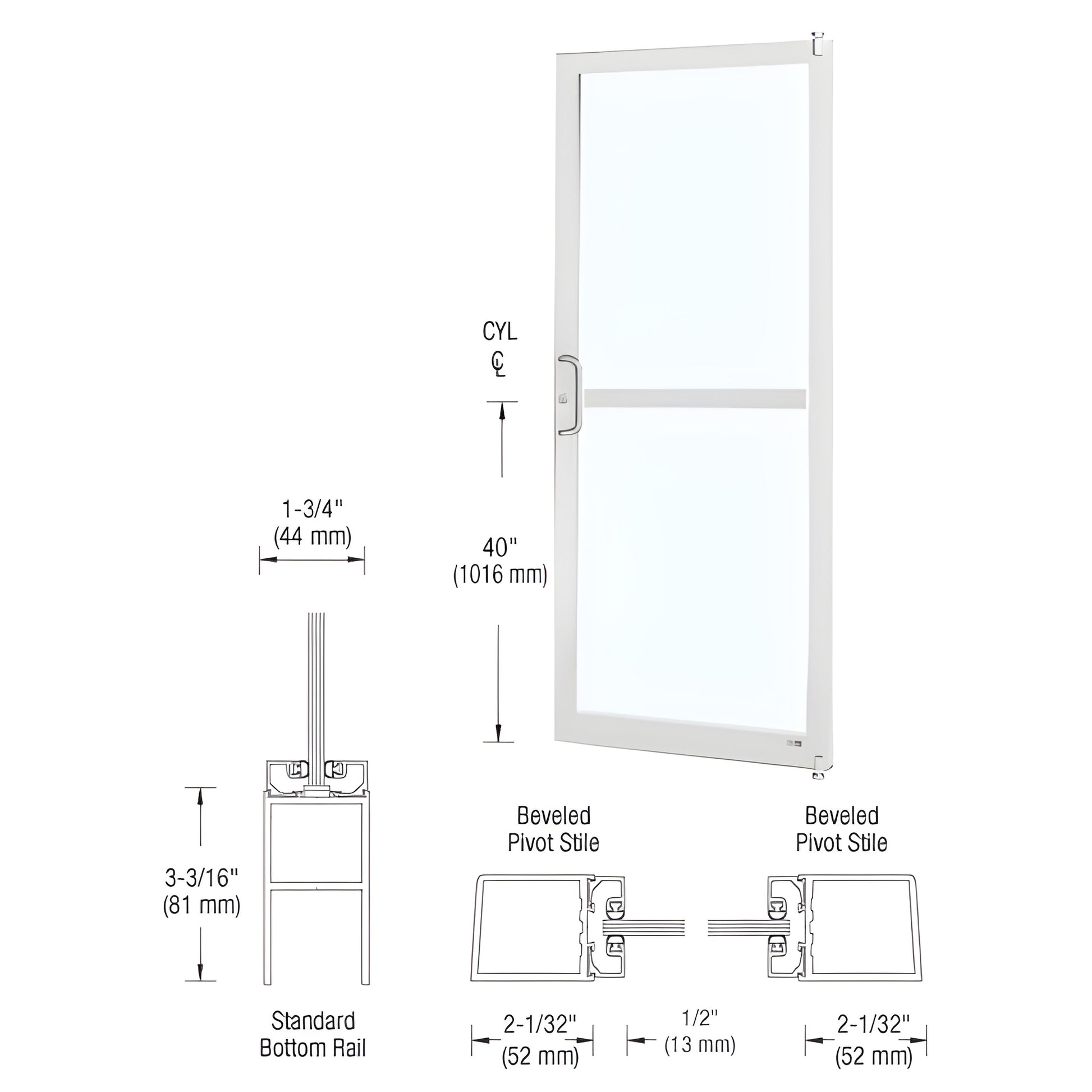

This Custom Narrow Stile Entrance Door (SKU: DZ21252) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard glass stops fit 1/4" (6 mm) tempered glass supplied by others. The unit is ready for custom fabrication to support optional commercial hardware applications and storefront installations.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed on site to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. clearance requirements. Panic hardware and cylinder are sold and added separately.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; actual colors may vary by monitor.


Ready to order a custom narrow stile entrance door? Contact our sales team for a quote and lead time.
