CRL-U.S. Aluminum White KYNAR Offset Pivot Door w/ Panic Hardware
Item# CZ41152
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
White Kynar
- Includes Standard Panic Pull, Hanging Hardware, Concealed Vertical Rod Panic Hardware, and one cylinder
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications

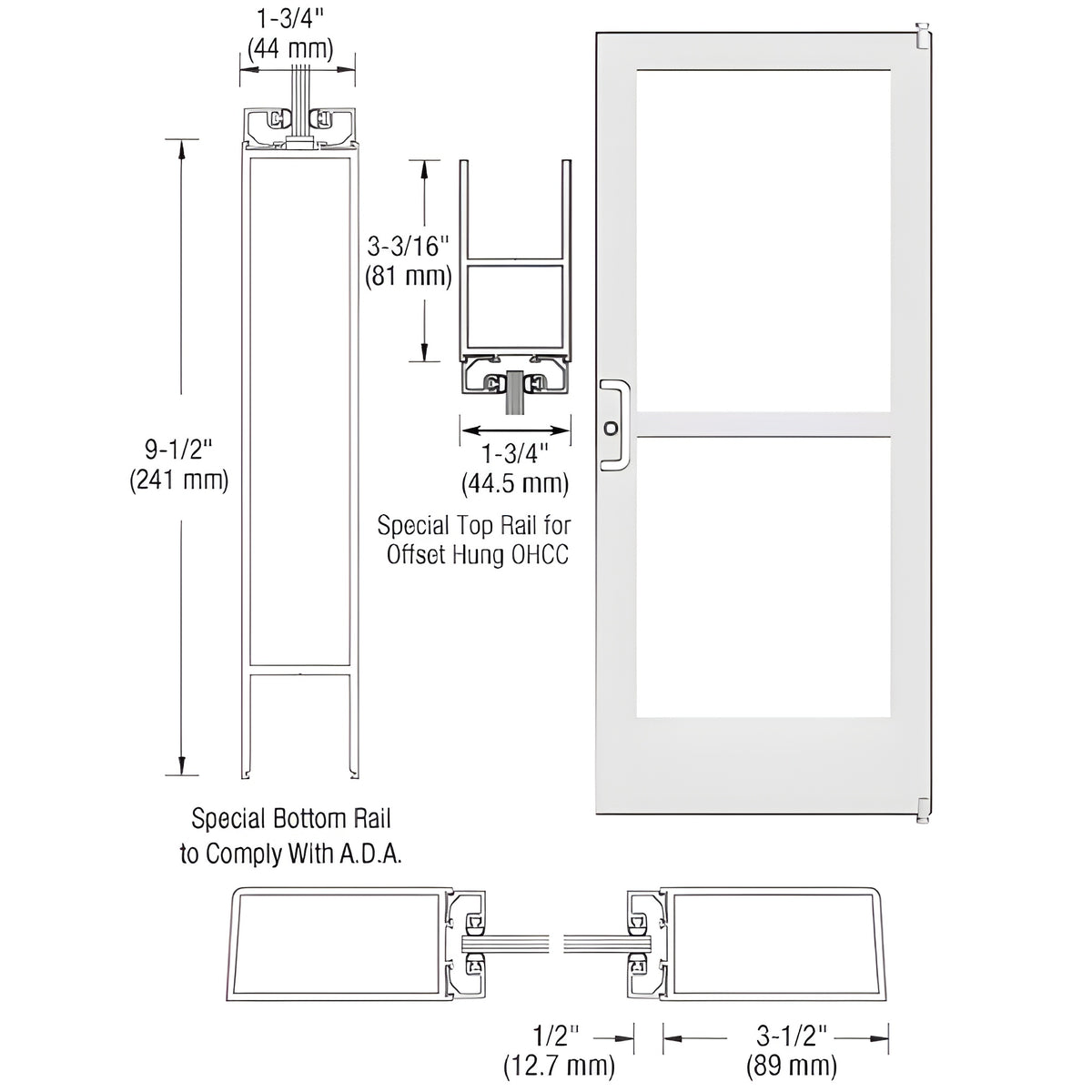

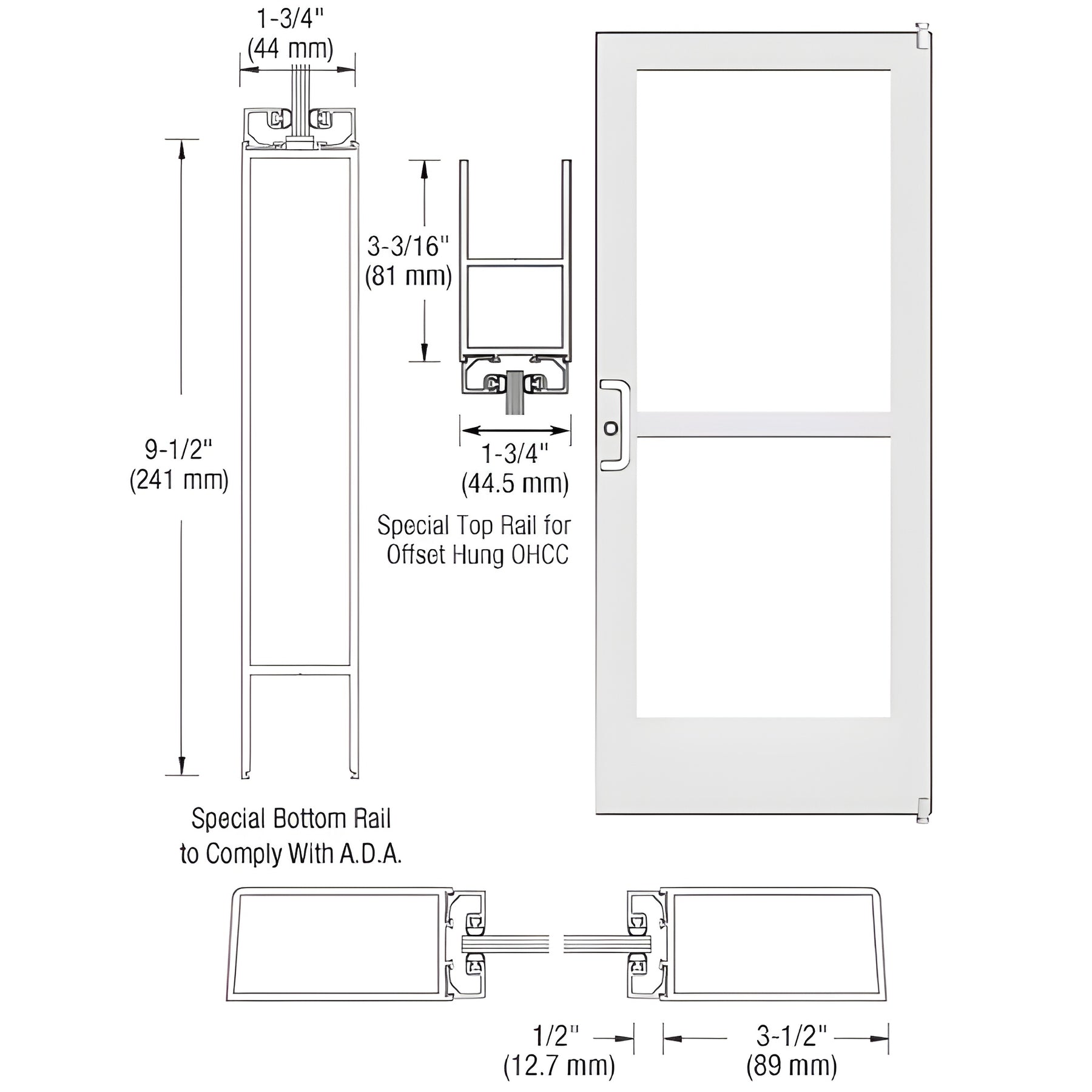

This CRL Custom Medium Stile Entrance Door (SKU: CZ41152) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial storefronts, it ships with stiles prepped for Offset Pivot hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to support a wide range of optional hardware, including concealed vertical rod panic hardware for secure, ADA-aware commercial entries.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection.
Most shipping weights are approximate and have not been verified. If exact weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
Order CZ41152 today to get a customizable, ADA-aware commercial glass entrance door—contact us for quoting and lead time.
