Product Details

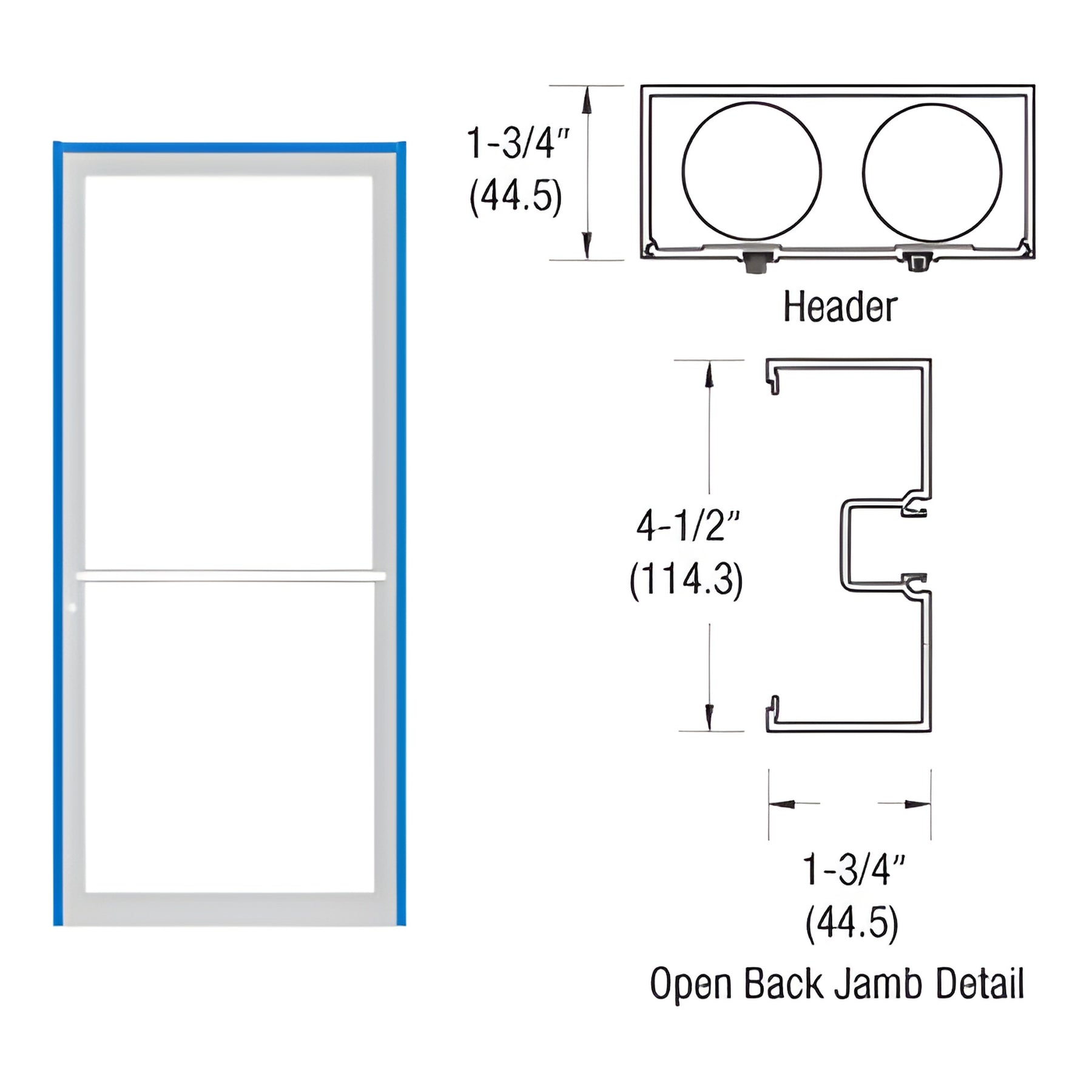

- 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Up and Over Frame with Open Back Jambs
- 39-1/2" x 85-3/4" (1.0 x 2.2 m) Base Frame Size (Outside Dimensions)
- 36" x 84" Base (.9 x 2.1 m) Door Opening
- No Threshold, Hardware or Hardware Fabrication is Included
CRL Blank frame is built to accommodate a base single 36" x 84" center hung door for Overhead Concealed or Concealed Floor Closer, constructed using JS451 Open Back Jambs with JC457/P427 Header. All hardware and hardware prep must be added to suit custom job conditions.
Blank frames only include hardware to attach the Header to the Jambs. All other hardware and hardware preparations must be added as needed. Frame widths less than 39-1/2" may not pass A.D.A. Inspection.
