CRL-U.S. Aluminum White KYNAR® Paint Custom Pair Series 250T Narrow Stile Geared Hinge Thermal Entrance Doors for Surface Mount Door Closers

• 4-5/16" (110 mm) Bottom Rail
• 10" (254 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
• Custom Fabricated to Accept Optional Hardware Applications
• Includes Active and Inactive Leaf with All Standard Hardware
• Accommodates 1" (25 mm) Tempered Insulating Unit (Glass Not Included)

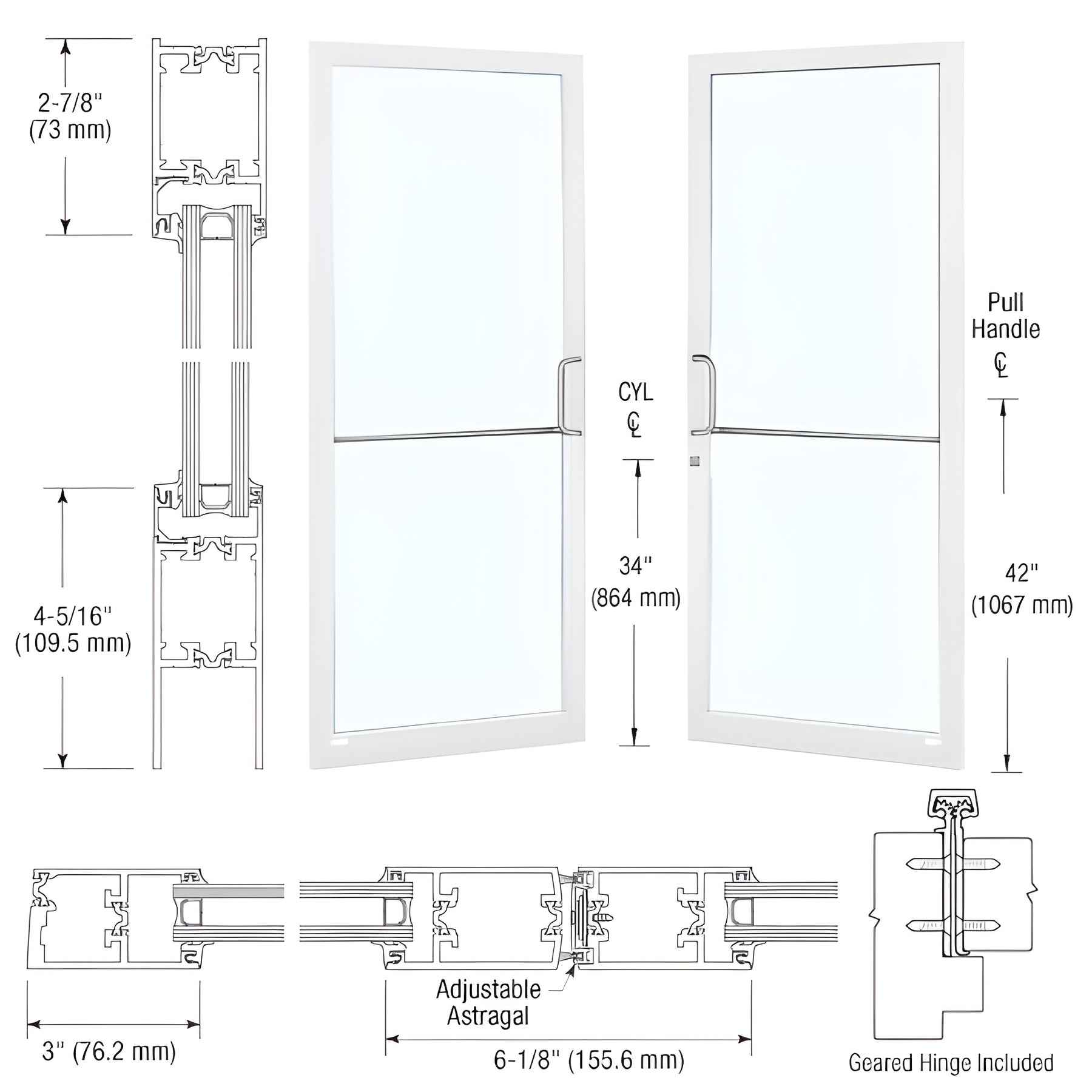

This CRL Custom Narrow Stile Entrance Door (SKU: 1D22852) features narrow 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. Designed for commercial storefront and entrance door applications, it ships prepped for Gear Hinge hardware and includes glass stops for 1/4" (6 mm) tempered lite (glass supplied by others). The door is custom fabricated to accept a wide range of optional hardware and can accommodate a 1" (25 mm) tempered insulating glass unit for improved thermal performance.

For damage prevention, protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer after delivery. This narrow stile entrance door is ideal for projects needing a slim-profile, hardware-ready, commercial storefront solution with ADA-compliant bottom rail options.


Contact CRL Customer Service or order SKU 1D22852 today to specify ADA bottom rail or optional hardware configurations.
