CRL-U.S. Aluminum White KYNAR® Series 400 Geared Hinge Double Door
CRL-U.S. Aluminum White KYNAR® Series 400 Geared Hinge Double Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD42952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass, or optional 1" (25 mm) tempered insulating glass unit (IGU) — glass sold separately
- Includes both active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
- Custom fabricated to accept a wide range of optional hardware applications

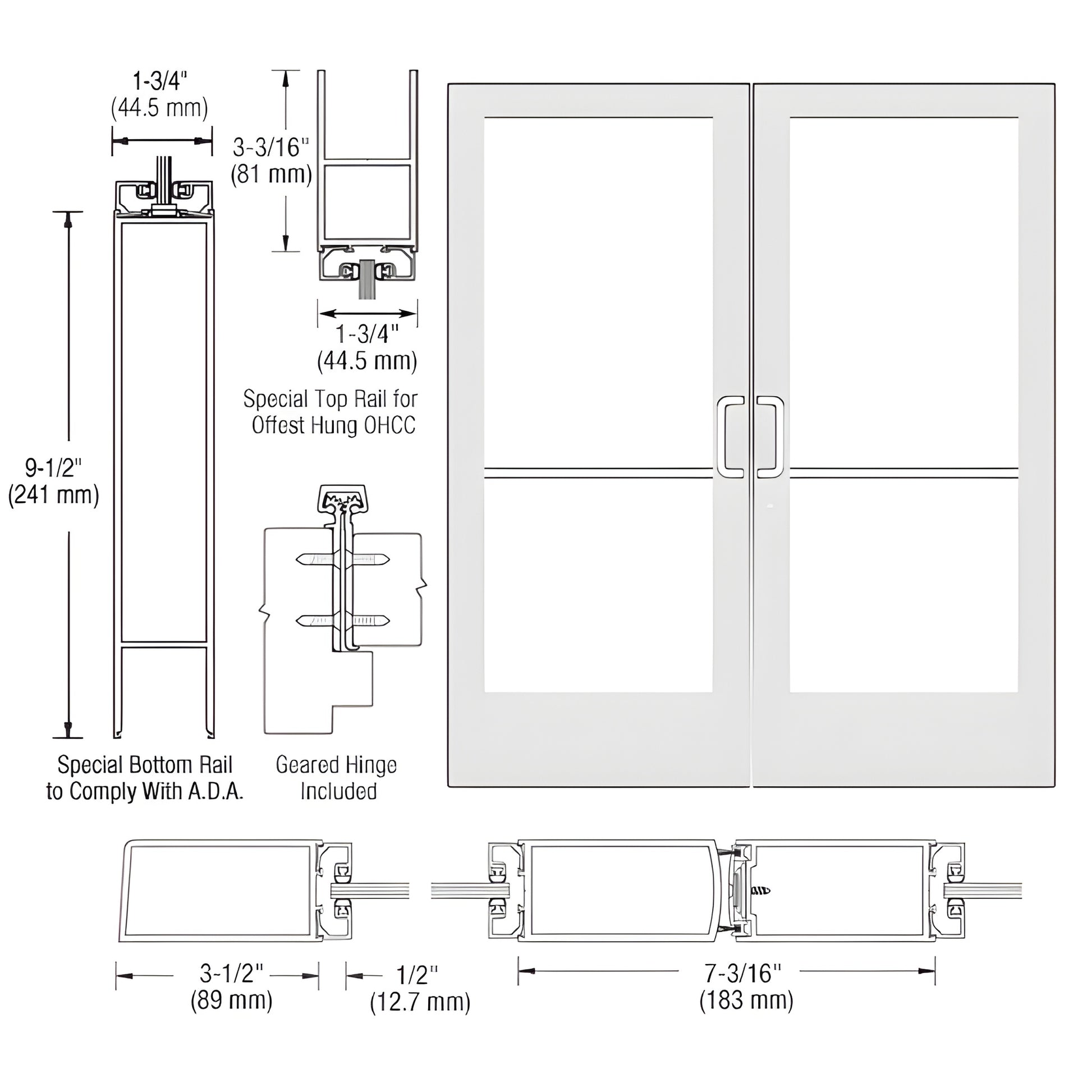

This CRL Custom Medium Stile Entrance Door (SKU: CD42952) features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial entrance applications, it includes stiles prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accommodate optional hardware such as pivots, handles, and other commercial-grade fittings.
Customer must install the protruding hardware (handles, pivots, etc.) that ships boxed separately to prevent transit damage.
For custom quoting or to order this commercial medium stile entrance door (SKU: CD42952), contact CRL or your authorized dealer today.
Specifications
BIM Objects - rvt
