CRL-U.S. Aluminum Series 400 White KYNAR® Geared Hinge Entrance Door
CRL-U.S. Aluminum Series 400 White KYNAR® Geared Hinge Entrance Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD41952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

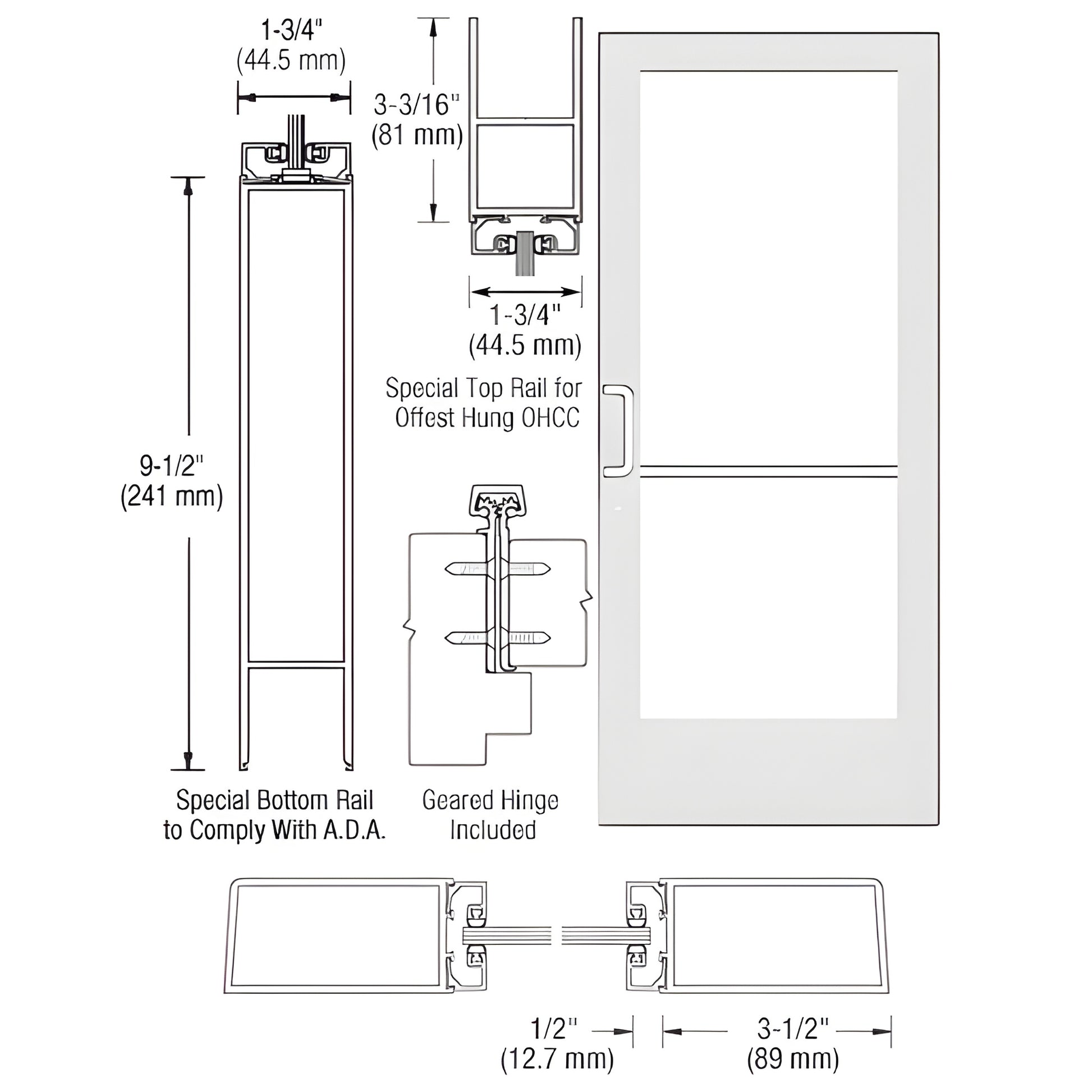

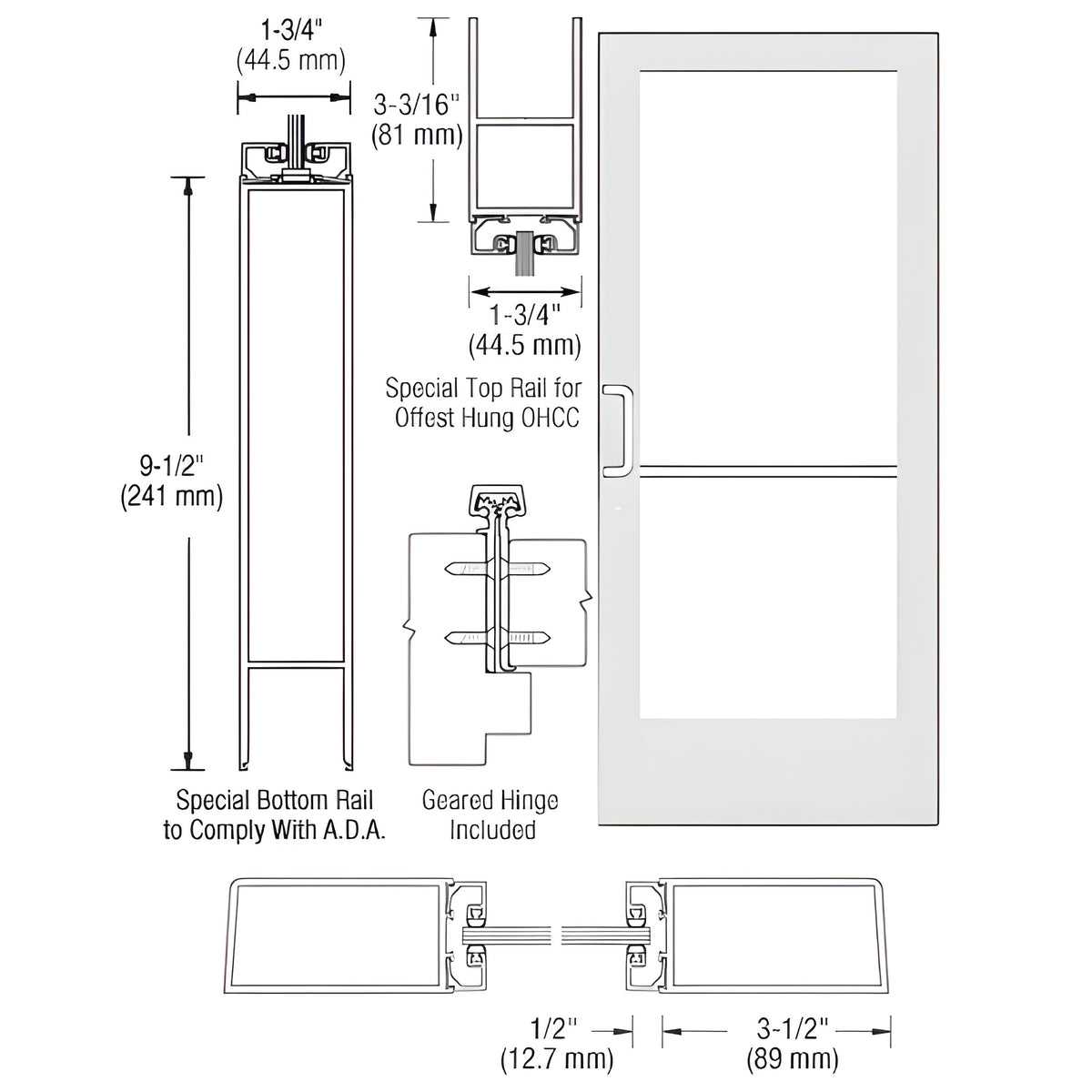

CRL Custom Medium Stile Entrance Door (SKU: CD41952) features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Designed for commercial and accessible entrances, this door ships ready for gear hinge hardware and glass stops for 1/4" tempered glass. Built for custom fabrication, it supports a wide range of optional commercial entrance hardware and security applications.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on site. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements. Glass and insulating units are not included.
Contact CRL Customer Service to confirm specifications or place an order.
Specifications
BIM Objects - rvt
