CRL-U.S. Aluminum Series 400 Geared-Hinge Exterior Door, White Kynar
CRL-U.S. Aluminum Series 400 Geared-Hinge Exterior Door, White Kynar
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD41852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Accepts 1/4" (6 mm) tempered glass; option for 1" (25 mm) tempered insulating unit (glass not included)
- Includes standard push/pull hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders

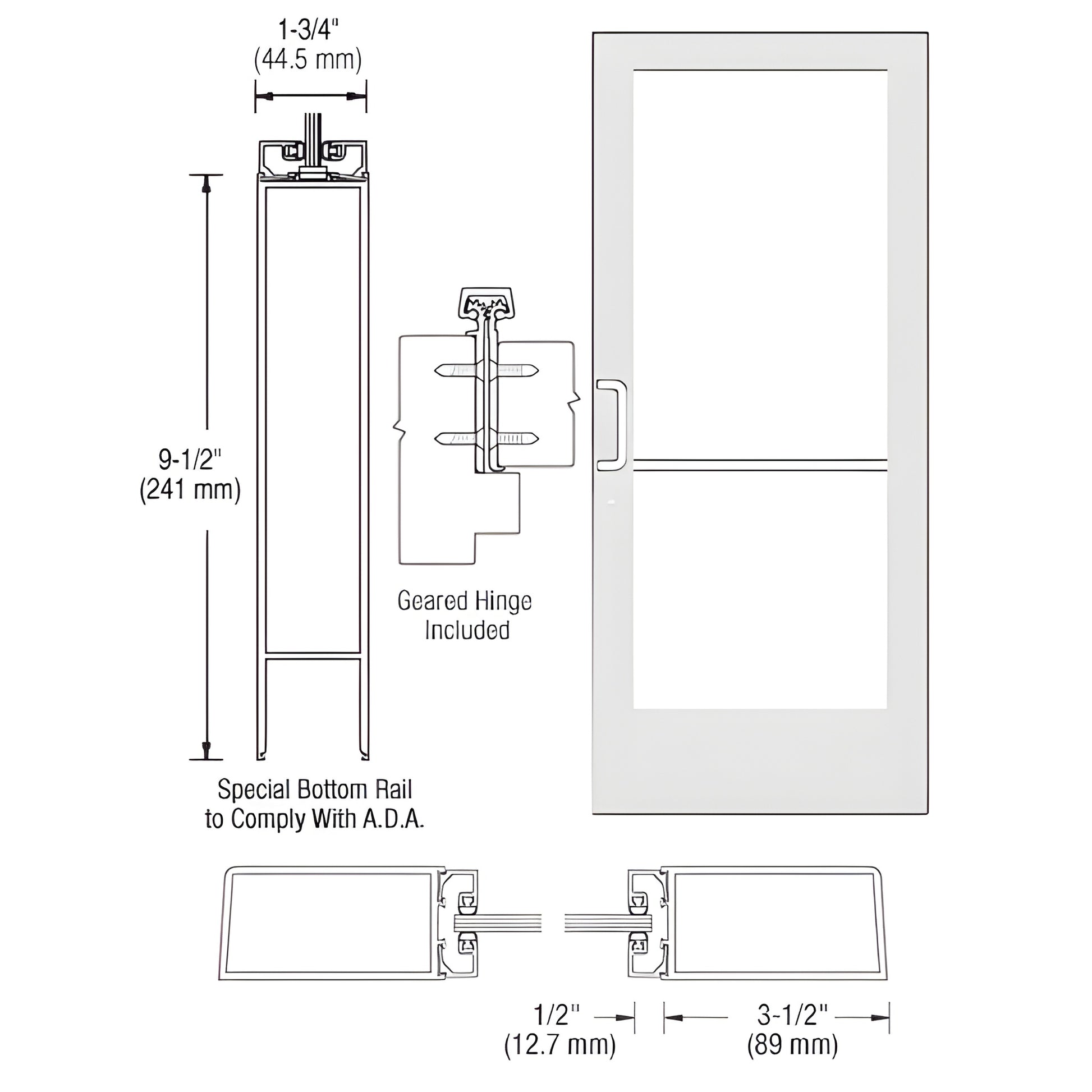

This CRL Custom Medium Stile Entrance Door features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial storefronts and ADA-aware installations, the door ships with stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). It is ready for custom fabrication to accommodate a wide range of optional hardware configurations.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet ADA inspection requirements.
SKU: CD41852
Order or request a quote for this CRL Custom Medium Stile Entrance Door (SKU CD41852) to get CAD details and custom hardware options.
Specifications
BIM Objects - rvt
