CRL-U.S. Aluminum 400T White KYNAR Thermal Entrance Door - Butt Hinge
CRL-U.S. Aluminum 400T White KYNAR Thermal Entrance Door - Butt Hinge
Regular price
$1,680.86 CAD
Regular price
Sale price
$1,680.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1D41552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 7-1/4" (184 mm) Bottom Rail
- 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)

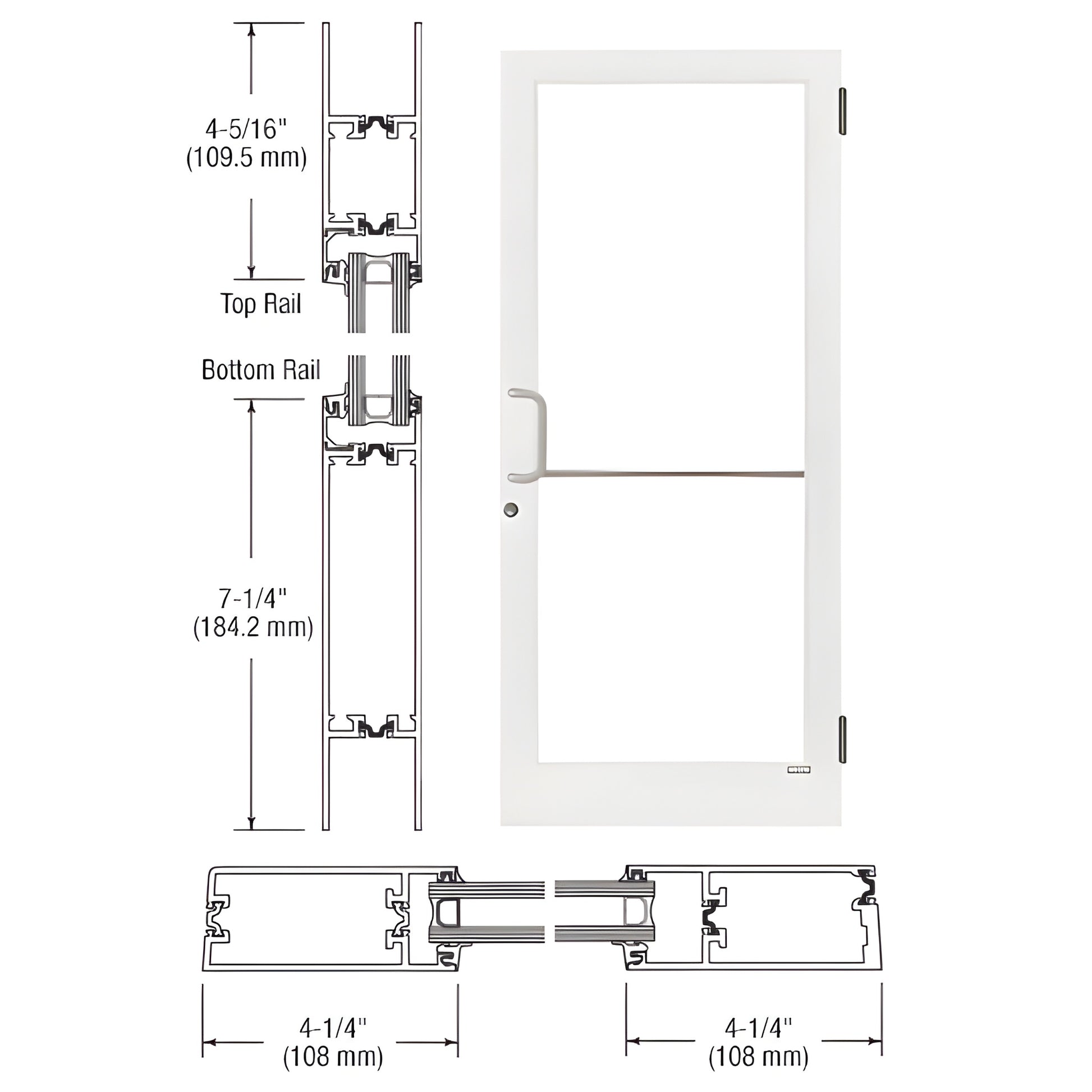

This CRL Custom Medium Stile Entrance Door (SKU: 1D41552) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Built for commercial storefronts and retrofit projects, the medium stile entrance door is engineered for easy custom fabrication and a wide range of optional hardware — including butt hinge readiness and provisions for MS hookbolt locking systems. The door accepts a 1" tempered insulating glass unit for improved thermal performance (glass supplied by others).
Differentiators
- Optional 10" (254 mm) ADA-compliant bottom rail for accessible entrances
- Shipped with two keyed‑alike cylinders and factory-supplied pull/handle hardware boxed separately to prevent transit damage
- Custom-fabrication friendly — designed to accept specialty hardware and commercial locking systems
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately.
Order or request a quote for SKU 1D41552 — contact CRL Customer Service to confirm specifications and shipping details.
Specifications
BIM Objects - rvt
