CRL-U.S. Aluminum 400T Thermal KYNAR® Entry Door w/ Butt Hinge & Panic Prep
CRL-U.S. Aluminum 400T Thermal KYNAR® Entry Door w/ Butt Hinge & Panic Prep
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1Z41552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
- Accepts 1" (25 mm) tempered insulating unit (glass not included)
- 7-1/4" (184 mm) bottom rail; 10" (254 mm) bottom rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications

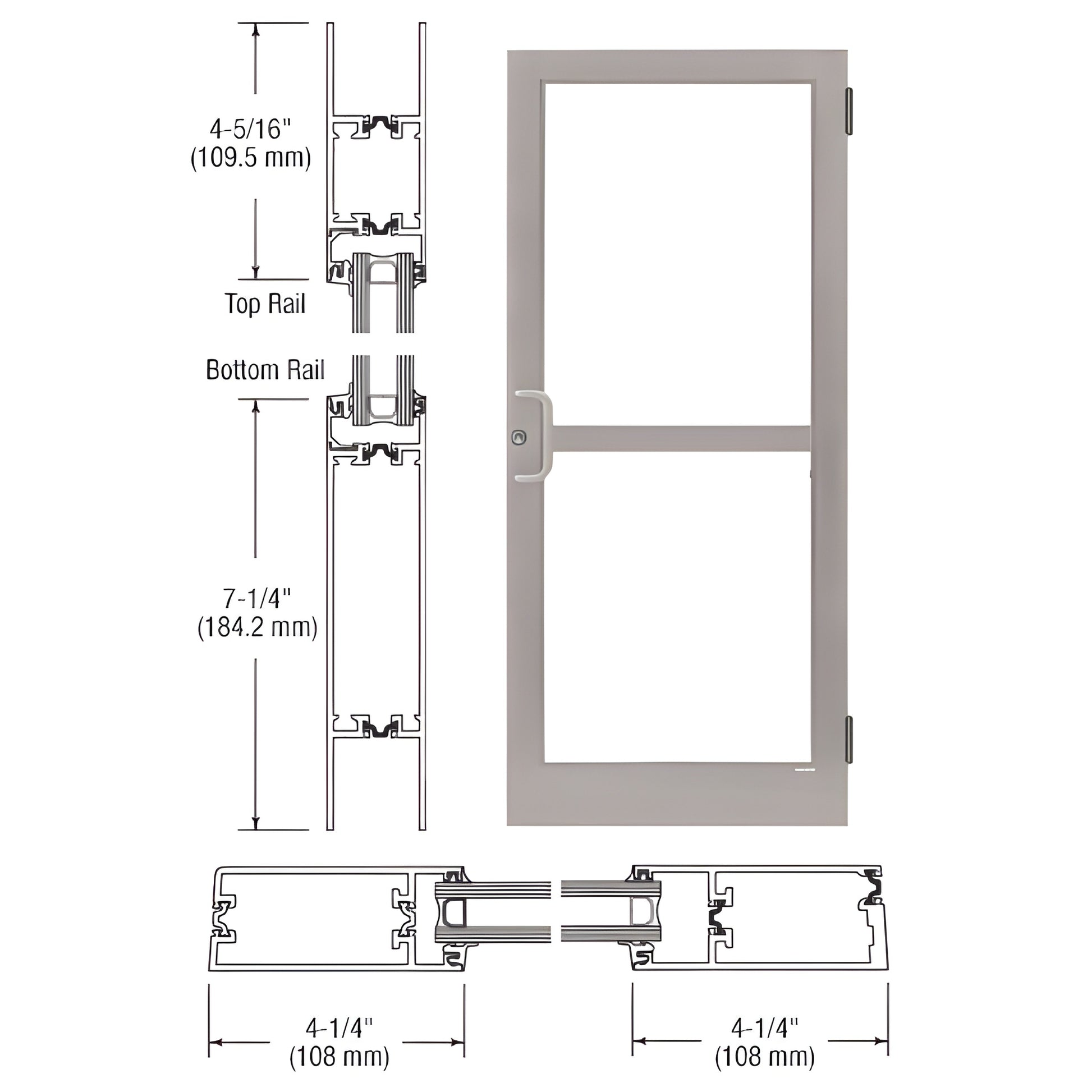

This CRL Custom Medium Stile Entrance Door (SKU 1Z41552) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Standard design includes stiles for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Door is prepped for custom hardware such as concealed vertical rod panic devices and surface-mounted panic pulls.
Customer must install included protruding hardware (handles, pivots, etc.) supplied separately in a boxed package to prevent transit damage. Note: door widths less than 36" (914 mm) may not meet A.D.A. inspection requirements.
Highlights: medium stile entrance door for commercial storefronts, compatible with 1" insulated glass units, concealed vertical rod panic hardware ready, ADA-compliant bottom rail option available. Reference SKU 1Z41552 when ordering or contacting CRL Customer Service.
Call to action: Contact CRL Customer Service to confirm weight, request custom hardware prep, or place an order.
Specifications
BIM Objects - rvt
