CRL-U.S. Aluminum White KYNAR 550 Wide-Stile Geared-Hinge Entry Door

• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept optional hardware applications
• Includes standard push/pull hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

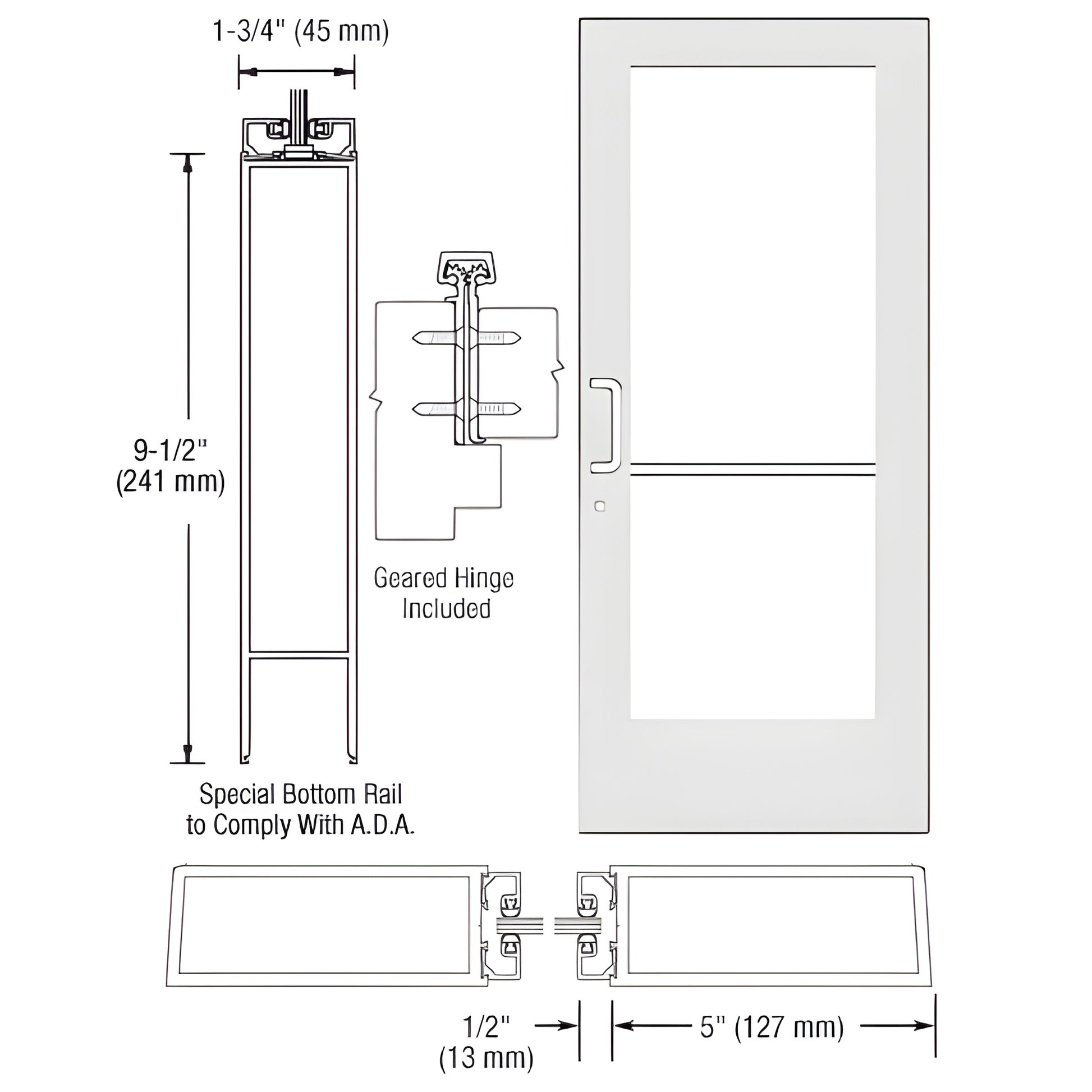

This CRL Custom Wide Stile Entrance Door (SKU: CD51852) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed as a custom wide stile entrance door for commercial storefronts and accessibility-conscious projects, it ships ready for Gear Hinge hardware and includes glass stops for 1/4" tempered glass (glass supplied by others). The door is prepared for a wide range of optional hardware applications for storefront, office entry, and institutional installations.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed on site to prevent transit damage. Door widths under 36" (914 mm) may not meet ADA inspection requirements.

Call or order now to specify custom hardware and glazing options for this commercial custom wide stile entrance door.
