CRL-U.S. Aluminum White KYNAR® Blast-Resistant Single Door Butt Hinge
CRL-U.S. Aluminum White KYNAR® Blast-Resistant Single Door Butt Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BR61552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed‑alike cylinders (SKU: BR61552)
- Accommodates 1-5/16" (33 mm) impact resistant glazing to meet project specifications (glass not included)
- 7-5/16" (186 mm) bottom rail
- Custom fabricated to accept optional hardware applications

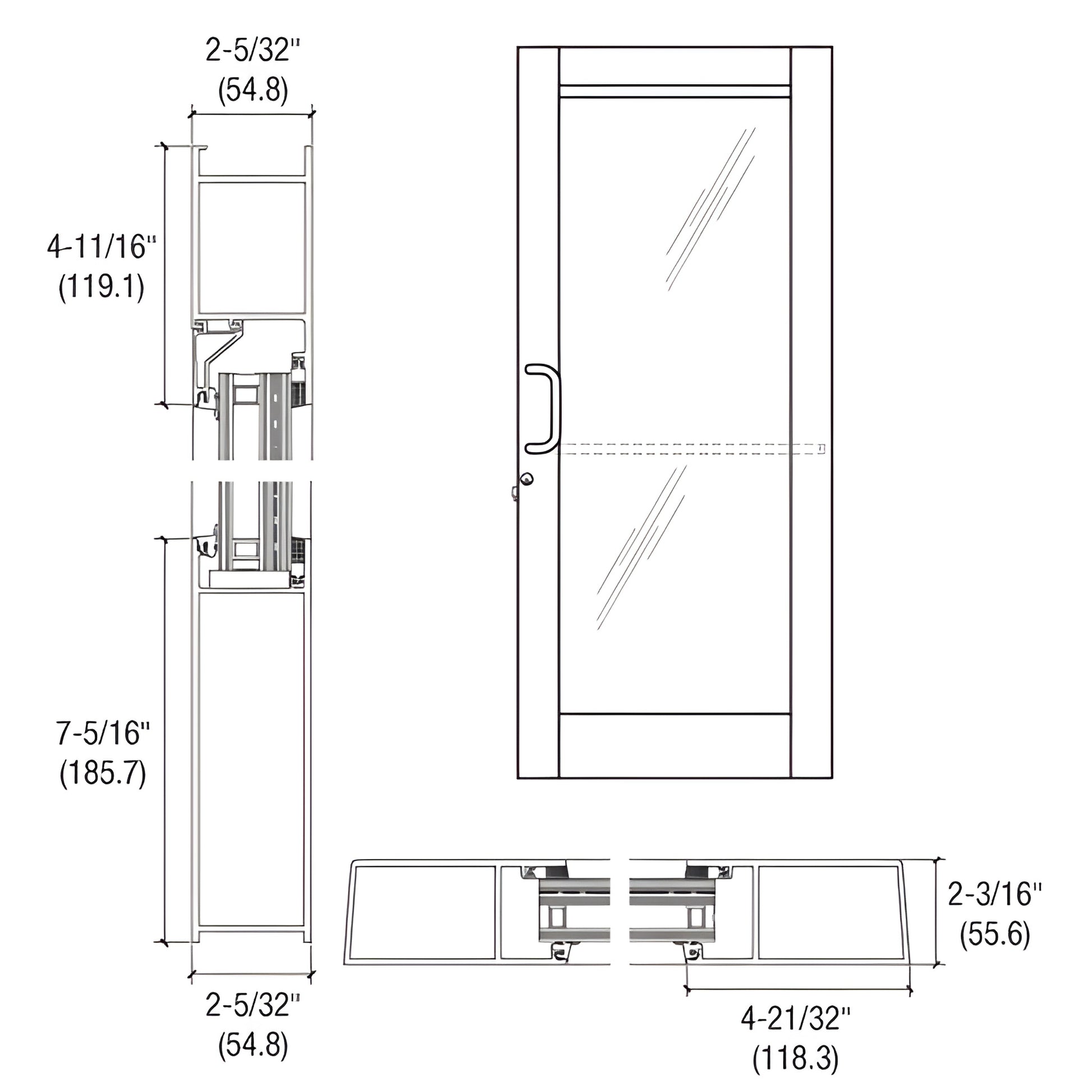

CRL Custom Blast Resistant Entrance Door—built for security and field customization. Construction features 4-21/32" (118 mm) stiles, a 4-11/16" (119 mm) top rail, and a 7-5/16" (186 mm) bottom rail. Stiles are configured for butt hinge hardware and include glass stops sized for 1/4" (6 mm) tempered glass (by others). Ready for custom fabrication to accept a wide range of optional hardware.
Standard hardware is boxed separately to prevent transit damage; customer must install protruding elements (handles, pivots, etc.) after delivery. Note: door widths under 36" (914 mm) may not comply with ADA inspection requirements.
For specification assistance or to request custom fabrication options for this blast resistant entrance door (BR61552), contact CRL Customer Service today.
