CRL-U.S. Aluminum IT451 White Kynar 1ft Transom Frame with Butt Hinge

CRL-U.S. Aluminum IT451 White Kynar 1ft Transom Frame with Butt Hinge

$2,394.02 CAD
$2,394.02 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 1B91452
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

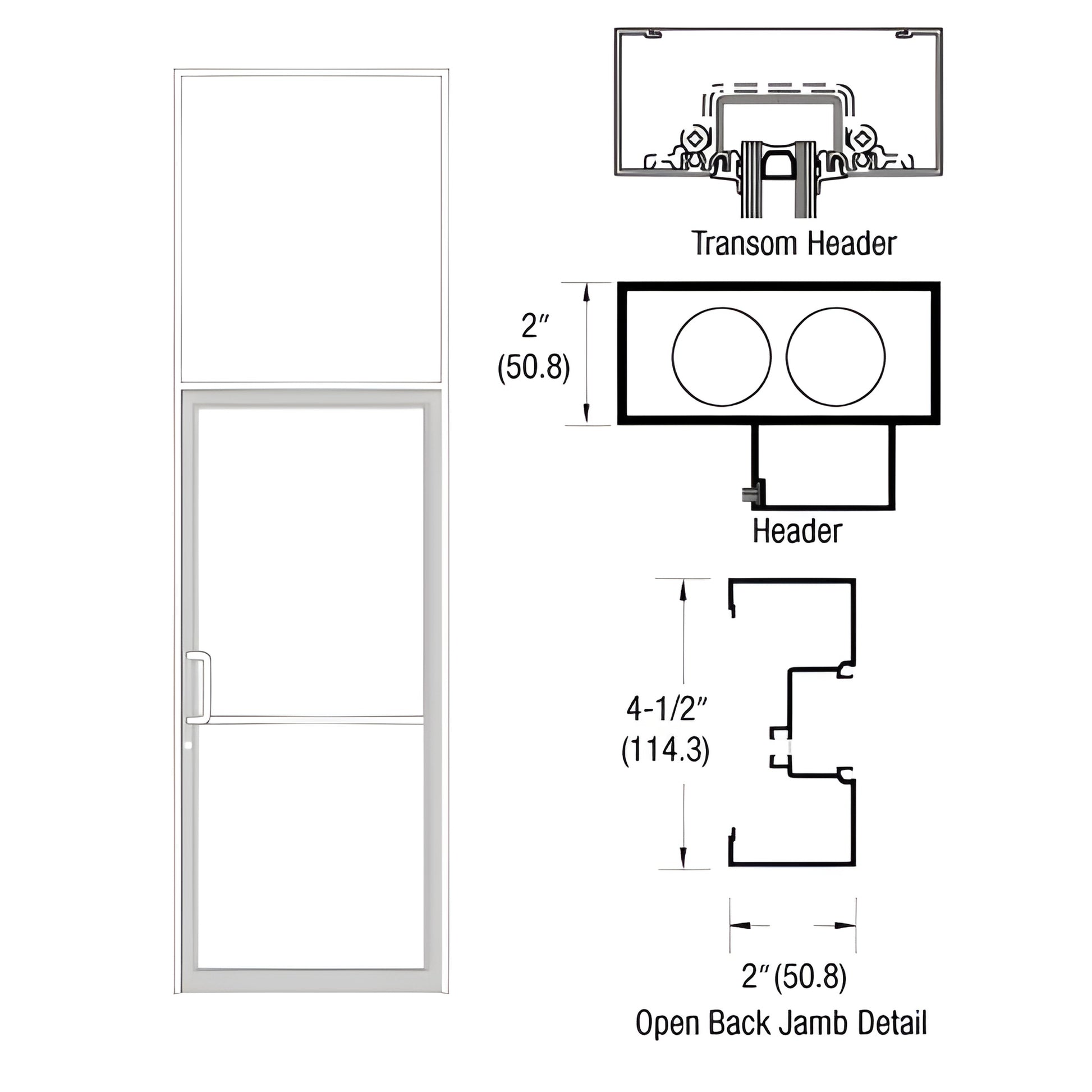

  • 2" x 4-1/2" (50.8 x 114.3 mm) transom frame with open back jambs — ideal for retrofit and new-construction openings
  • Custom size available to match non-standard openings (SKU: 1B91452)
  • Aluminum threshold included for a complete, weather-resistant sill solution

Complete Frame is configured to accept a base 36" x 84" butt-hinge 1-3/4" door and supports a 105º overhead concealed closer with offset arm. Constructed with 1T442 open back jambs and a 1450 header, the frame includes DS051 door stops for 1-3/4" doors, full weatherstrip, standard hardware and hardware preparations for fast, on-site installation.

All fasteners for frame assembly, standard hardware, and hardware fabrication are included; customer supplies fasteners to attach the frame to the opening. Note: frame widths under 40" (1.0 m) may not meet A.D.A. inspection requirements. This transom frame with open back jambs is suited for commercial doors, storefronts, and ADA-aware projects.

Most shipping weights are approximate and have not been verified. If exact shipping weight or freight pricing is required to complete your order, contact CRL Customer Service before submitting your order. Product images are actual or close representations; color may vary by monitor and video card settings.

Need a quote or help confirming fit for your opening? Contact CRL Customer Service to order SKU: 1B91452 or request exact shipping weight.
