CRL-U.S. Aluminum White KYNAR® Paint Custom Size Series IT451 Open Back Butt Hinge Up and Over Frame Complete (1F)

Product Details

• Custom Size

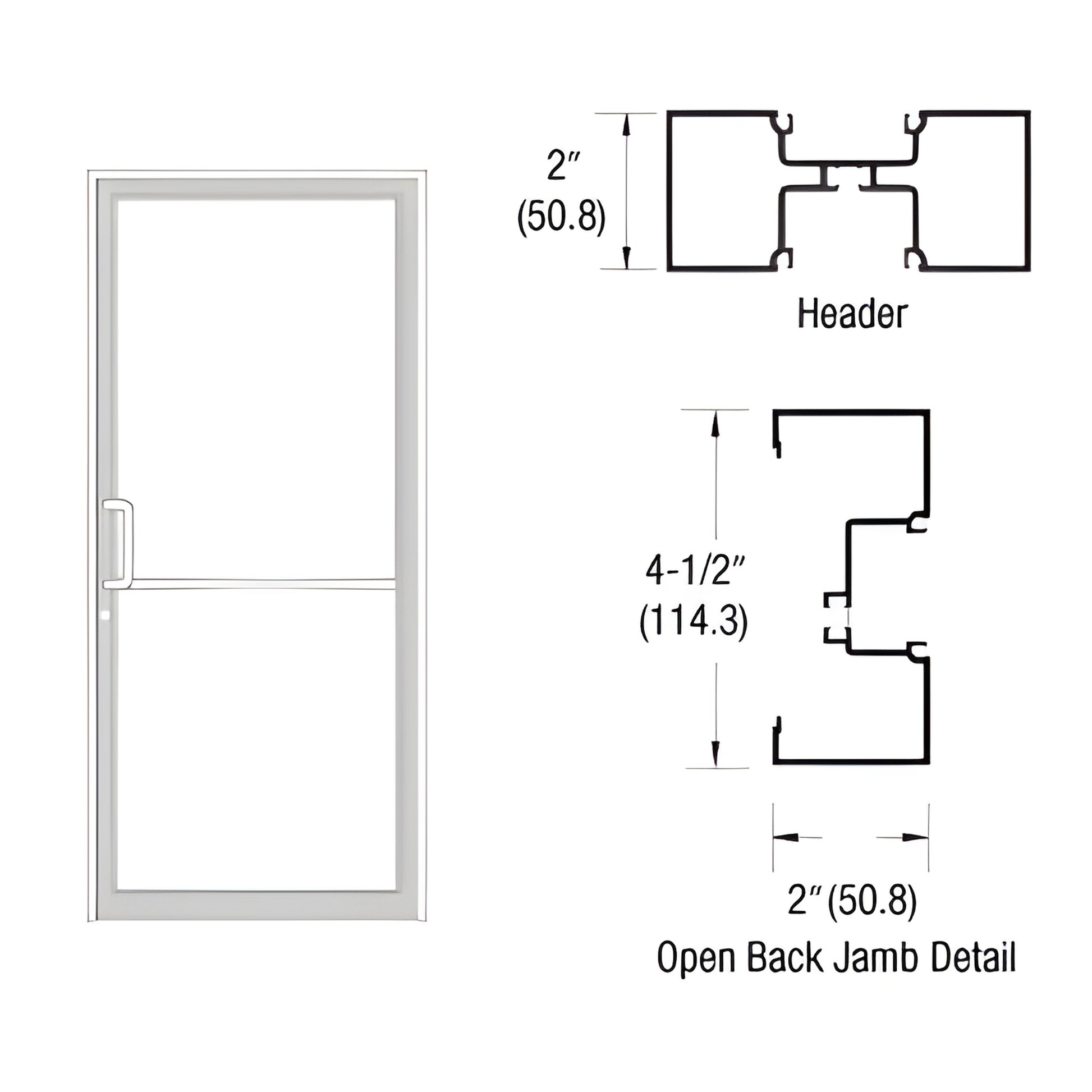

• 2" x 4-1/2" (50.8 x 114.3 mm) Up and Over Frame with Open Back Jambs
• Aluminum Threshold is Included

Complete Frame is built to accommodate a base 36" x 84" Butt Hinge 1-3/4" Door for a Surface Mount Closer, constructed using 1T442 Open Back Jambs with 1T422 Header. DS051 Door Stops for 1-3/4" door, weatherstrip, standard hardware, and hardware preparations are included.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening. Frame widths less than 40" (1.0 m) may not pass A.D.A. Inspection.
