CRL-U.S. Aluminum IG500 Transom Door Frame, White KYNAR, Geared Hinge
CRL-U.S. Aluminum IG500 Transom Door Frame, White KYNAR, Geared Hinge
Regular price
$3,207.68 CAD
Regular price
Sale price
$3,207.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

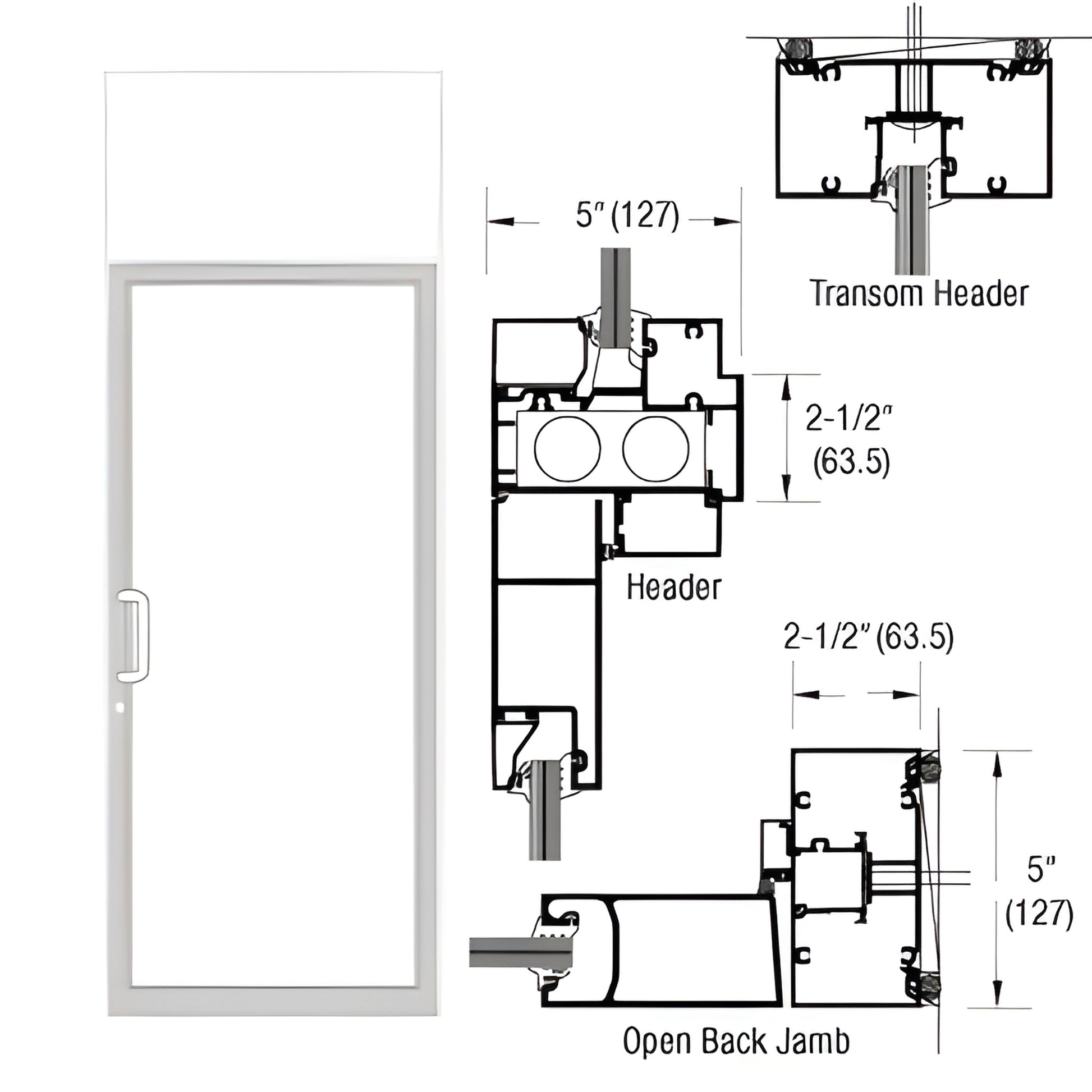

- 2-1/2" x 5" (63.5 x 127 mm) Transom Door Frame
- Prep for Overhead Concealed Closer and CVR Panic Strike
- Includes TH811 Air Resistant Threshold
- Optional Air/Water Resistant Threshold available
Custom Transom Door Frame designed for a single geared hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs, IG577/IG563/IG200 header for overhead concealed closer, IG526/1G100 transom header, and TH811 air threshold. Hardware preparations include overhead concealed closer prep and standard CVR panic strike—ideal for high-performance, code-compliant hurricane impact door installations.
SKU: 0F61952
For pricing, lead times, or to request exact shipping weight, contact CRL Customer Service or request a quote today.
