CRL-U.S. Aluminum IG500 White KYNAR® Up/Over Frame for Geared Hinges
CRL-U.S. Aluminum IG500 White KYNAR® Up/Over Frame for Geared Hinges
Regular price
$2,548.98 CAD
Regular price
Sale price
$2,548.98 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F41952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

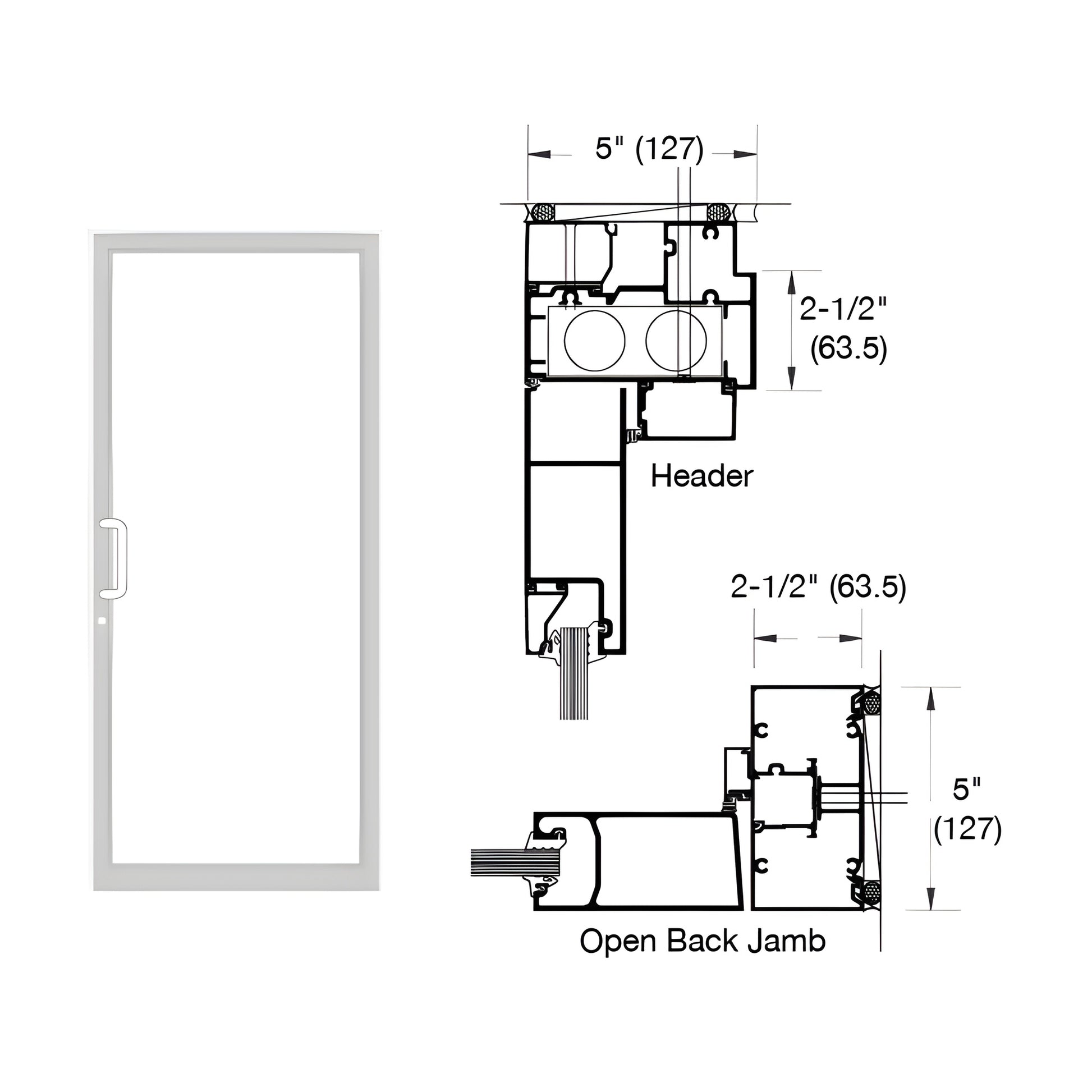

- 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame
- Prep for Overhead Concealed Closer
- Prep for Deadbolt Strike
- Includes TH811 Air Resistant Threshold; Optional Air/Water Resistant Threshold available
This Custom Up/Over Door Frame (SKU: 0F41952) is engineered for a Single Geared Hinged Hurricane Impact Door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs and IG577/IG563/IG200 header to accommodate an overhead concealed closer. Hardware preparations include overhead concealed closer and standard deadbolt strike. Designed for hurricane impact door installations and coastal construction where high-performance, impact-rated door frames are required.
When installing hurricane impact products, always refer to FPA Guidelines.
Key differentiators: purpose-built for hurricane impact doors, laminated glazing compatibility, overhead concealed closer prep, and an air-resistant TH811 threshold for enhanced weather protection.
Order this Up/Over hurricane impact door frame (SKU: 0F41952) or contact CRL for a quote and technical support.
Specifications
