CRL-U.S. Aluminum 36x84 White KYNAR® Single Gear-Hinge Entrance Door

• Includes Standard Panic Pull, Hanging Hardware, Concealed Vertical Rod Panic Hardware, and One Cylinder
• Accommodates 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
• 7-1/4" (184 mm) Bottom Rail
• 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept optional hardware applications

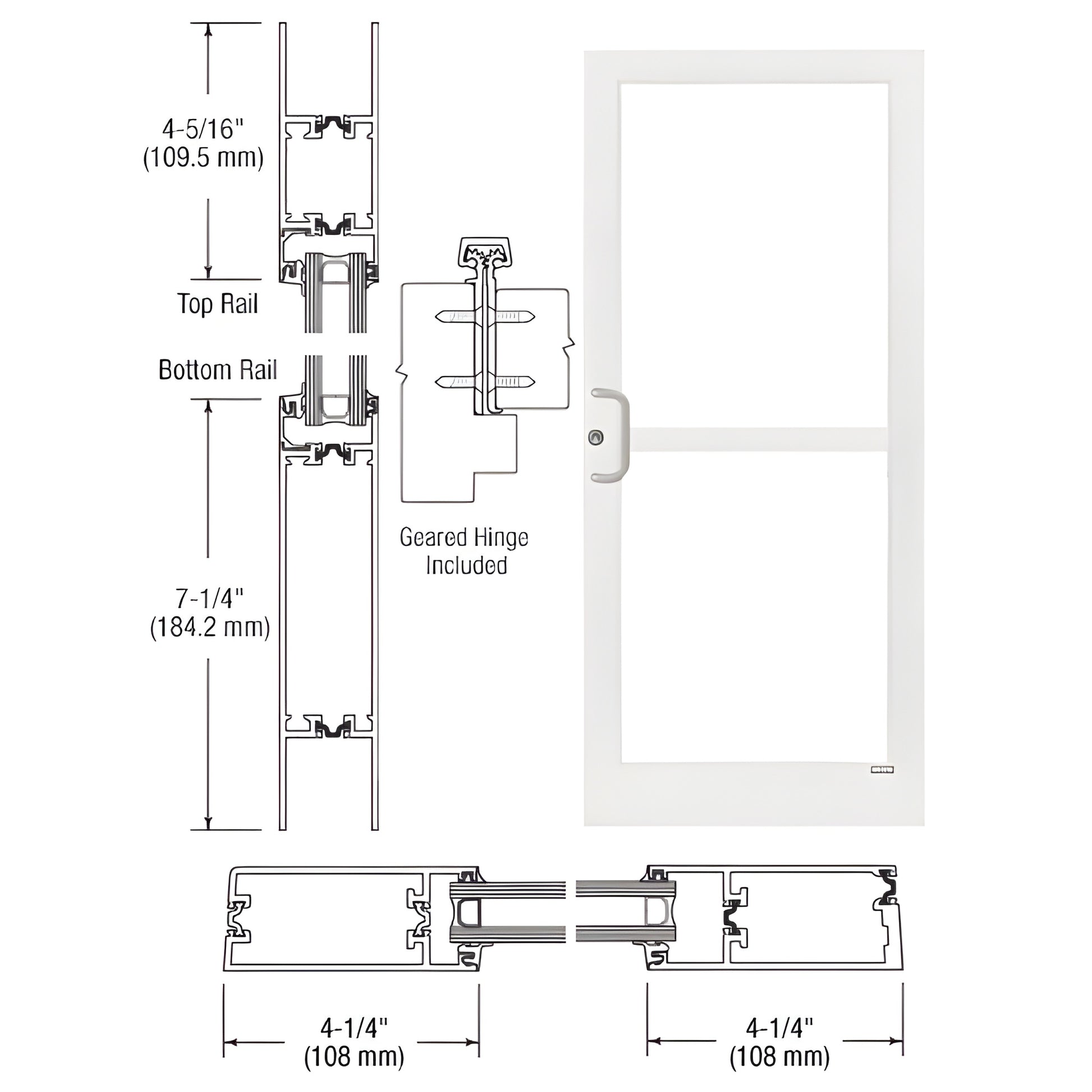

CRL Custom Medium Stile Entrance Door (SKU: 1Z41852) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Built for commercial storefronts, this medium-stile entrance door ships ready for Gear Hinge hardware and includes glass stops sized for 1/4" (6 mm) tempered glass (glass sold separately). Custom fabrication options support a wide range of optional hardware, including concealed vertical rod panic hardware for secure egress.

Designed for commercial use: accepts 1" insulated glazing units for improved thermal performance, and offers an optional 10" bottom rail for A.D.A. and Title 21 compliance. Note: Customer must install protruding hardware (handles, pivots, etc.) supplied separately in a protected box. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Differentiators: custom-fabricated medium stile entrance door, concealed vertical rod panic hardware, accepts 1" insulated glazing—ideal for commercial storefront and entrance door retrofit projects.

Order SKU 1Z41852 or contact CRL for custom hardware options and lead times.
