CRL-U.S. Black Anodized Geared Hinge Pair for Panic Entrance Doors
CRL-U.S. Black Anodized Geared Hinge Pair for Panic Entrance Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ42922
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with standard concealed vertical-rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating glass unit available (glass not included)

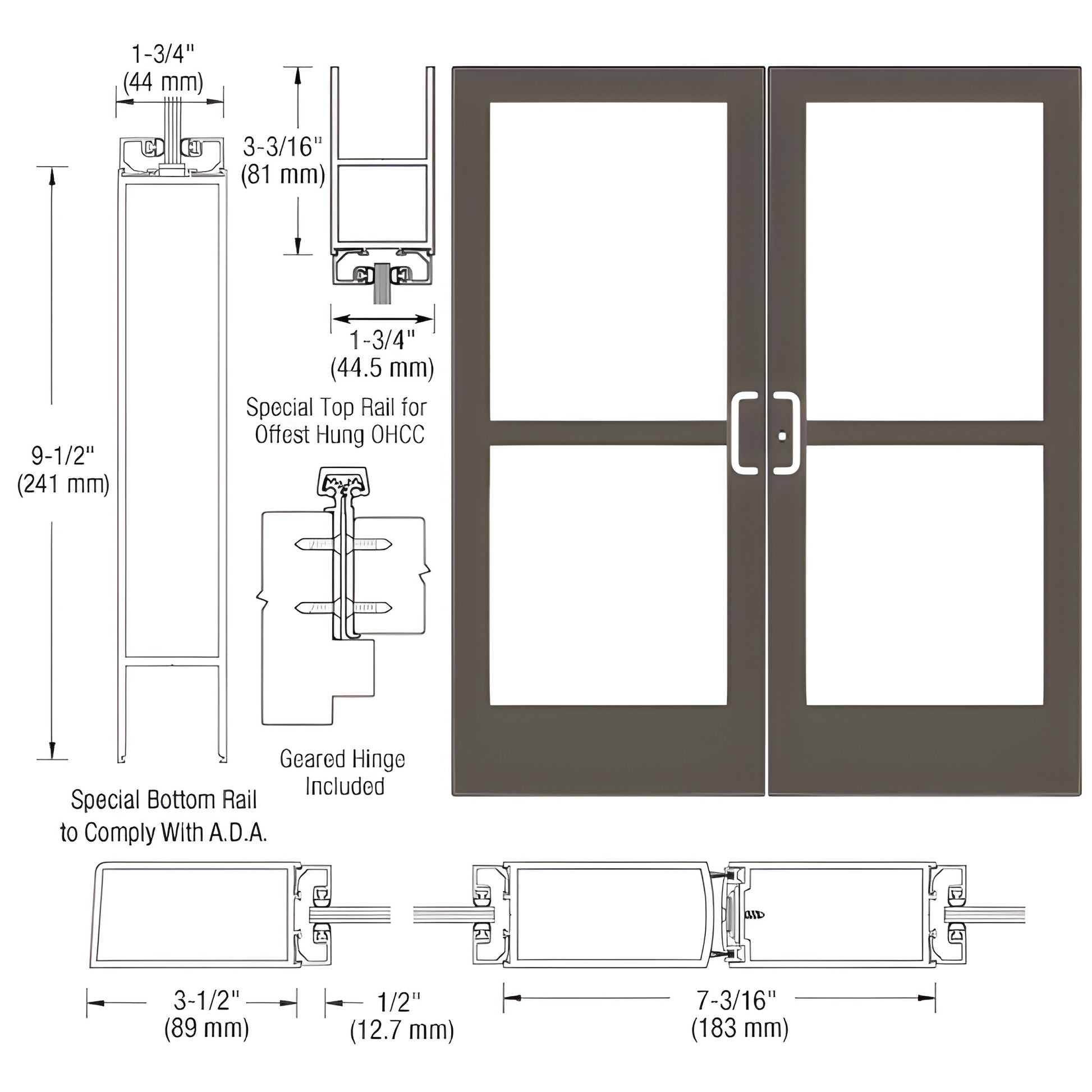

This CRL Custom Medium Stile Entrance Door (SKU: CZ42922) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial storefronts, it ships with stiles prepared for Gear Hinge hardware and glass stops for 1/4" tempered glass (glass by others). Custom fabrication options make this door ideal for storefront and commercial entry applications requiring concealed vertical-rod panic hardware, protruding handles, pivots, and other optional hardware configurations.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.
Order or request a custom quote for SKU CZ42922 today.
Specifications
BIM Objects - rvt
