CRL-U.S. S250 Clear Anodized Narrow Stile Butt Hinge Closer-Ready

• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accepted (glass not included)
• 9-1/2" (241 mm) bottom rail available to meet A.D.A. and Title 24 requirements
• Custom fabricated to accept a wide range of optional hardware applications for commercial storefronts
• Includes standard push/pull and hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders

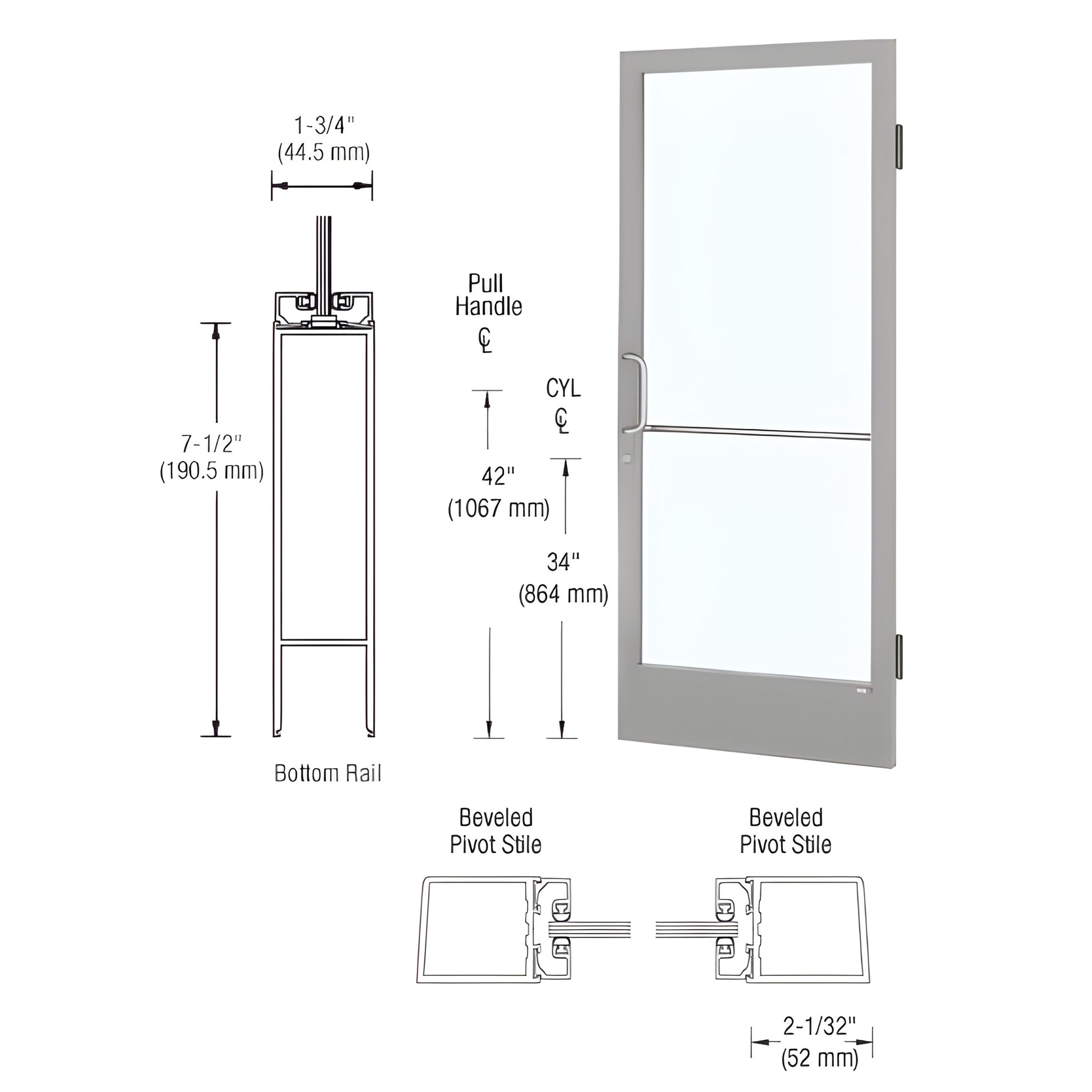

This Custom Narrow Stile Entrance Door (SKU: HE21511) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Stiles are prepared for butt hinge hardware and include glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is designed for custom fabrication to accommodate optional commercial hardware accessories.

Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection.

Highlights: narrow-stile commercial entrance door, tempered glass compatible, ADA/Title 24 bottom rail option, factory-ready for custom hardware, included MS hookbolt lock and keyed‑alike cylinders.

Order this commercial narrow stile entrance door (SKU HE21511) or contact us for custom hardware and glazing options.
