CRL-U.S. S400 Entrance Door - Black Anodized, Panic & Surface Closer
CRL-U.S. S400 Entrance Door - Black Anodized, Panic & Surface Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HZ41522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 7-1/2" (191 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
- Accommodates 1/4" (6 mm) tempered glass with option for 1" (25 mm) tempered insulating unit (glass not included)

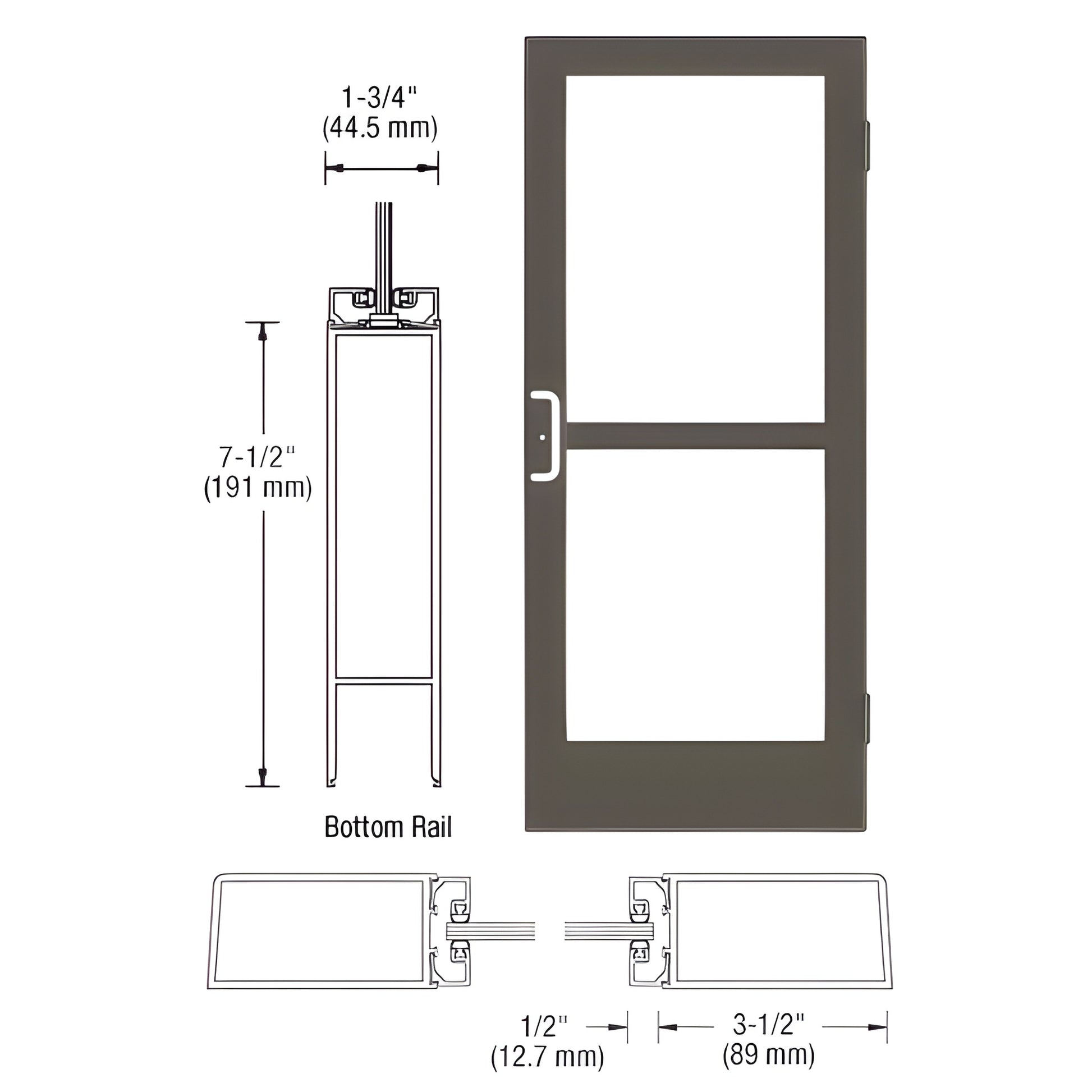

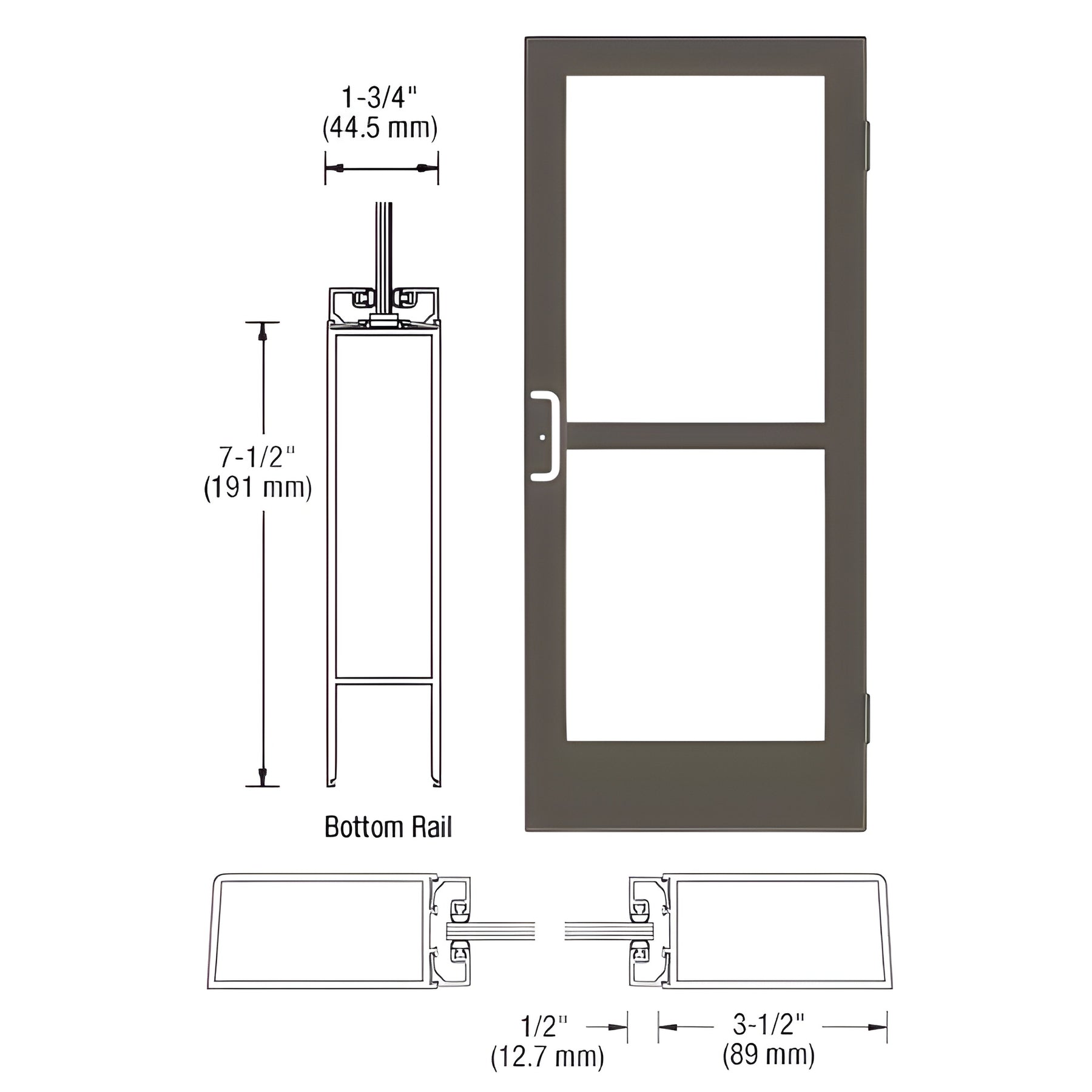

This Custom Medium Stile Entrance Door features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial and retail storefronts, it ships with stiles prepped for butt hinges and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accommodate a wide range of optional hardware, including concealed vertical rod panic hardware for secure egress and a standard panic pull for code-compliant operation.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
SKU: HZ41522 — For a custom quote or to confirm hardware compatibility, contact us today.
Specifications
BIM Objects - rvt
