CRL-U.S. S550 Offset Pivot Entrance Door - Black Anodized

• Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
• Accommodates 1/4” (6 mm) tempered glass; optional 1” (25 mm) tempered insulating unit can be fitted (glass not included)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept a wide range of optional hardware applications

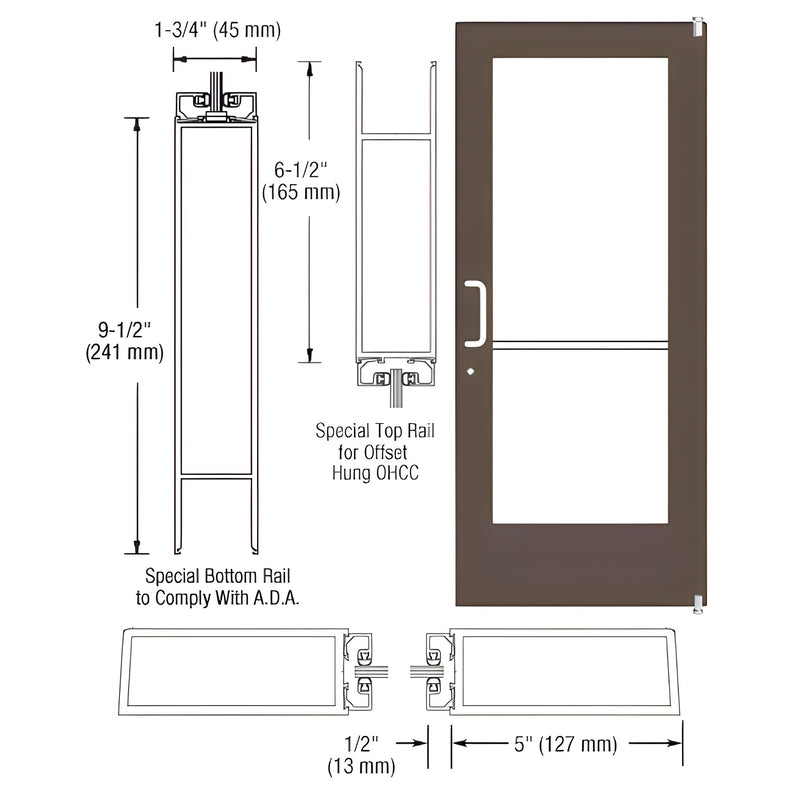

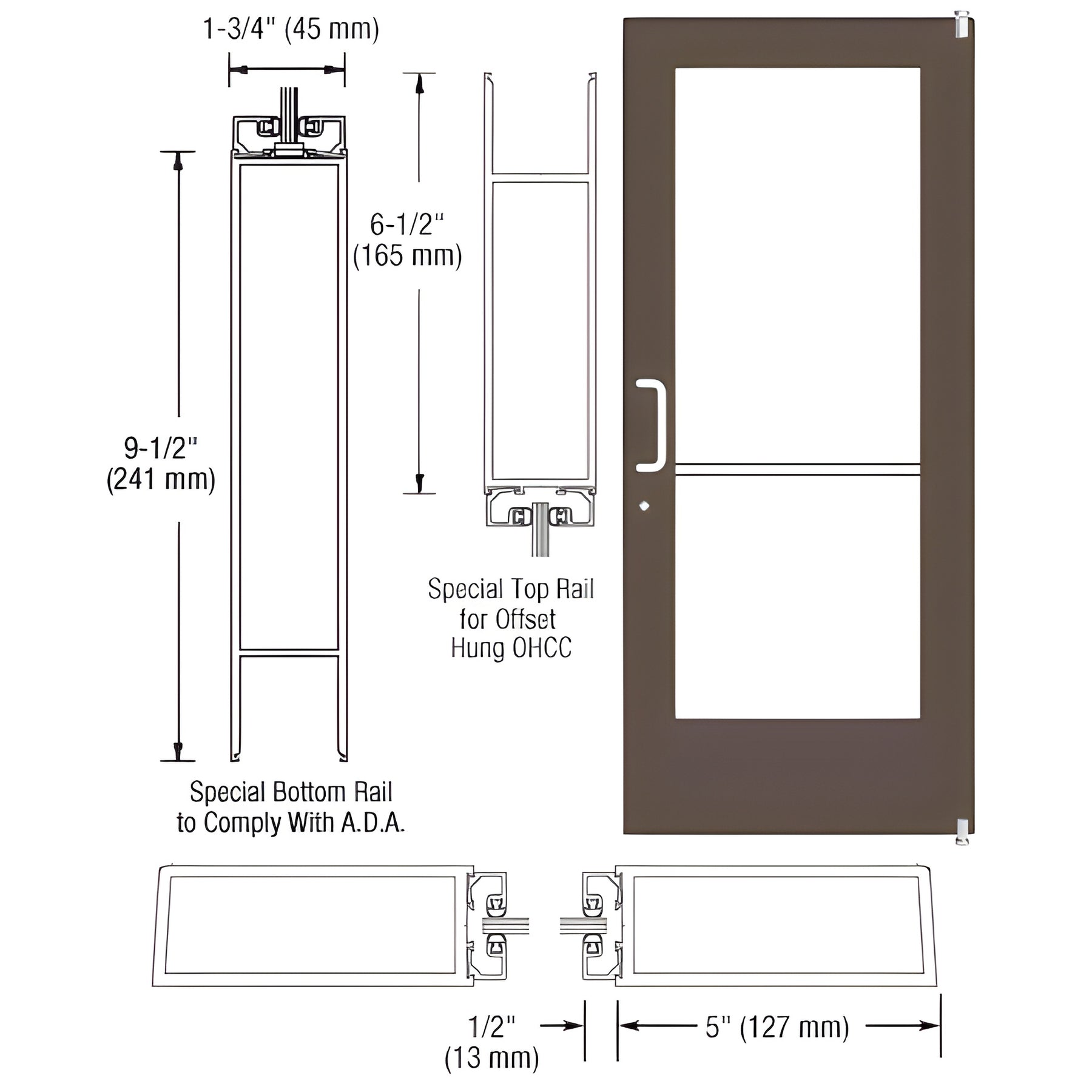

This Custom Wide Stile Entrance Door (SKU: DE51122) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial use, it includes stiles prepared for Offset Pivot hardware and glass stops for 1/4” (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to accommodate optional hardware and specialty commercial door configurations.

Note: protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet ADA inspection requirements.

Looking for a custom commercial entrance door that accepts insulated glass and ADA-compliant bottom rails? Contact our sales team to configure SKU DE51122 for your project.
