CRL-U.S. Series 250 Black Geared Hinge Narrow Stile for Panic Doors

• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
• Accepts 1/4" (6 mm) tempered glass (by others) with an option to accommodate 1" (25 mm) tempered insulating unit glass — glass not included
• 9-1/2" (241 mm) ADA-compliant bottom rail for threshold clearance
• Custom-fabricated to accept optional hardware applications and ready for Gear Hinge installation

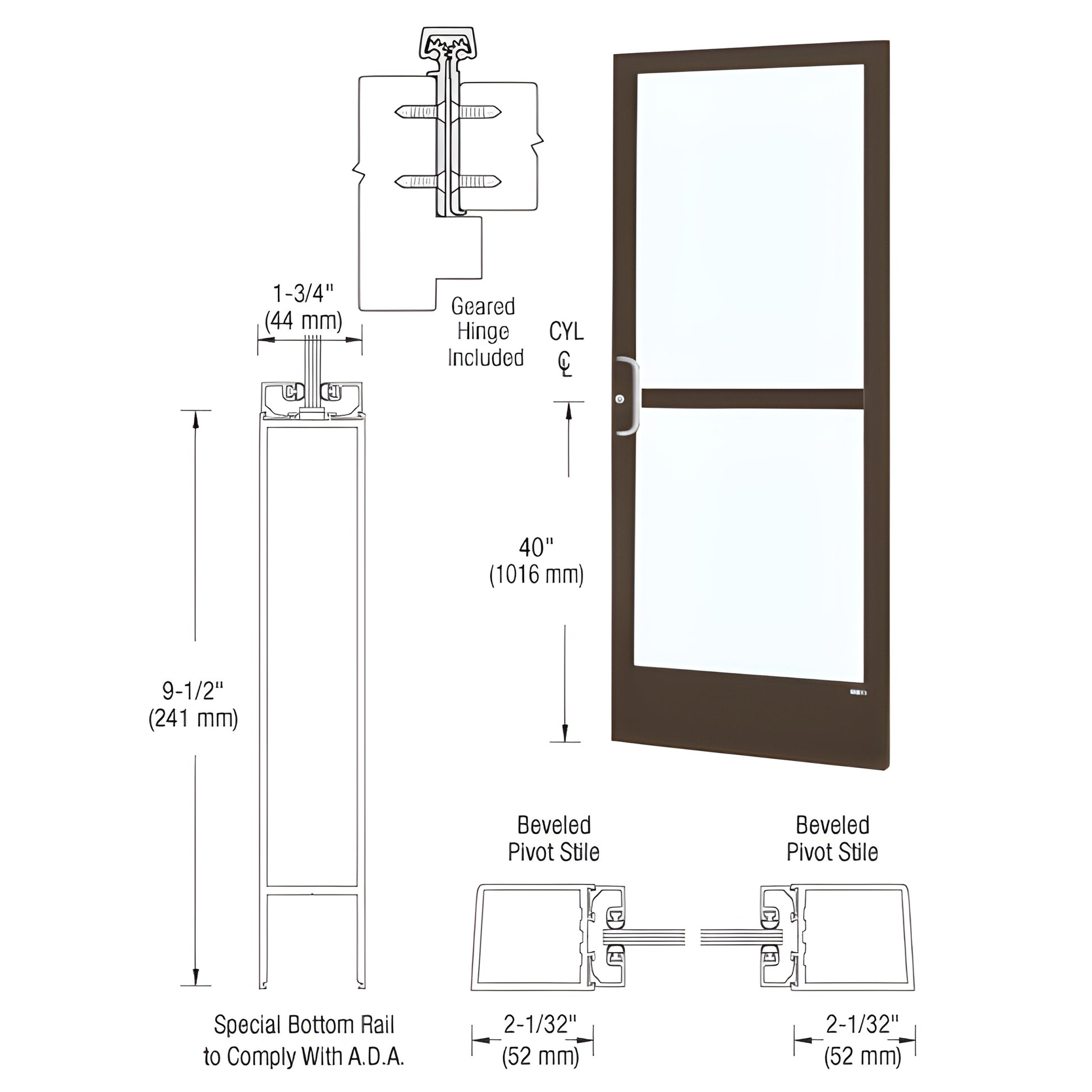

This CRL Custom Narrow Stile Entrance Door (SKU: CZ21822) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard details include stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Designed for custom fabrication to support a wide range of optional hardware, including concealed vertical rod panic hardware — ideal for commercial storefront, retail, and institutional narrow stile entrance door applications.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not pass ADA inspection.

Why choose this door: Narrow stile entrance door engineered for commercial performance, ADA bottom-rail compliance, and flexible hardware compatibility — including concealed vertical rod panic solutions. Order SKU CZ21822 or contact us for custom hardware options and fabrication details.
