CRL-U.S. Series 250 Geared Hinge, Black Anodized, Narrow Stile
CRL-U.S. Series 250 Geared Hinge, Black Anodized, Narrow Stile
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE21922
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Custom-fabricated to accept a wide range of optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements

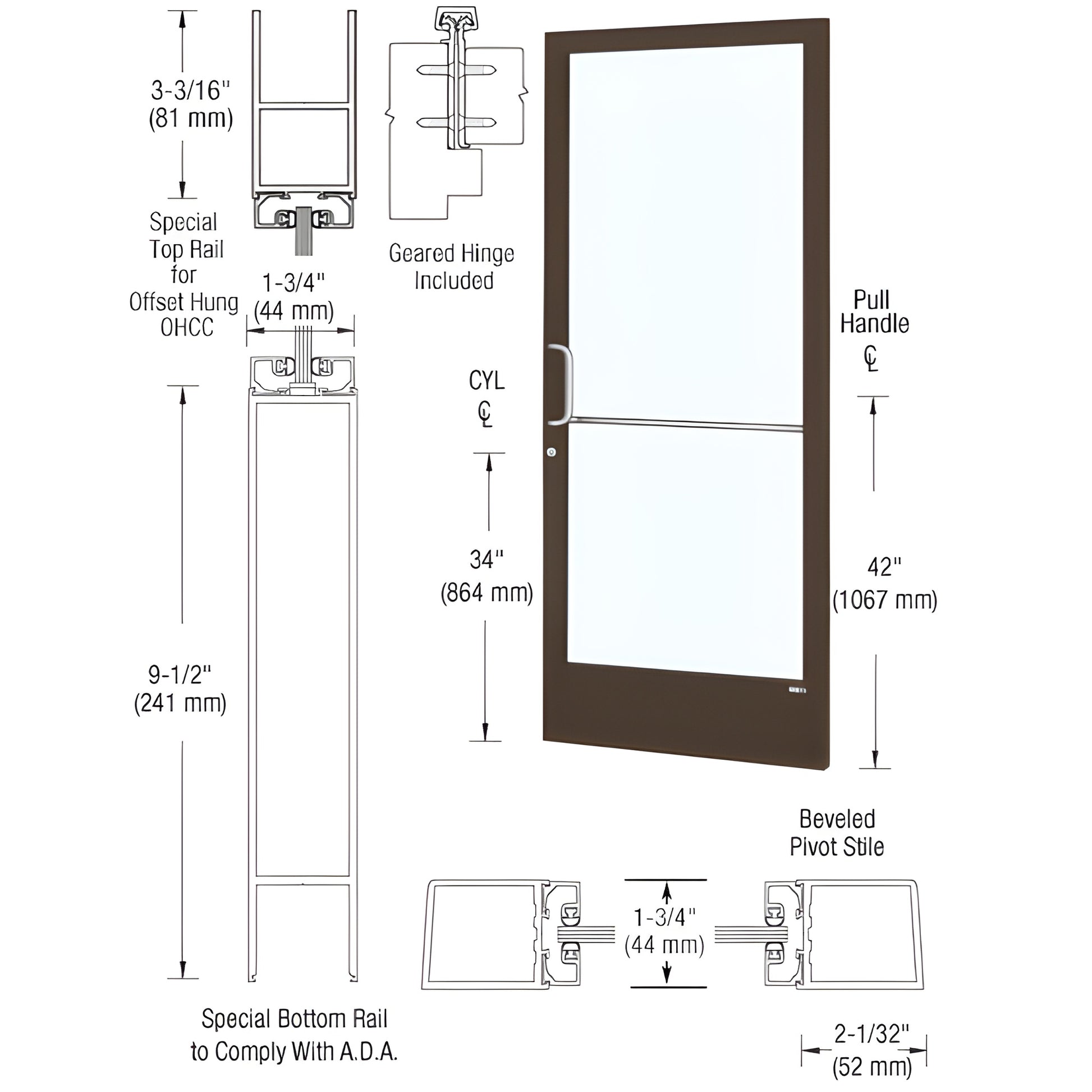

This Custom Narrow Stile Entrance Door (SKU: DE21922) features 2" (51 mm) narrow stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard preparation includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Built for commercial entry use and ready for custom fabrication to accommodate optional commercial door hardware.
Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet ADA inspection criteria.
