CRL-U.S. Series 250 Narrow-Stile Gear Hinge Pair for Door Closers
CRL-U.S. Series 250 Narrow-Stile Gear Hinge Pair for Door Closers
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR22822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes both Active and Inactive Leaf with all standard hardware; hardware boxed separately to prevent transit damage
- Fits 1/4" (6 mm) tempered glass; option for 1" (25 mm) tempered insulating unit (glass not included)
- Custom fabricated narrow-stile entrance door — ideal for auto and boat dealership entrances and other commercial storefronts

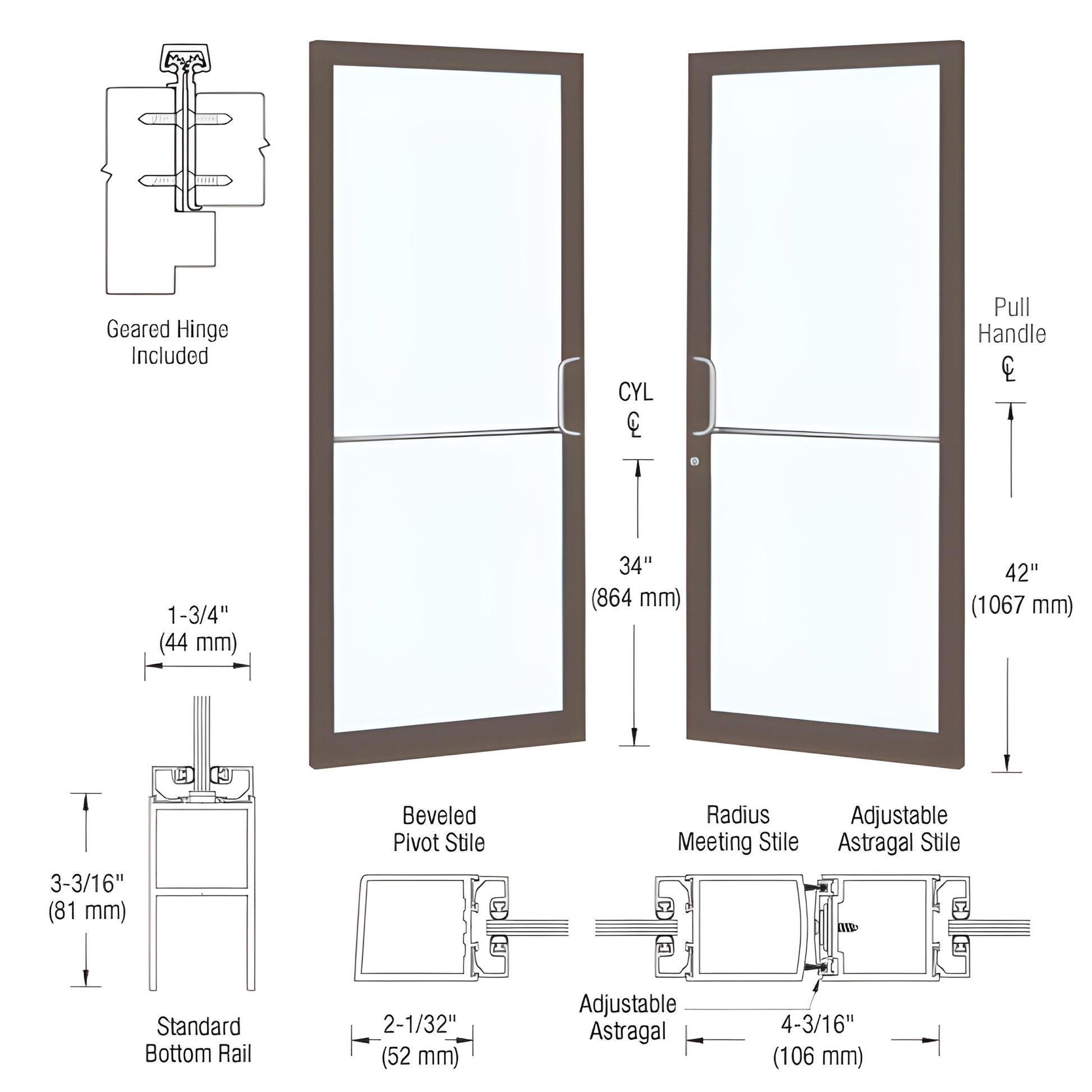

Custom Narrow Stile Entrance Door (SKU: SR22822) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard preparations include stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Door is ready for custom fabrication to accommodate a wide range of optional hardware applications and commercial-grade fittings.
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit.
Order SKU SR22822 today to get a tailored narrow-stile entrance door for dealership and commercial storefront applications.
Specifications
BIM Objects - rvt
