CRL-U.S. Series 250 Narrow-Stile Geared Hinge - Black Anodized, Panic

• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
• 9-1/2" (241 mm) bottom rail option to meet A.D.A. and Title 24 applications
• Custom fabricated to accept a wide range of optional hardware applications
• Custom made to your size specifications
• Includes standard panic pull and hanging hardware; panic hardware and one cylinder are ordered and added separately

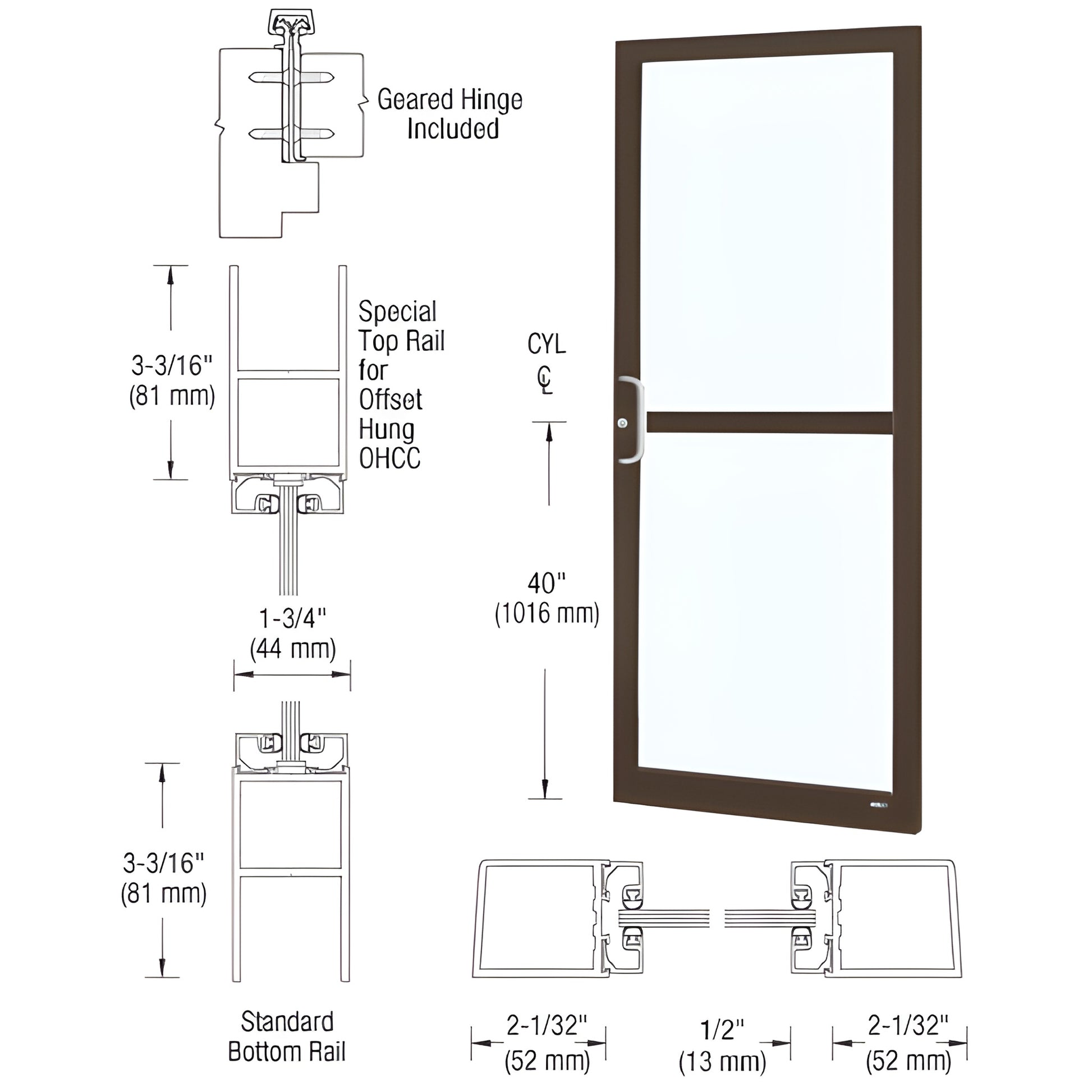

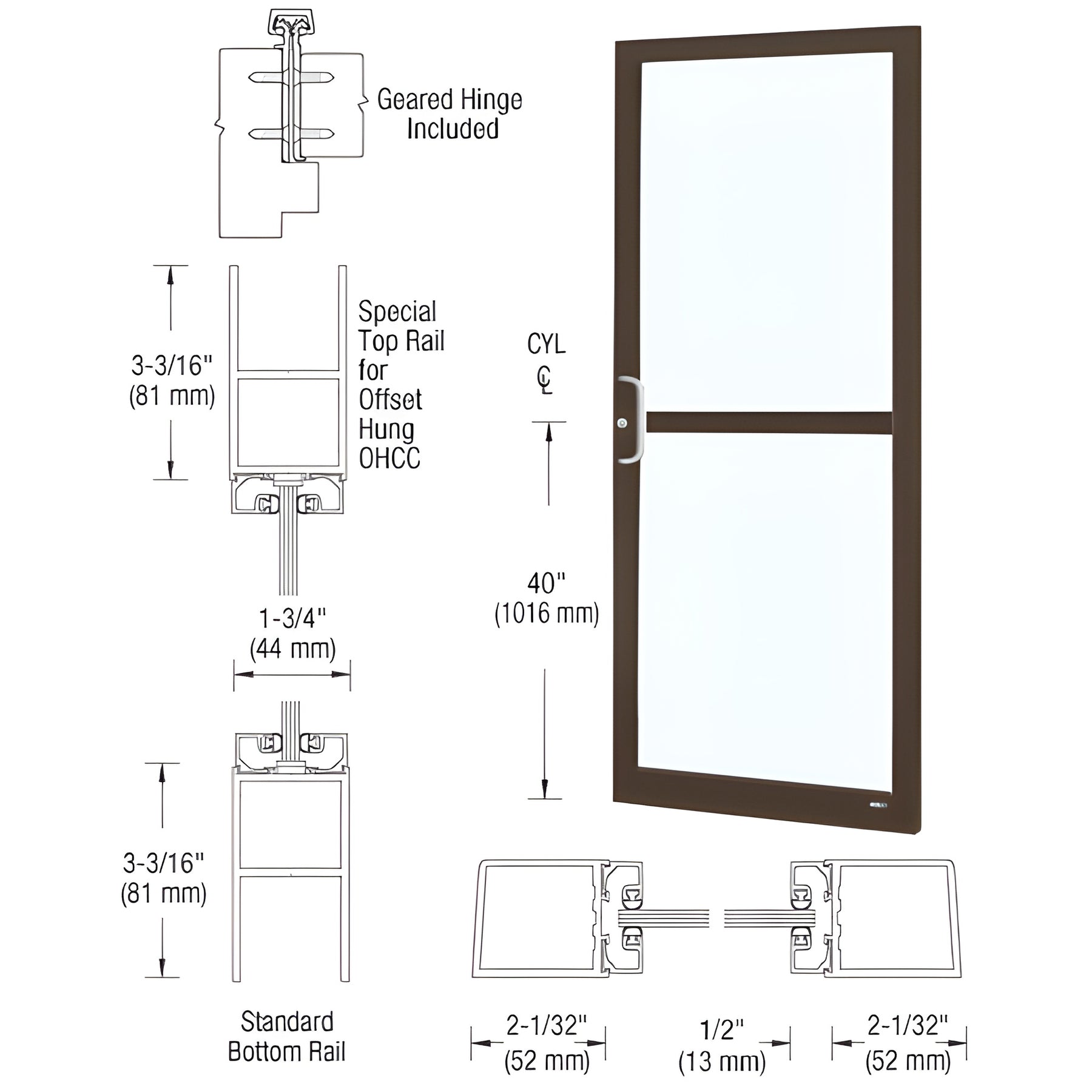

This Custom Narrow Stile Entrance Door (SKU: DZ21922) is built with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard features include stiles for gear hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (provided by others). The door is factory-ready for custom fabrication to accommodate storefront hardware, commercial panic hardware, and other optional fittings.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements. Glass, panic hardware, and cylinders are sold separately.

Order SKU DZ21922 today to get a custom narrow stile entrance door tailored for storefront, commercial, and ADA-ready installations.
