CRL-U.S. Series 400 Aluminum Bronze Geared Hinge Pair, Black Anodized
CRL-U.S. Series 400 Aluminum Bronze Geared Hinge Pair, Black Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE42822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware (handles and pivots boxed separately)
- Accommodates 1/4” (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit — glass not included
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications and Gear Hinge hardware ready

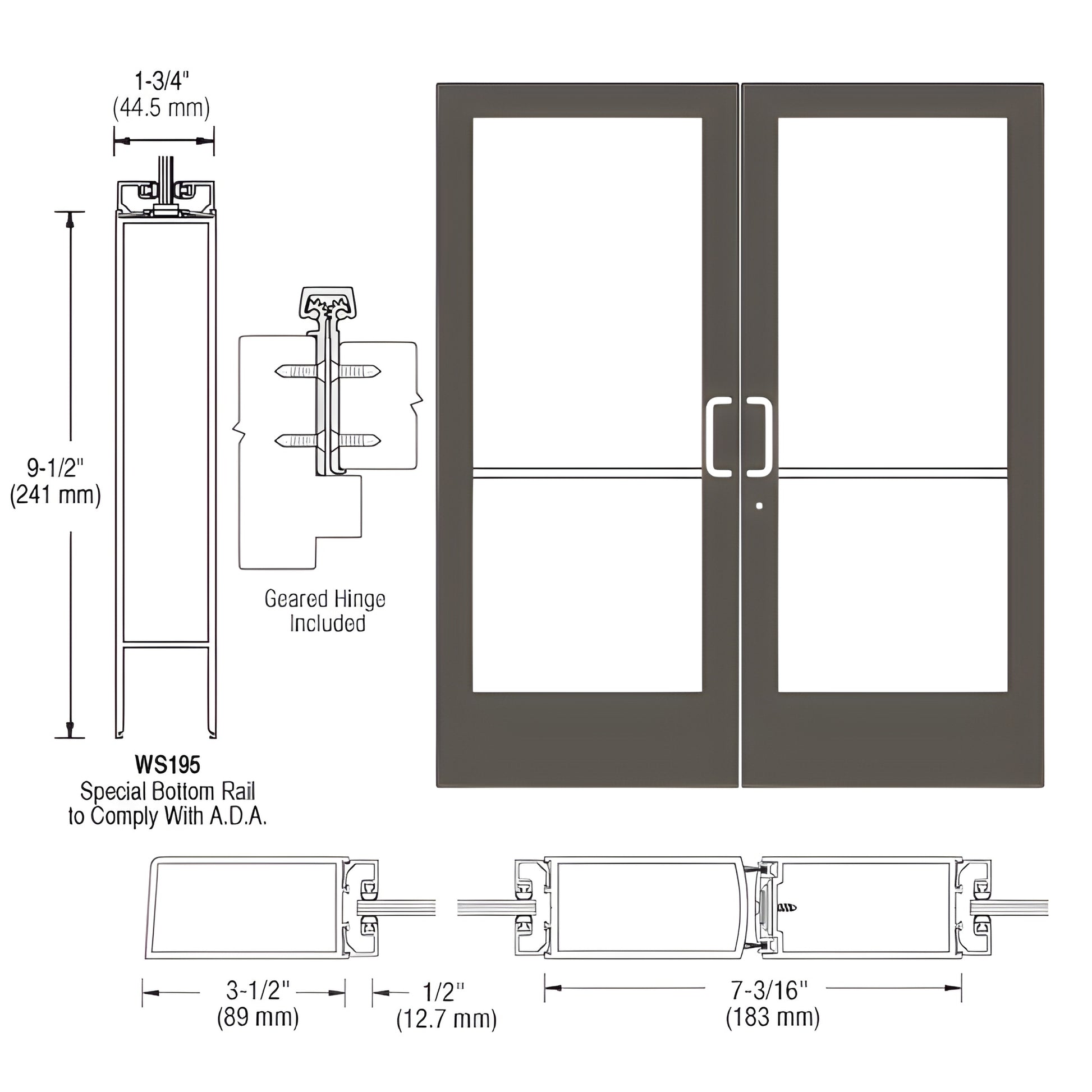

This Custom Medium Stile Entrance Door (SKU: DE42822) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard configuration includes stiles prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is manufactured for custom hardware installation and modular upgrades, making it ideal for commercial entrances requiring tempered glass compatibility and ADA compliance.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Order SKU DE42822 or contact CRL for custom hardware options and lead times.
Specifications
BIM Objects - rvt
