CRL-U.S. Series 400 Black Anodized Bronze Butt Hinge Entry Door Pair
CRL-U.S. Series 400 Black Anodized Bronze Butt Hinge Entry Door Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC42422
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware
- Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications

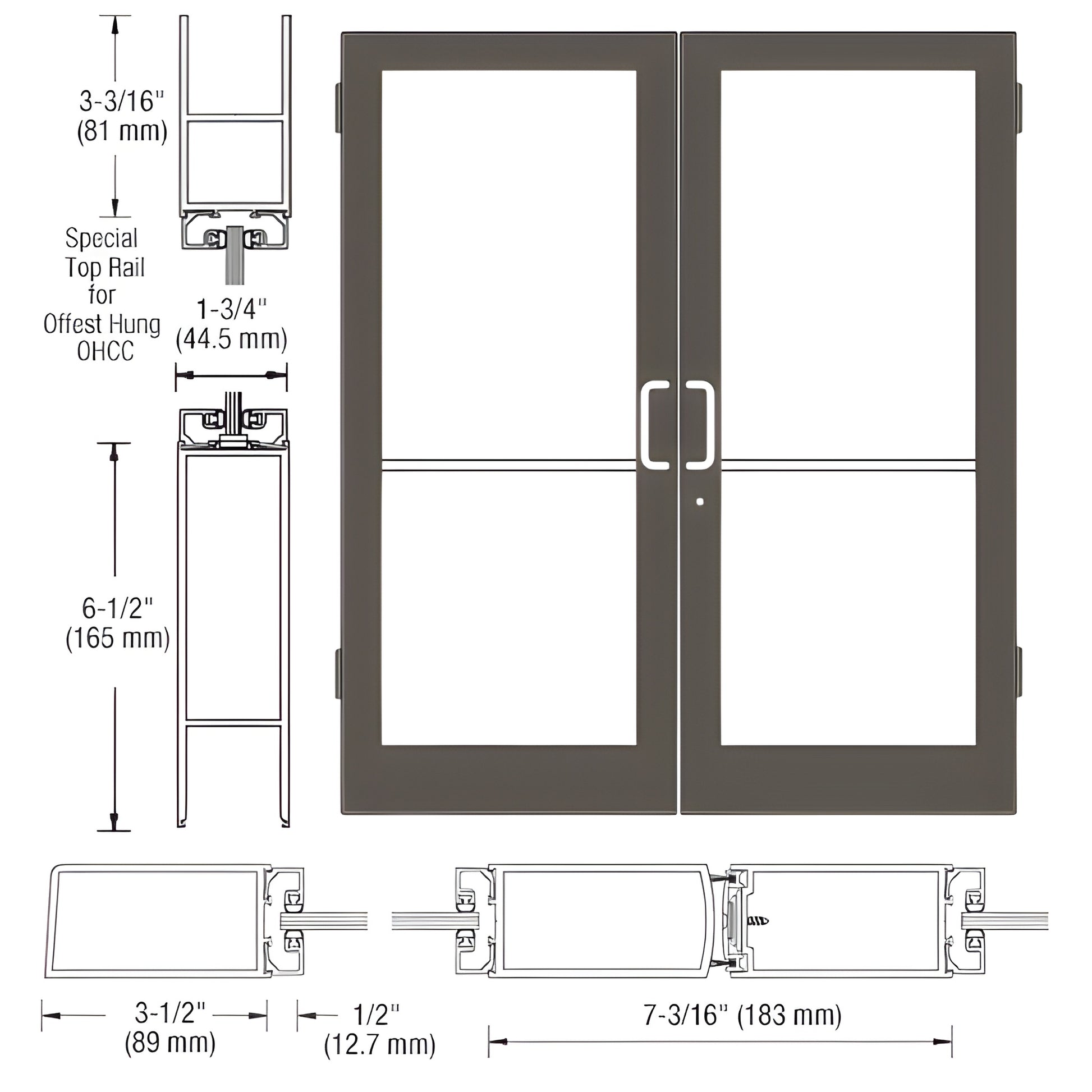

CRL Custom Medium Stile Entrance Door (SKU: DC42422) — Built with 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard features include stiles sized for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Ready for custom fabrication to support optional hardware and storefront applications.
Note: Glass is not included. Customer must install protruding hardware (handles, pivots, etc.) shipped separately in a boxed package to prevent transit damage.
Order the CRL Custom Medium Stile Entrance Door (DC42422) for a durable, customizable tempered glass storefront solution — contact CRL to get started.
Specifications
BIM Objects - rvt
