CRL-U.S. Series 400 Geared Hinge Med-Stile - Surface-Mount Closer
Item# DC41822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1
- 6-1/2" (165 mm) Bottom Rail
- 9-1/4" (235 mm) Bottom Rail available for A.D.A. and Title 24 applications
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

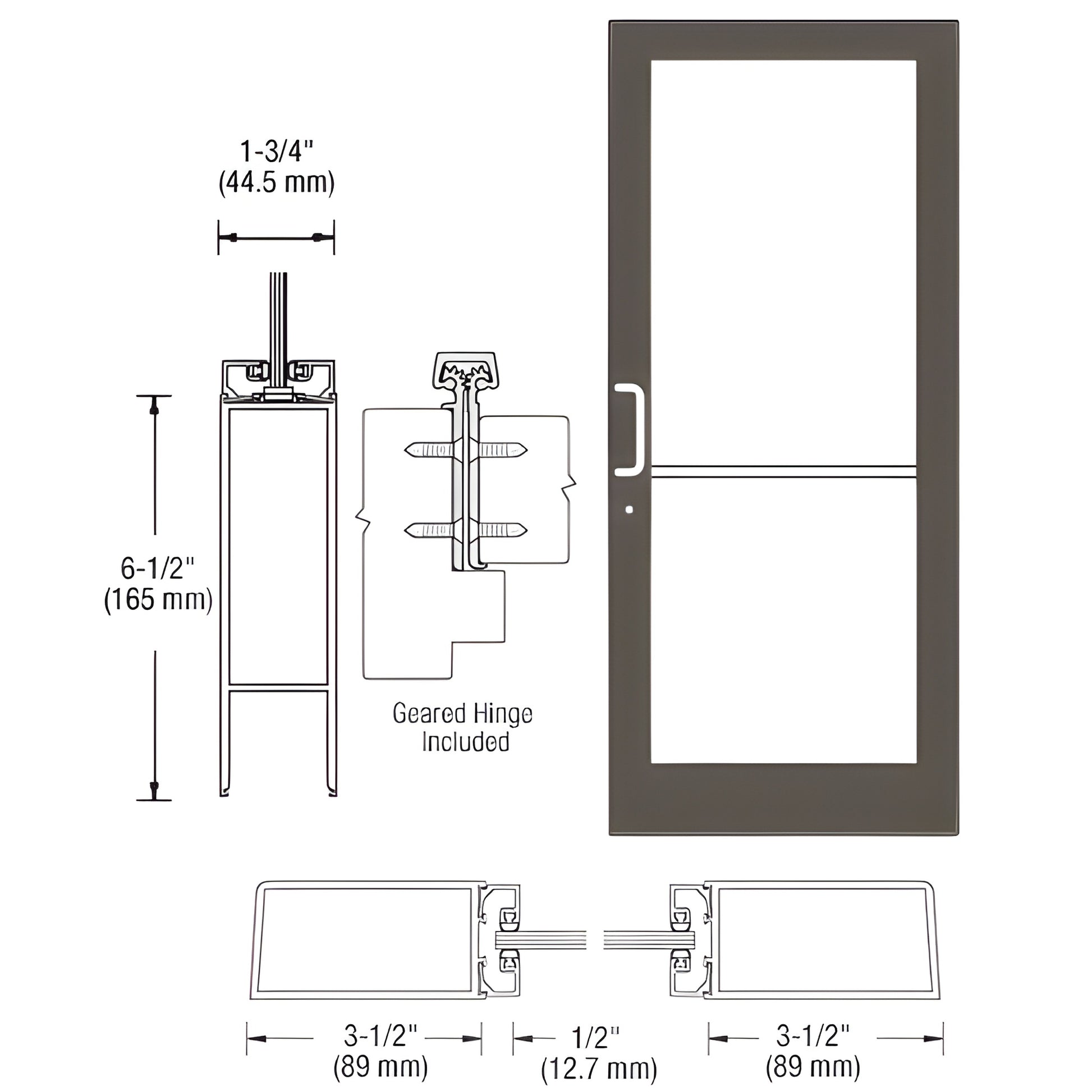

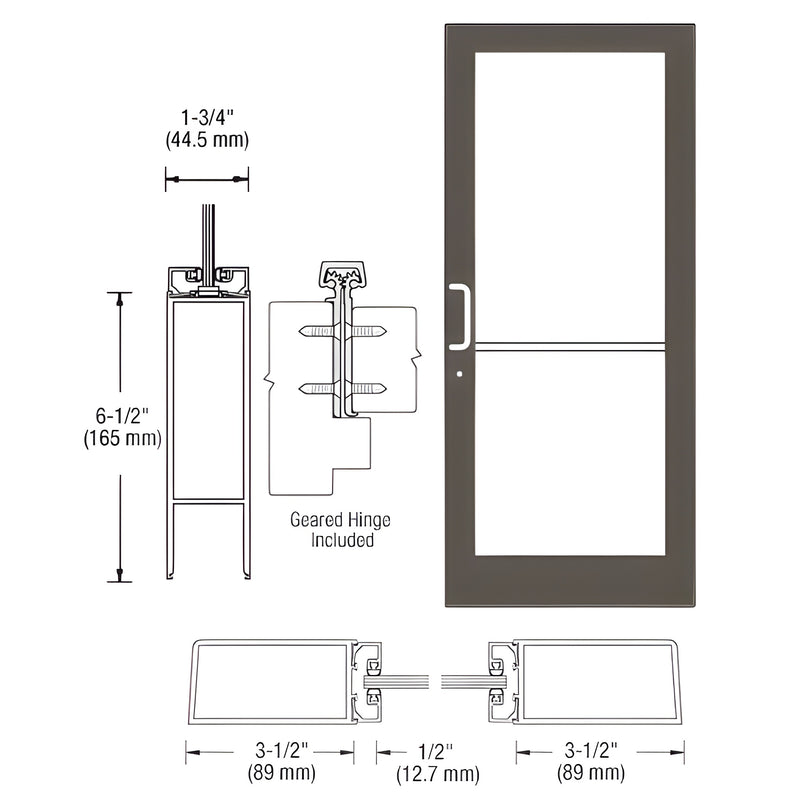

This Custom Medium Stile Entrance Door (SKU: DC41822) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial storefronts, the door is gear-hinge hardware ready and includes glass stops for 1/4" tempered glass (by others). It is custom-fabricated to accommodate a wide range of optional hardware for entrances and storefront applications.
Customer must install included protruding hardware (handles, pivots, etc.) which is boxed separately to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements. For ADA-compliant installations, select the 9-1/4" (235 mm) bottom rail option.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images represent the actual product or a close representation; colors may vary by monitor.
Need help selecting options or confirming ADA compliance? Contact us to get a quote and specification support.
