CRL-U.S. Series 400 Geared Hinge, Offset Hung — Bronze Black Anodized
CRL-U.S. Series 400 Geared Hinge, Offset Hung — Bronze Black Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE41922
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders — ideal for commercial storefront security
- Accommodates 1/4” (6 mm) tempered glass with option for 1” (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) ADA-compliant bottom rail to meet accessibility requirements (note: door widths under 36" / 914 mm may not pass ADA inspection)
- Custom fabricated to accept a wide range of optional hardware applications and Gear Hinge hardware-ready stiles

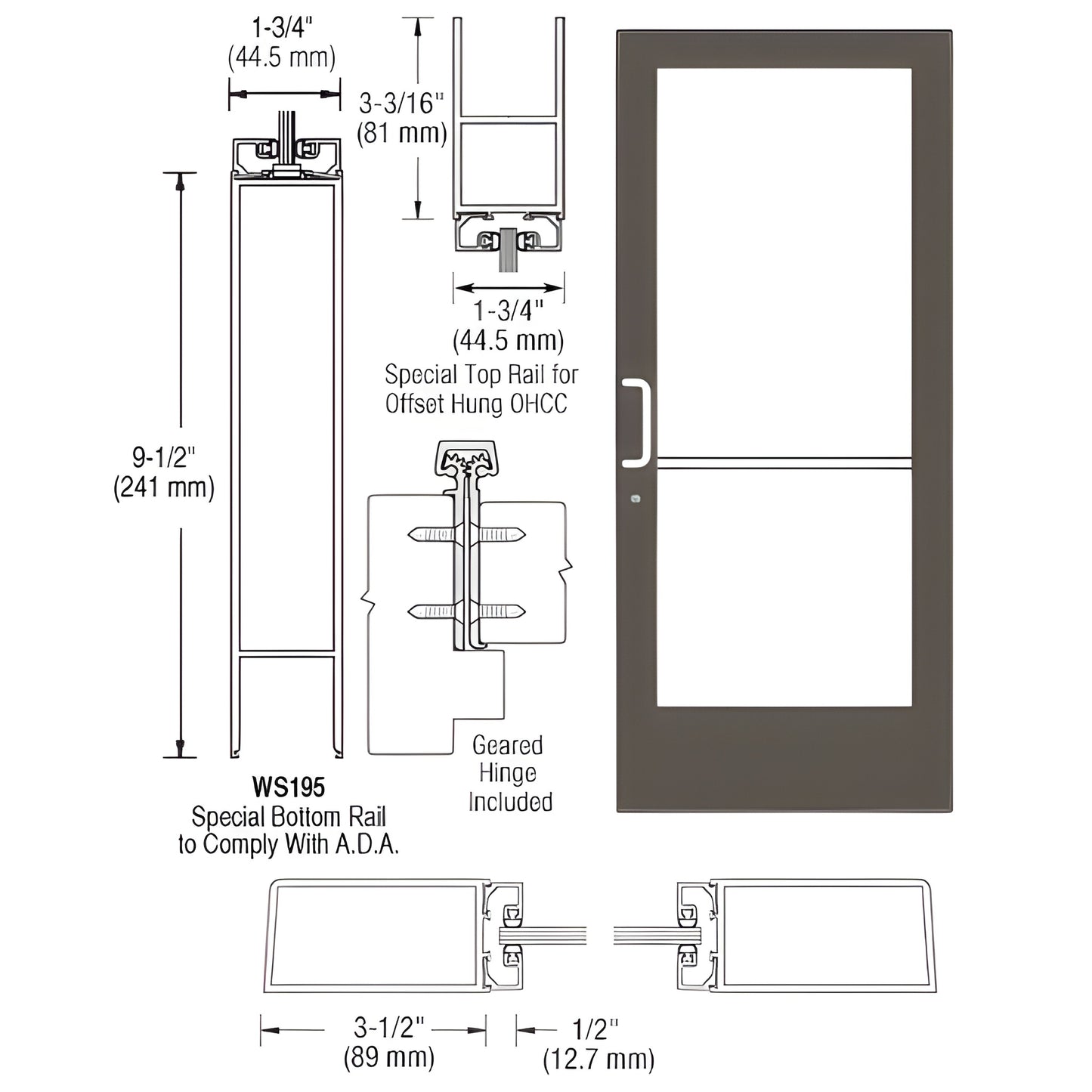

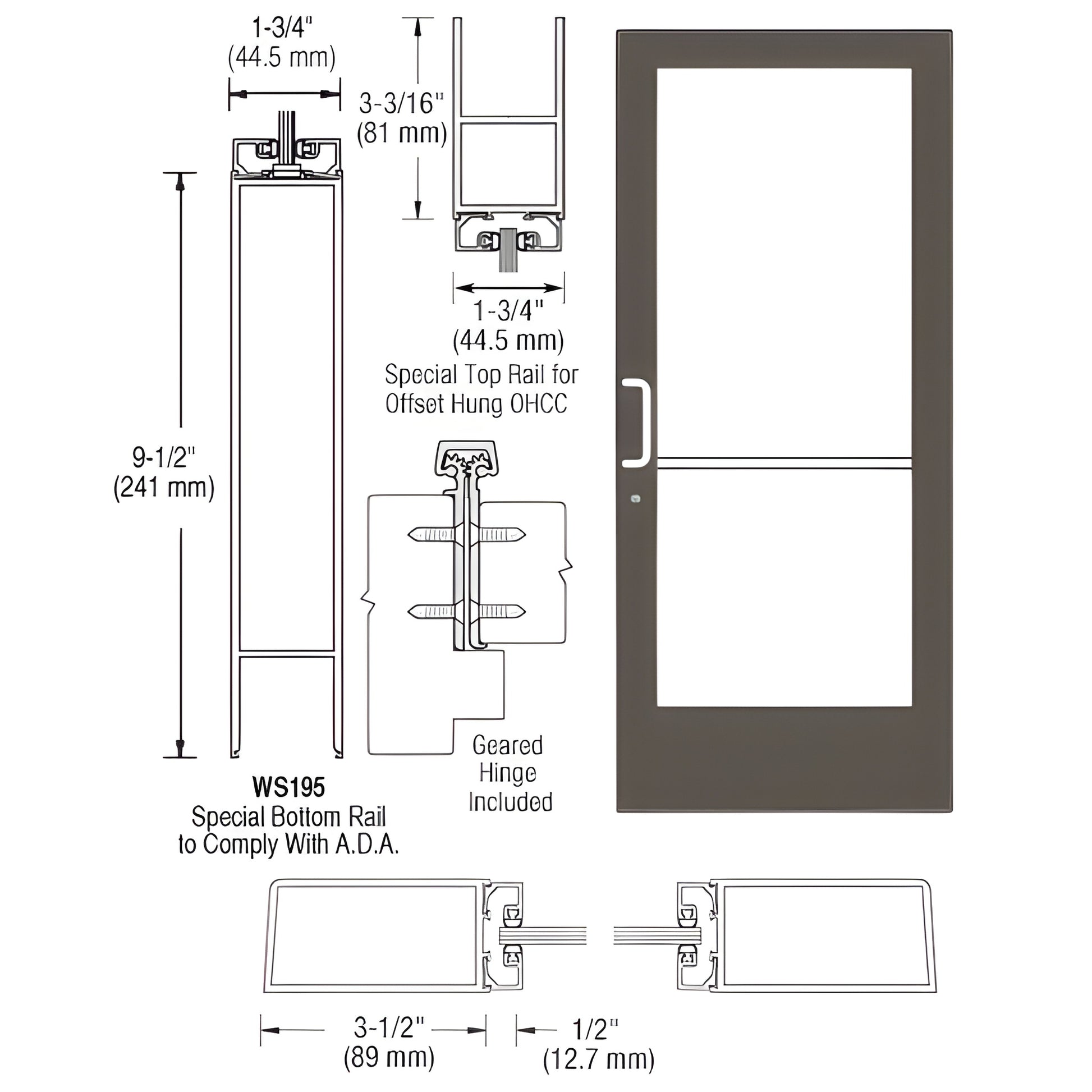

This Custom Medium Stile Entrance Door (SKU DE41922) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard glass stops fit 1/4” (6 mm) tempered glass (by others). Protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. This commercial glass entrance door is built for secure, customizable storefront and retail applications.
Ready to customize your ADA-compliant commercial glass entrance? Contact us to order or request exact shipping weight.
Specifications
BIM Objects - rvt
