CRL-U.S. Series 400 Medium-Stile Geared Hinge for Overhead Closer
CRL-U.S. Series 400 Medium-Stile Geared Hinge for Overhead Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE41922
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 7-1/2" (191 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass or 1" (25 mm) tempered insulating unit (glass not included)
- Includes standard push/pull hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

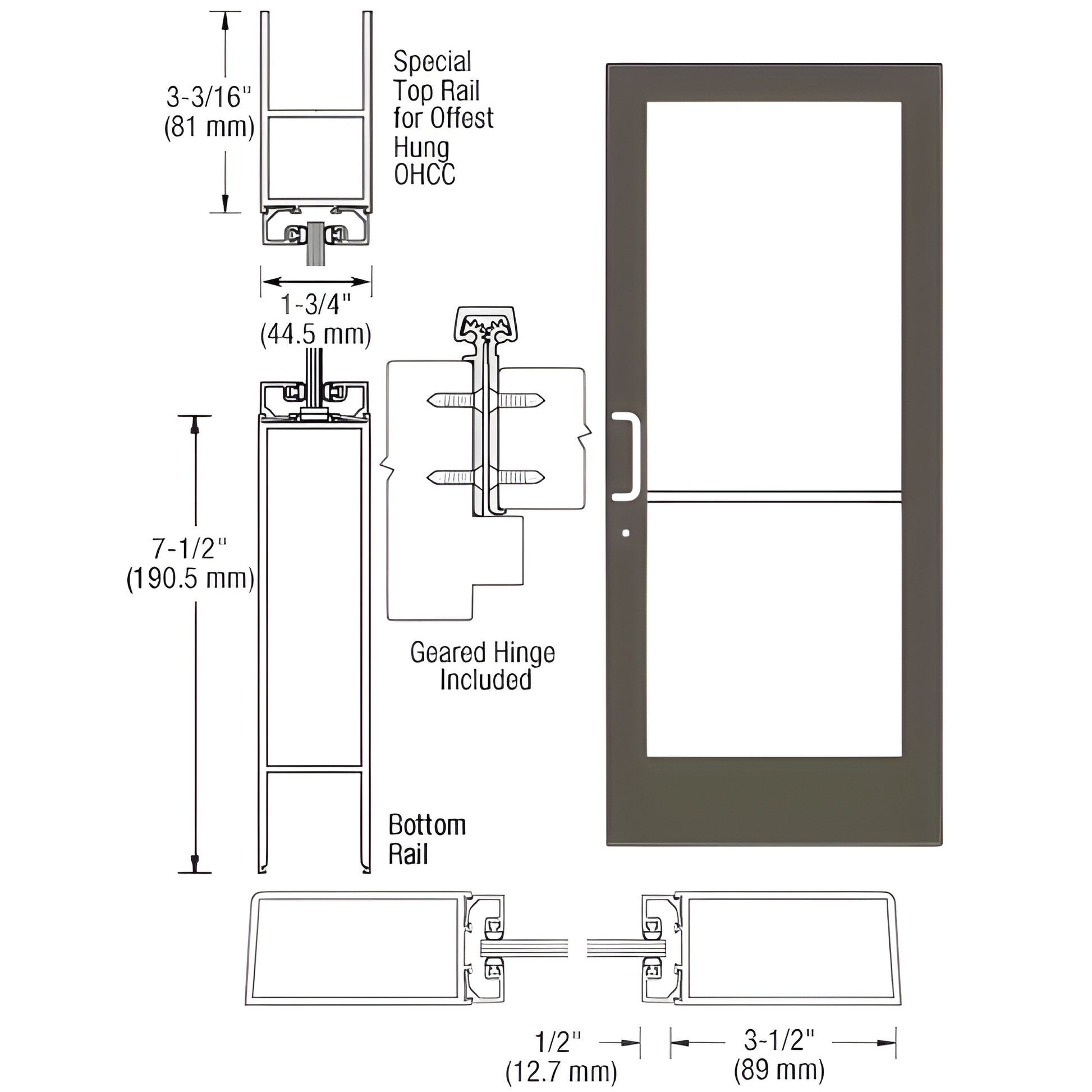

Custom Medium Stile Entrance Door (SKU: HE41922) — Built with 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Engineered for commercial storefront and facility entrances, this door is prepped with stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Designed for easy customization and optional hardware integration to meet specific project needs.
Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order the HE41922 custom medium stile entrance door today to get a commercial-grade, customizable solution for storefronts and facilities.
Specifications
BIM Objects - rvt
