CRL-U.S. Series 550 Black Anodized Alum Bronze Geared Hinge Doors
CRL-U.S. Series 550 Black Anodized Alum Bronze Geared Hinge Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE52822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass (by others) with option for 1" (25 mm) tempered insulating unit; glass not included

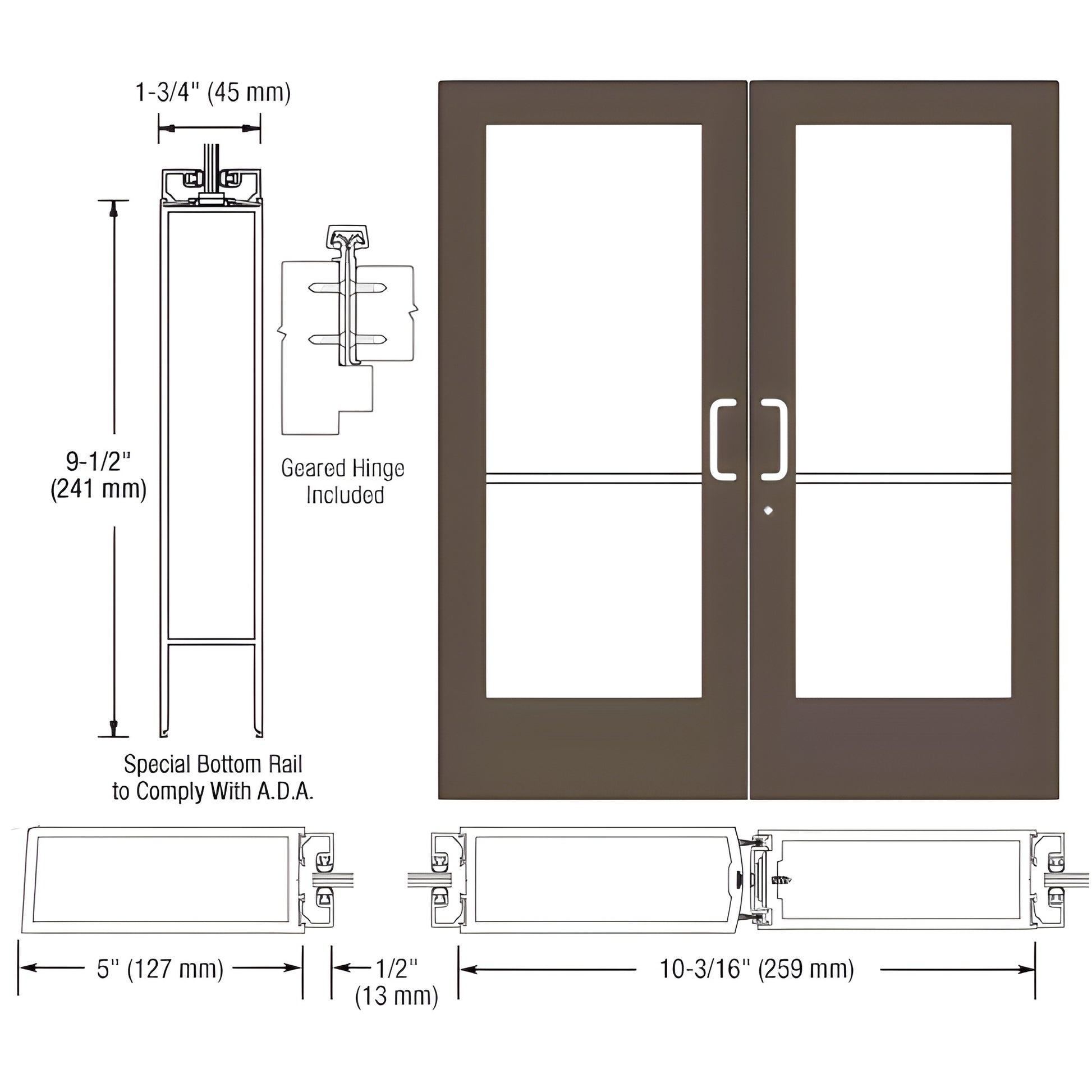

This Custom Wide Stile Entrance Door (SKU: DE52822) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial and institutional openings, it includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. The door is custom-fabricated to accept a wide range of optional hardware applications and is ideal for storefront and entrance systems requiring a heavy-duty wide stile door that accommodates tempered or insulated glass.
Customer must install included protruding hardware (handles, pivots, etc.) shipped separately to prevent transit damage.
