CRL-U.S. Series 550 Wide-Stile Geared-Hinge Doors, White Kynar
Item# DC52852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
White Kynar
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) insulated tempered glass unit can be used (glass sold separately)
- Includes both active and inactive leaf with all standard hardware
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications

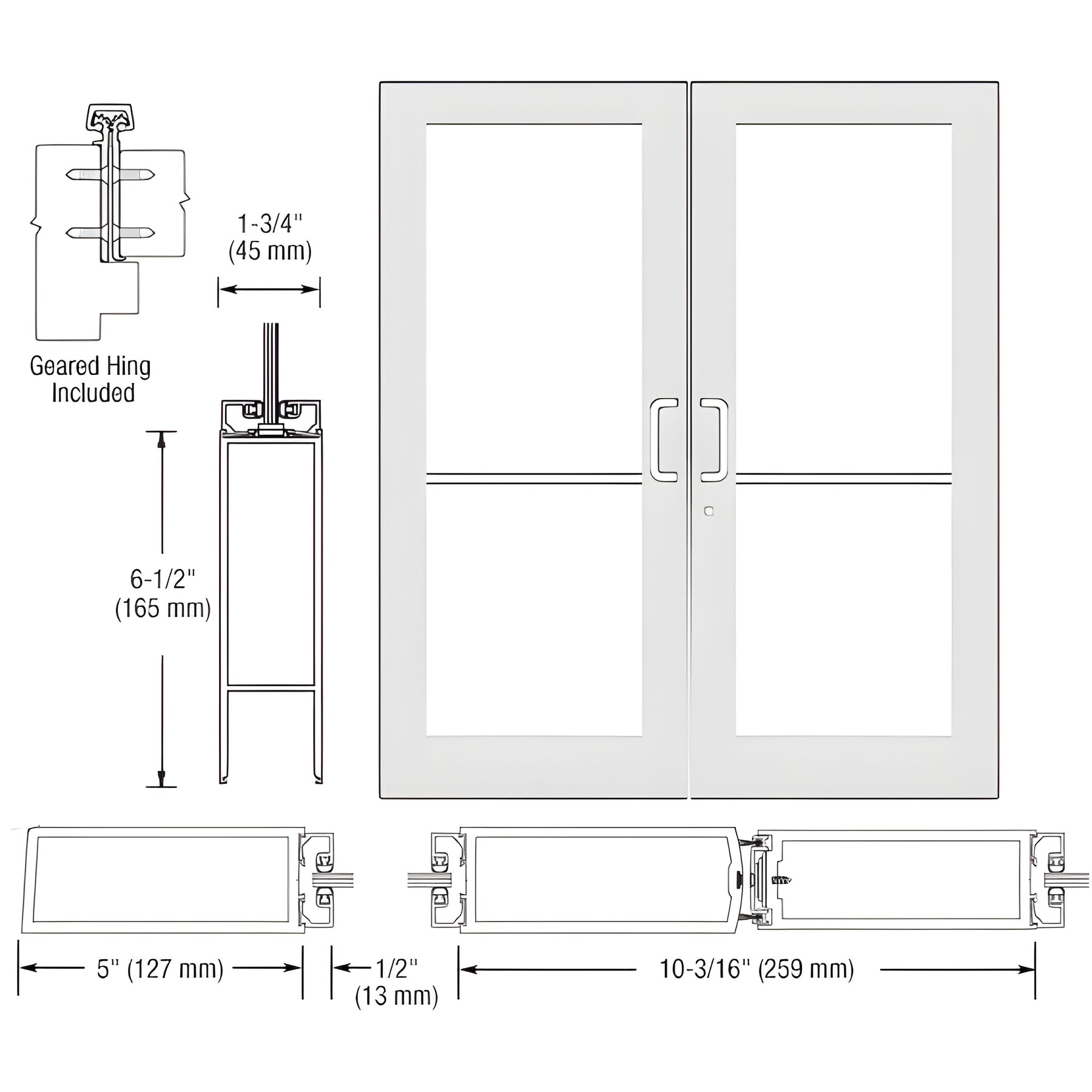

This Custom Wide Stile Entrance Door features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard preparation includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass provided by others). The door is built for custom fabrication to support additional commercial and architectural hardware options, making it a versatile choice for storefront, office, or other entrance applications.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage—please install after delivery.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; actual color may vary based on monitor settings.
SKU: DC52852 — For custom hardware options or to request exact shipping weight, contact CRL Customer Service. Ready to order? Contact us to get started.
