CRL-U.S. Wide-Stile Center Pivot Door for Overhead Concealed Closer
CRL-U.S. Wide-Stile Center Pivot Door for Overhead Concealed Closer
Regular price
$1,403.36 CAD
Regular price
Sale price
$1,403.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC51722
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 9-1/2" (241 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications — ideal for ADA-compliant commercial entrances
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders for simplified access control
- Custom fabricated to accept a wide range of optional hardware applications (center pivot ready)

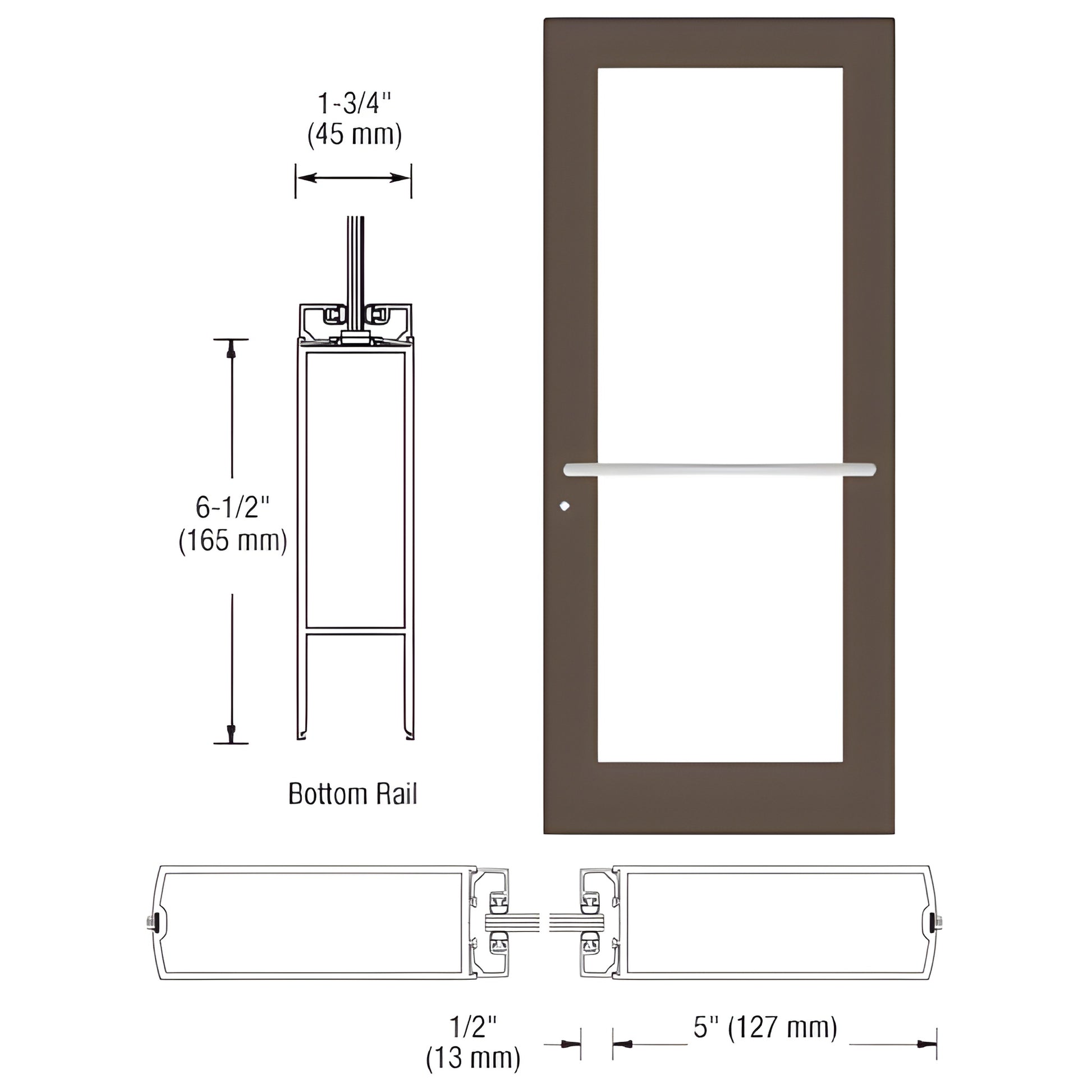

This Custom Wide Stile Entrance Door (SKU: DC51722) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard design includes stiles for center pivot hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Built for commercial use and ready for custom fabrication to accommodate optional hardware and commercial-grade locking systems.
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection; verify required clearances for ADA-compliant installations.
Specifications
BIM Objects - rvt
