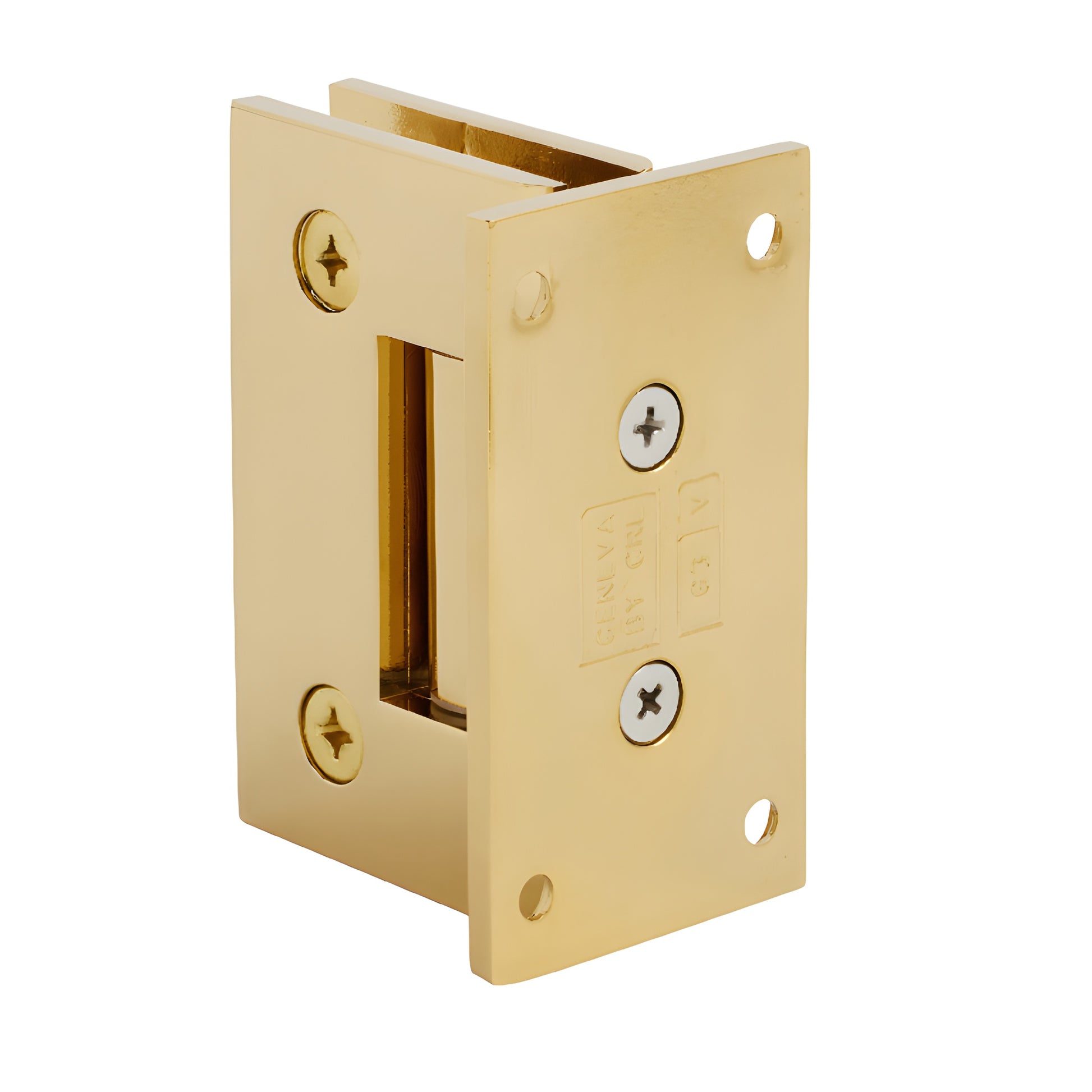

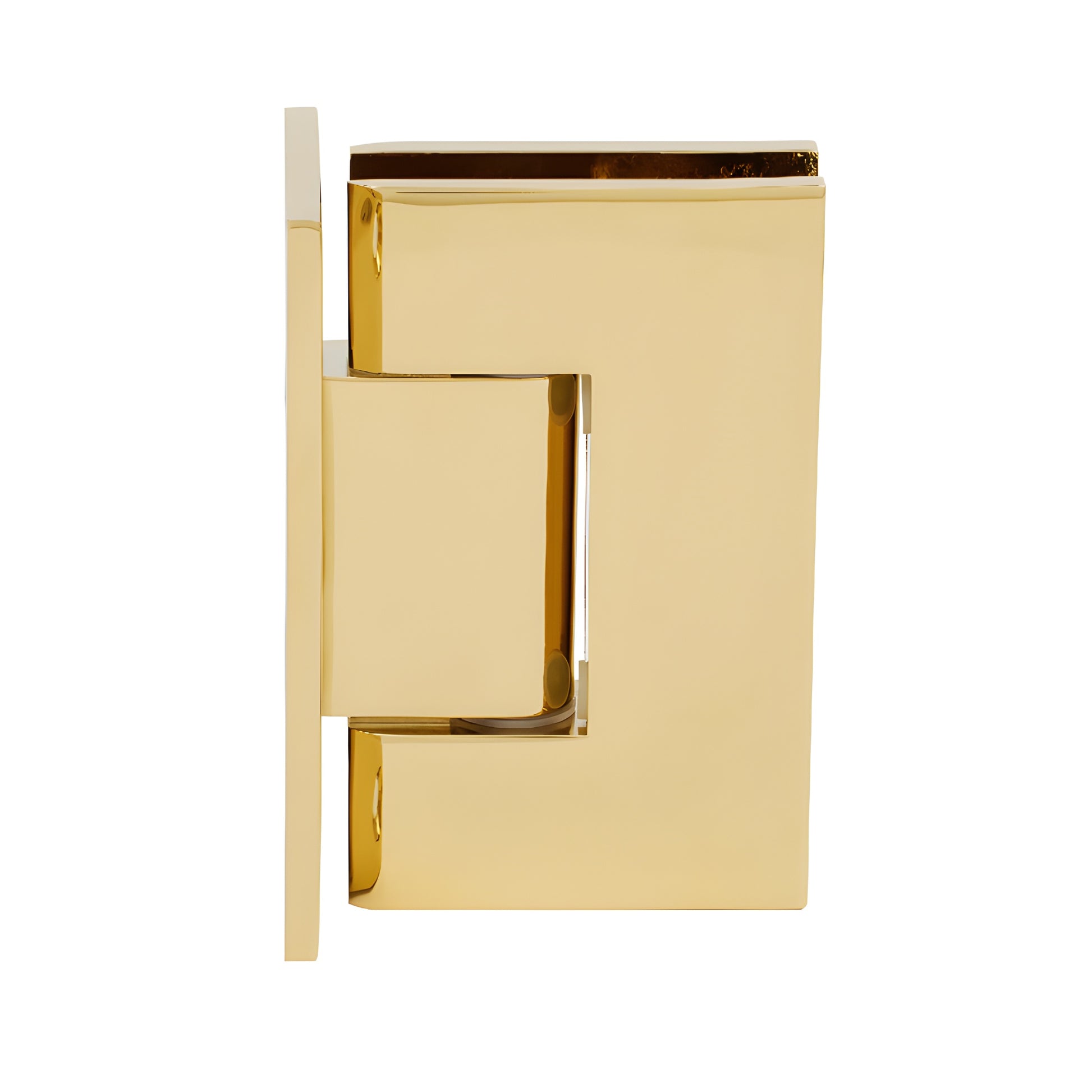

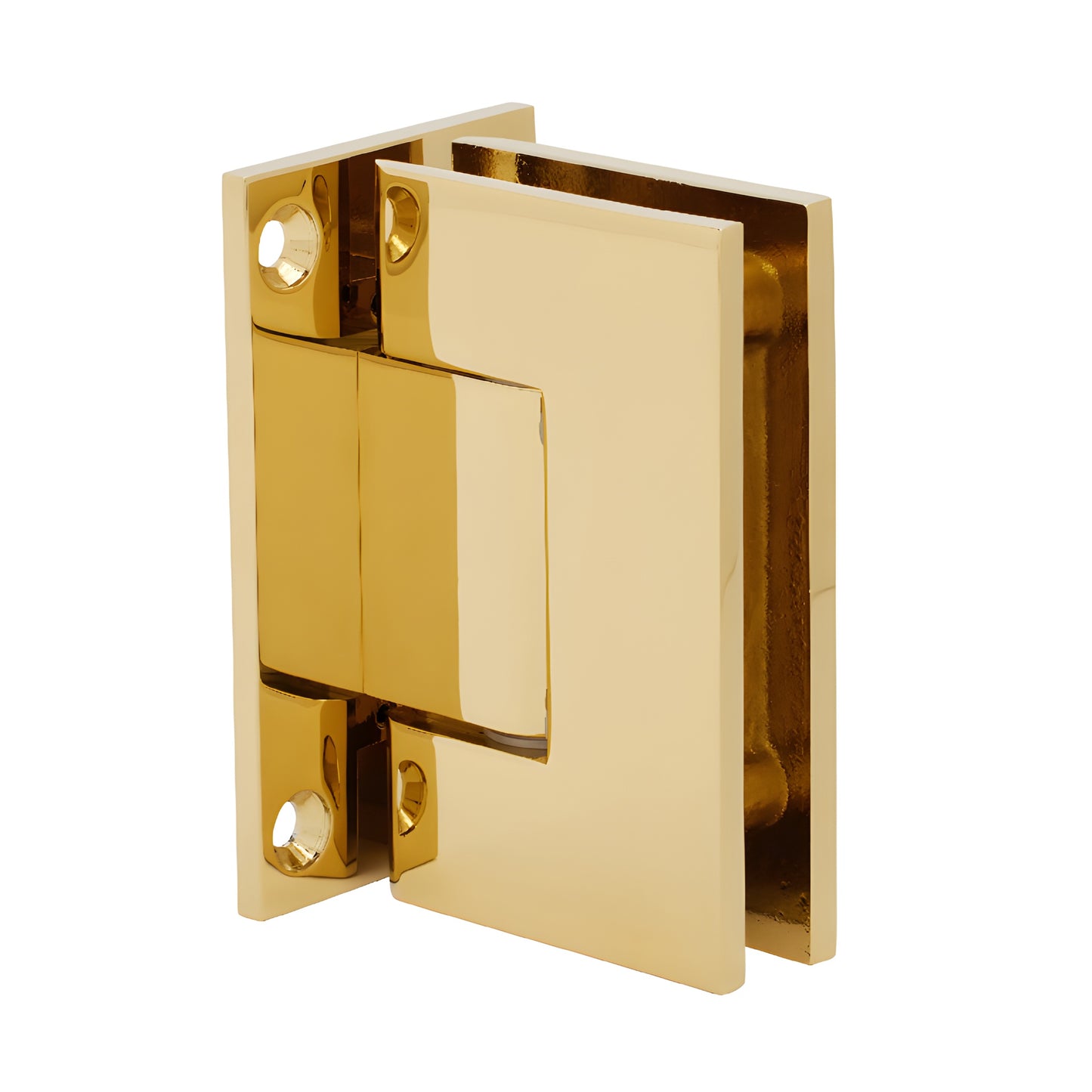

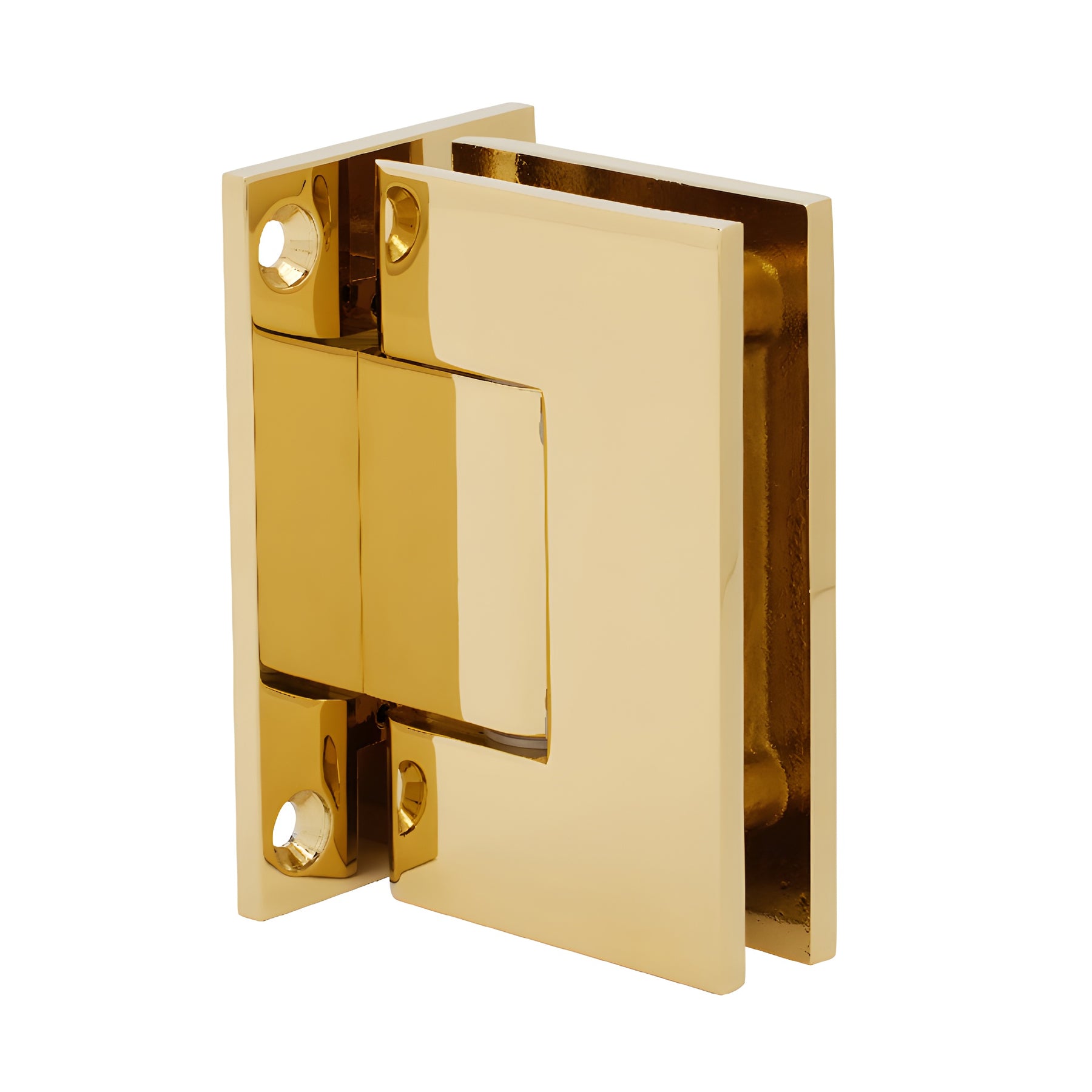

CRL Ultra Brass Geneva 037 Wall Mount Full Back Plate Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Use Monolithic Tempered Glass
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)

The CRL Geneva Series professional hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles—three Wall Mount and three Glass-to-Glass—provide design flexibility for frameless and semi-frameless shower enclosures. Geneva Hinges are self-centering and use a reversible 5 degree pivot pin; custom pivot pins are available for off-angle installs. Constructed of solid brass with stainless-steel pins and springs for corrosion resistance in wet environments.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Offset models ship pre-set at 85° for a tighter closure into the shower interior. The pin can be rotated to change the active side.

Custom Pivot Pin (Cat. No. GENP1N): Custom pivot pins (up to 45°) are available for off-angle installations—contact Technical Sales Shower Door Department for assistance. Using a custom pin may affect glass dimensions and enclosure aesthetics.

Performance:

• Two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs. (36 kg); max door width 28" (711 mm).
• Three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs. (54 kg); max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard model (factory set at 0° closing position) or 5° Pre-Set model for tighter closure into shower interior.
Construction: Solid Brass with stainless-steel internal parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use. For other
