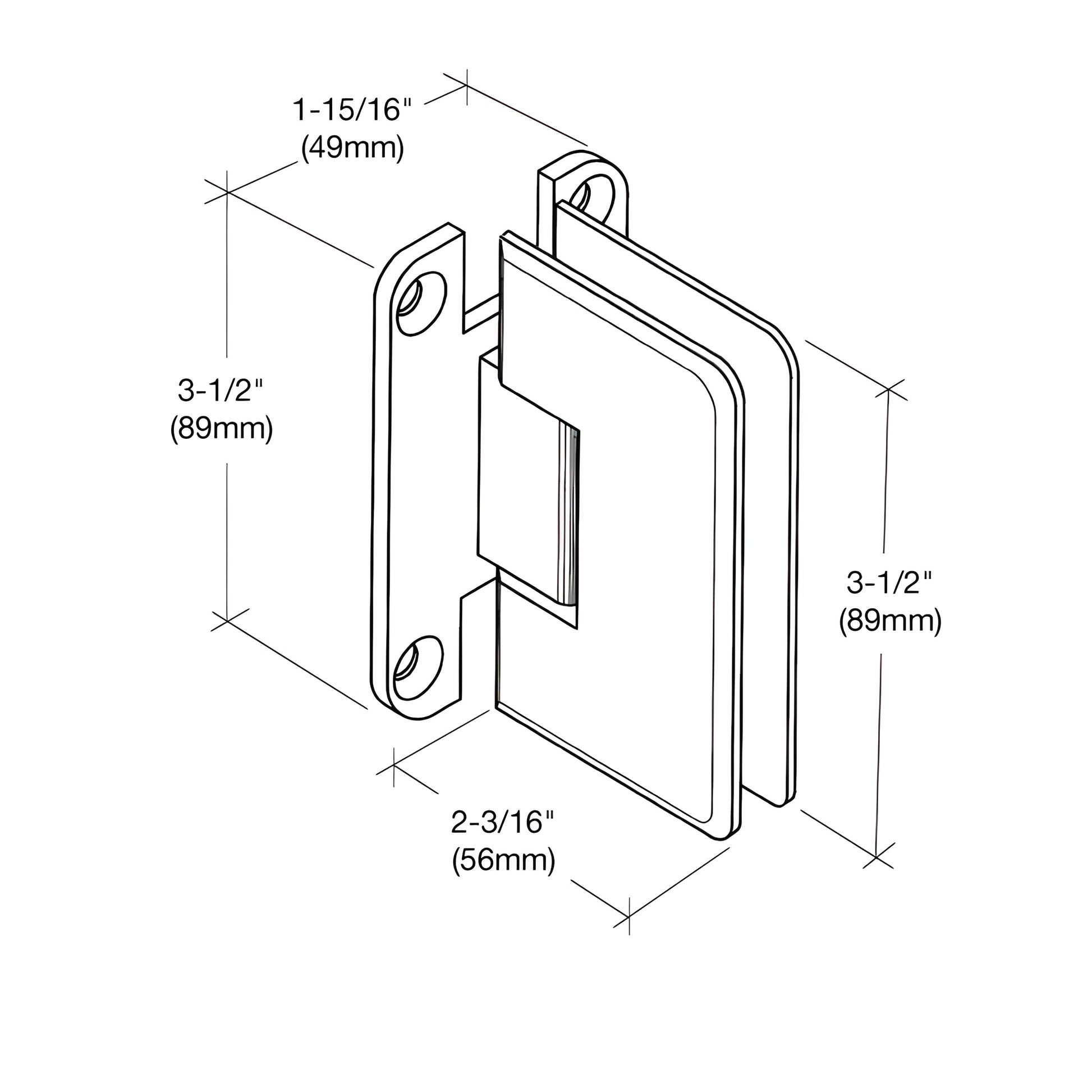

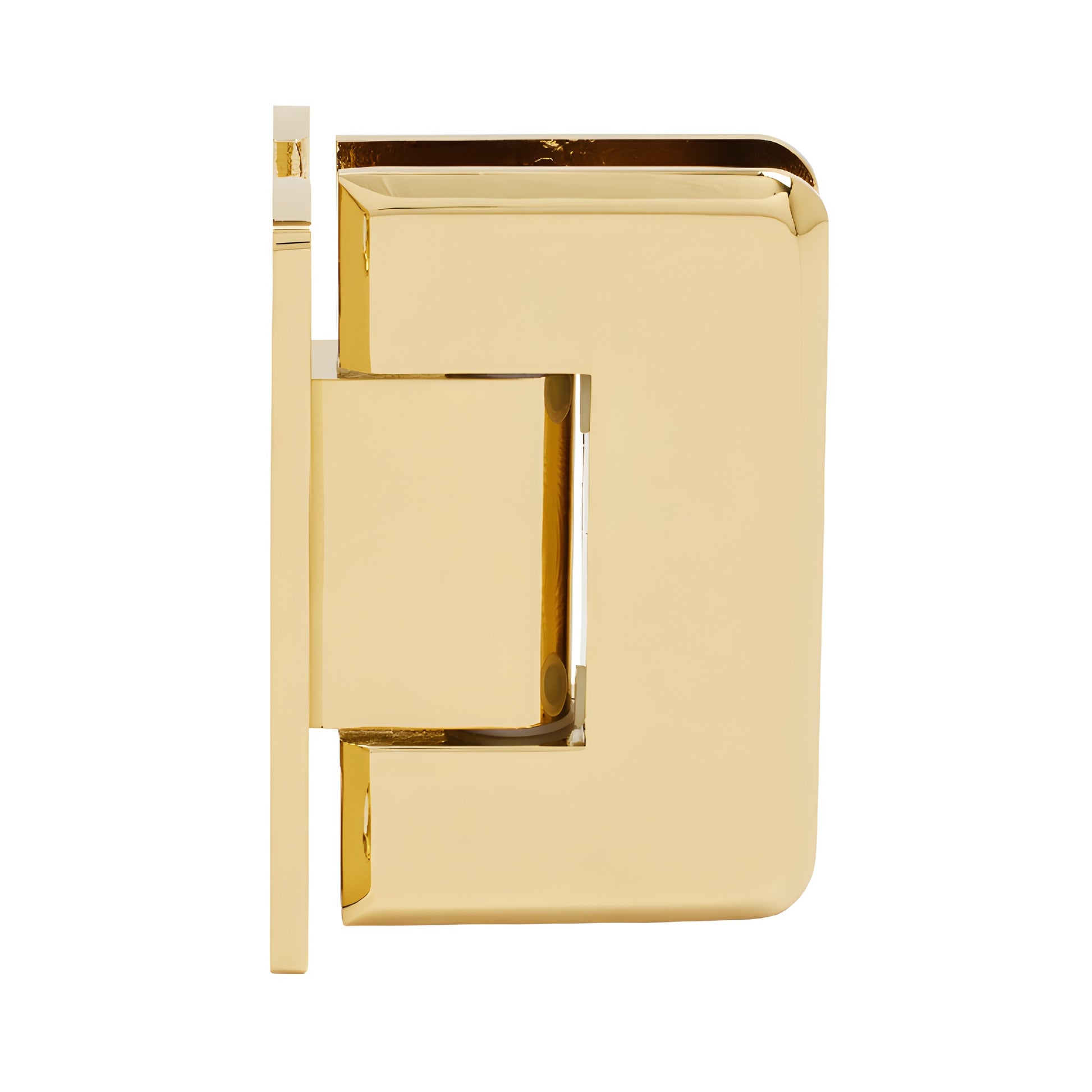

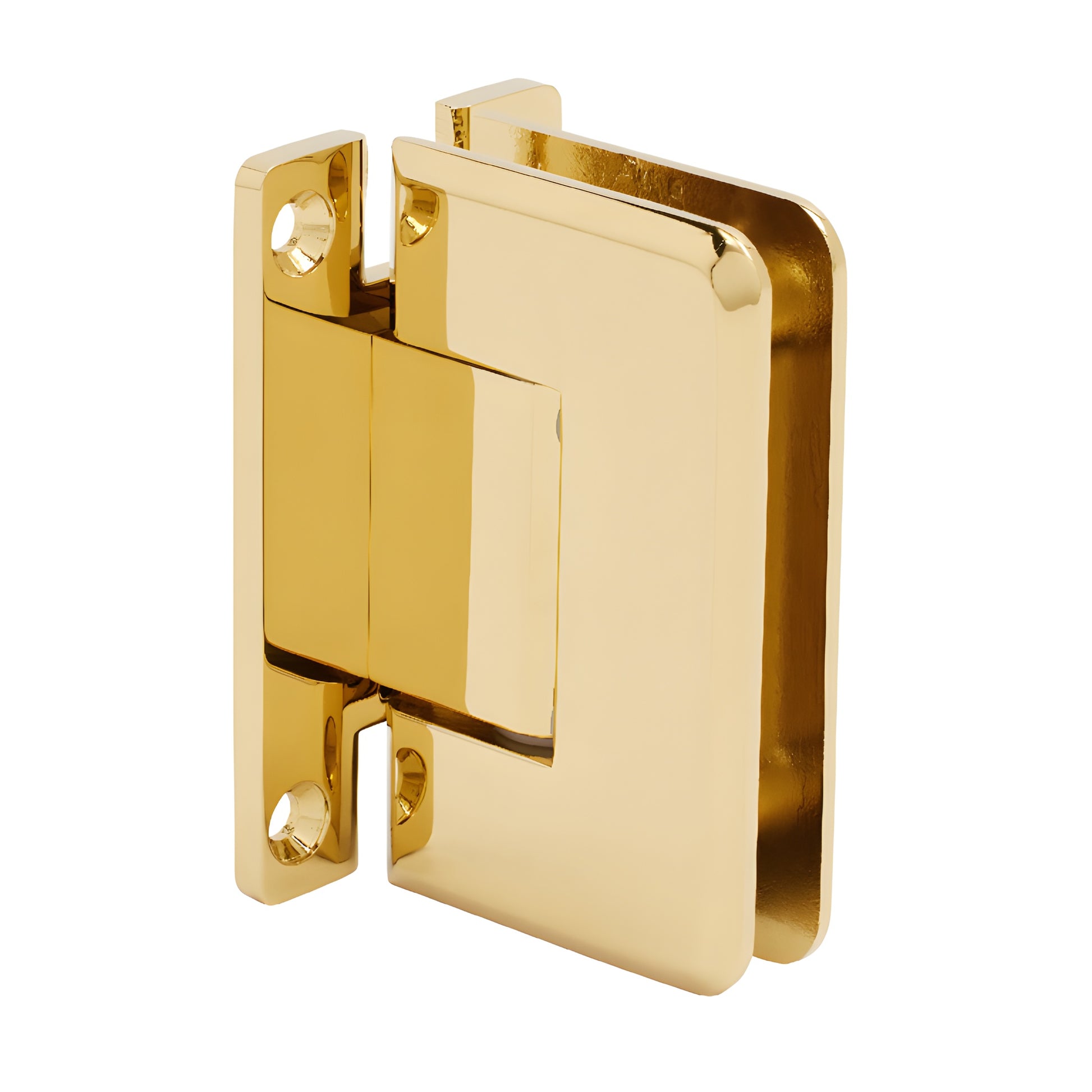

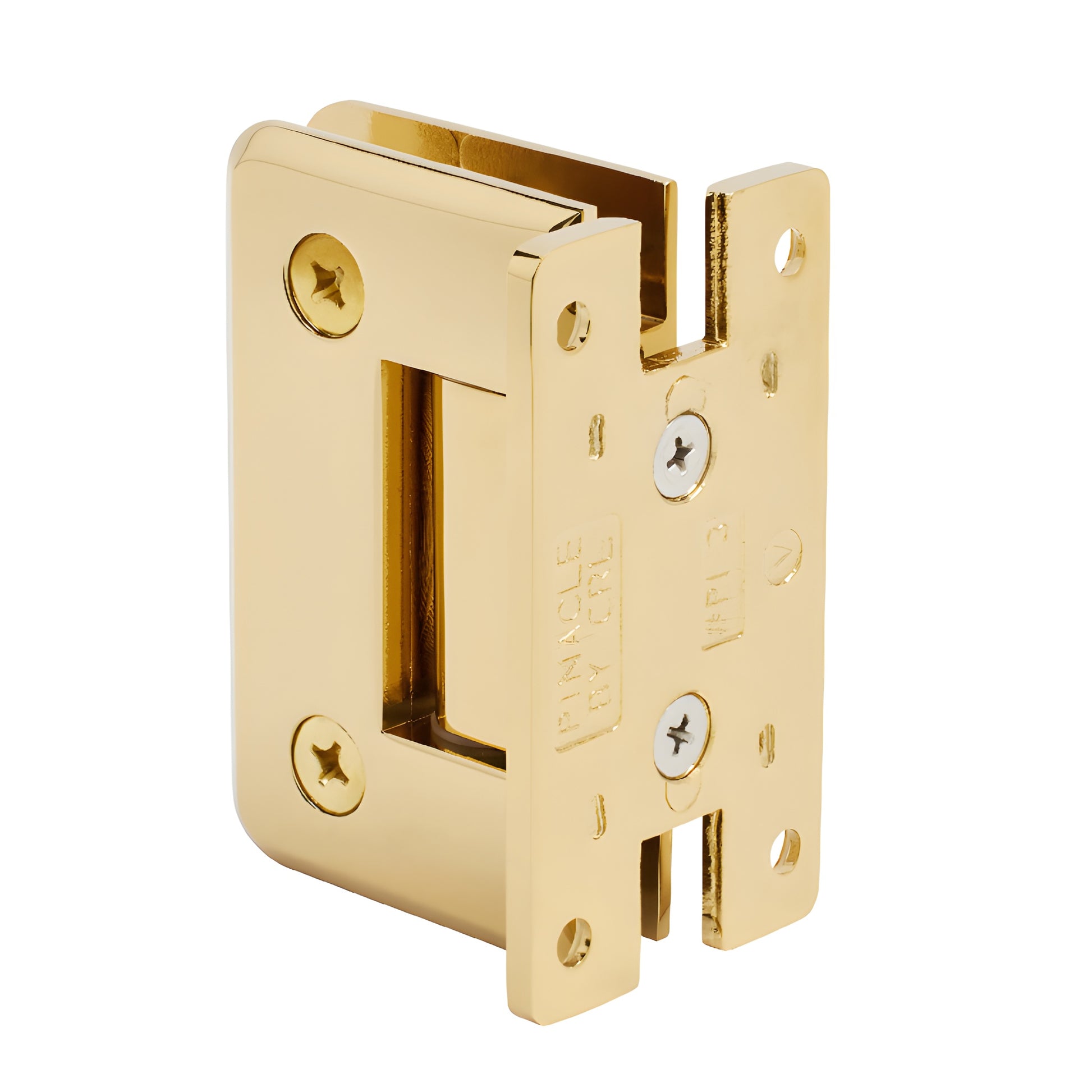

CRL Ultra Brass Pinnacle 037 Wall-Mount H Back Plate Hinge Glass Door

• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• Wall mount "H" back plate standard model (factory set for standard closing position)
• Use monolithic tempered safety glass

CRL Pinnacle Hinge (SKU: P1N037UBR) is a solid-brass shower door hinge designed for residential and hotel applications. Similar to the Geneva Series but with radius corners and beveled edges, Pinnacle offers a sleek, high-end appearance. These brass shower door hinges accept 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self-centering within 15° of the closed position—ideal for reliable, smooth door closure.

Construction features include solid brass bodies with stainless-steel plunger tips, pins, and springs for long service life. The hinge includes the reversible 5° pivot pin found in Geneva, Cathedral, Roman, Ultimate, and Elite Series hinges; a custom pivot pin (up to 45°) is available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: One side of the pivot pin is marked 90° and the opposite side 85°. Standard models ship set at 90°. Pre-set models ship at 85° (5° tighter closure into the shower interior). Rotate the pin (do not flip) to select the other setting.

CUSTOM PIVOT PIN: Specify a custom angle (up to 45°) for non-90° wall-to-door conditions when the standard 5° pin does not achieve the desired closure.

Load Ratings

Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass

Special Feature: Wall mount hinges and 180° glass-to-glass hinge available as Standard Model (factory set at 0°) or 5° Pre-Set Model for tighter closure into shower interior.

Construction: Solid brass

Hinge Swings: 90° in and 90° out

Closing Type: Self-cent
