- Available in Several Beautiful Finishes
- Provides a Functional Pull Handle for Inside the Shower Enclosure, Along with a Convenient Towel Bar for the Outside
- Attractive Metal Washers
- Use Monolithic Tempered Glass
The

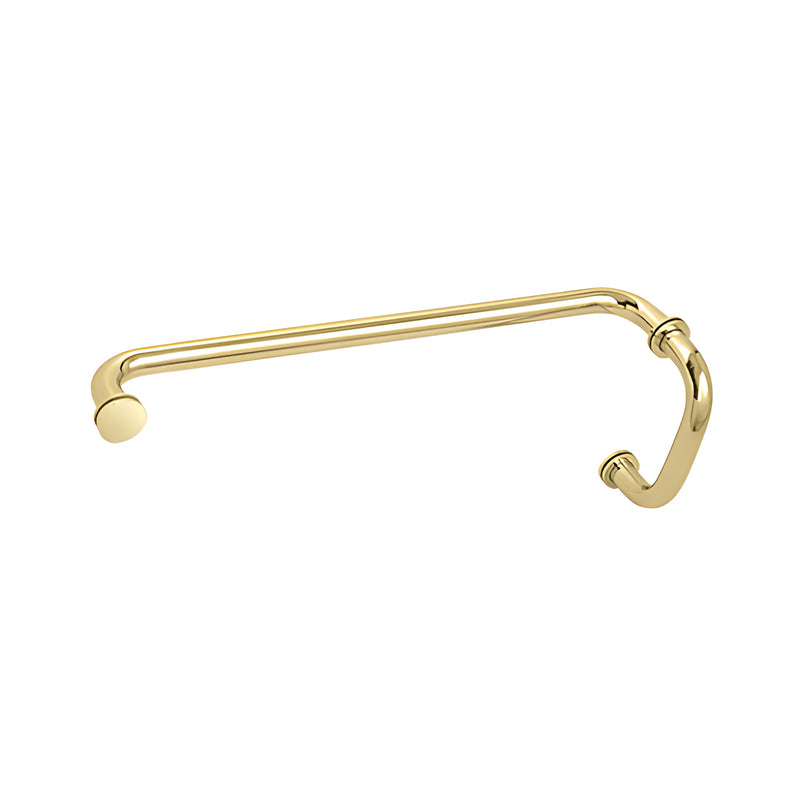

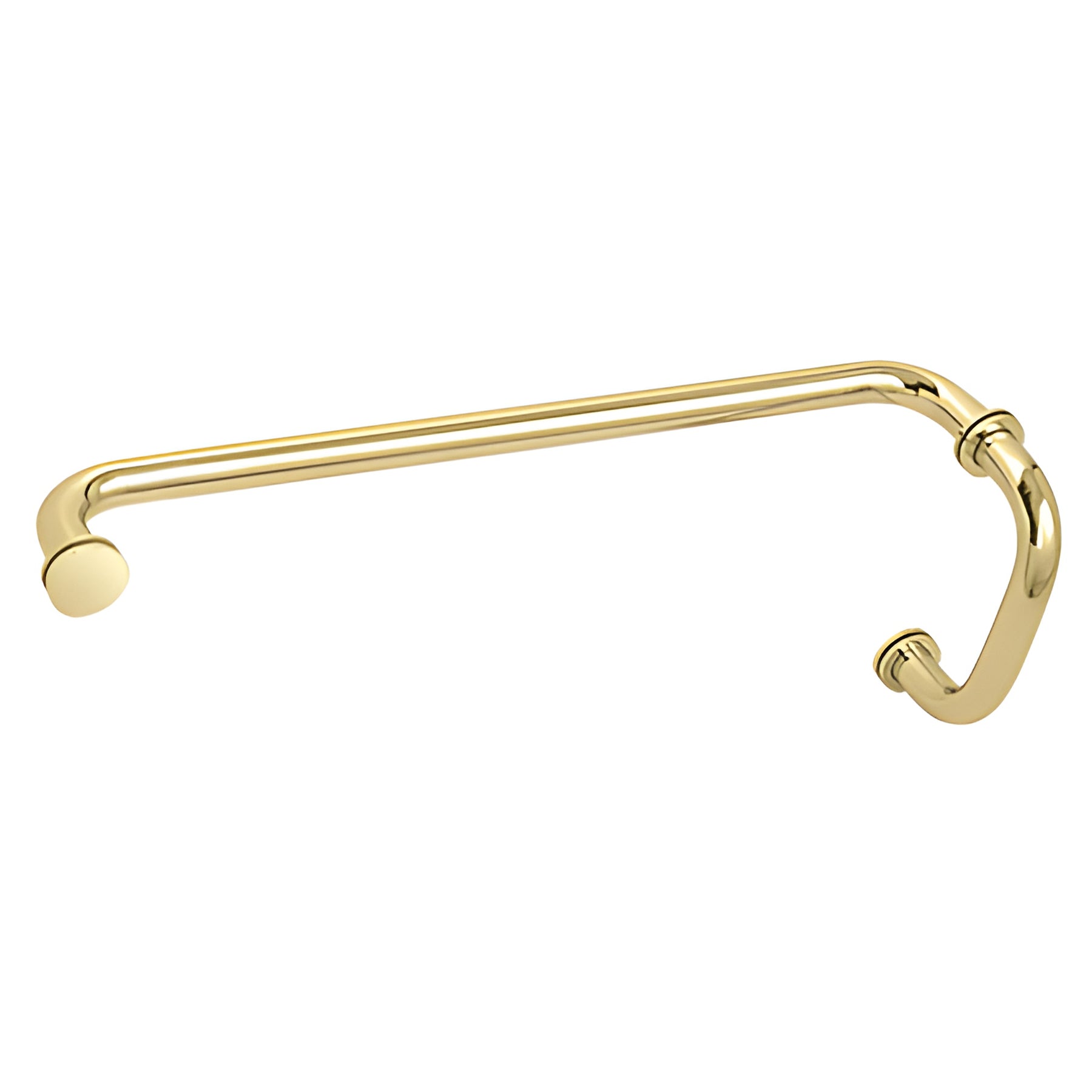

CRL BM Series of Pull Handle/Towel Bar Combinations With Metal Washers
are provided with all the hardware required for installation. They are constructed of 1.5 mil thick heavy brass tubing. Each set consists of a pull handle/towel bar set, along with decorative metal back-up washers and plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS
Material
3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick), 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range
1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required
1/2" (12 mm)
Center-to-Center Hole Spacing
6" Pull = 6" (152 mm)
8" Pull = 8" (203 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES
Cat. No. BM6X12 6" Pull/12" Towel Bar
Cat. No. BM6X18 6" Pull/18" Towel Bar
Cat. No. BM6X22 6" Pull/22" Towel Bar
Cat. No. BM6X24 6" Pull/24" Towel Bar
Cat. No. BM8X18 8" Pull/18" Towel Bar
Cat. No. BM8X20 8" Pull/20" Towel Bar
Cat. No. BM8X22 8" Pull/22" Towel Bar
Cat. No. BM8X24 8" Pull/24" Towel Bar
Cat. No. BM12X24 12" Pull/24" Towel Bar
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
