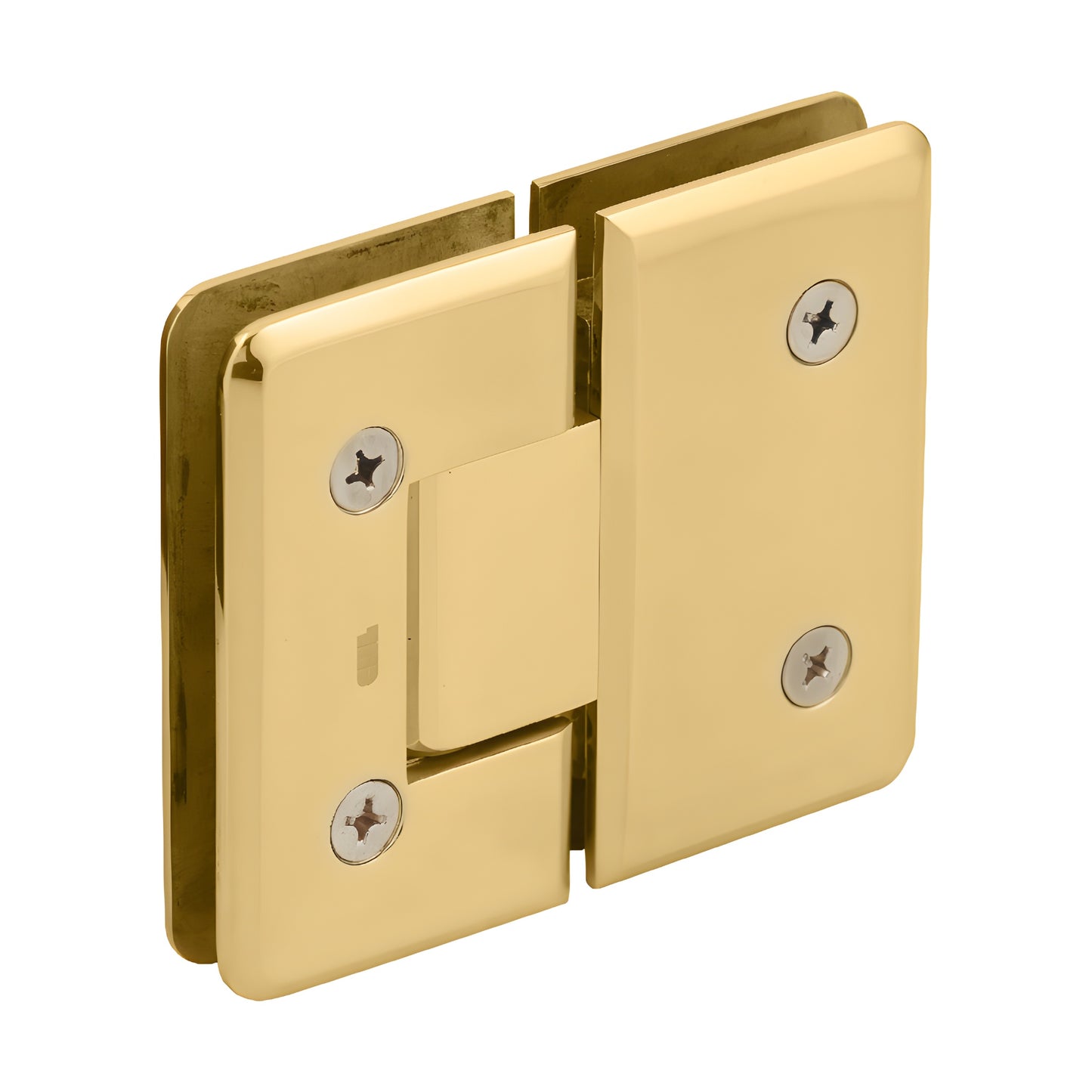

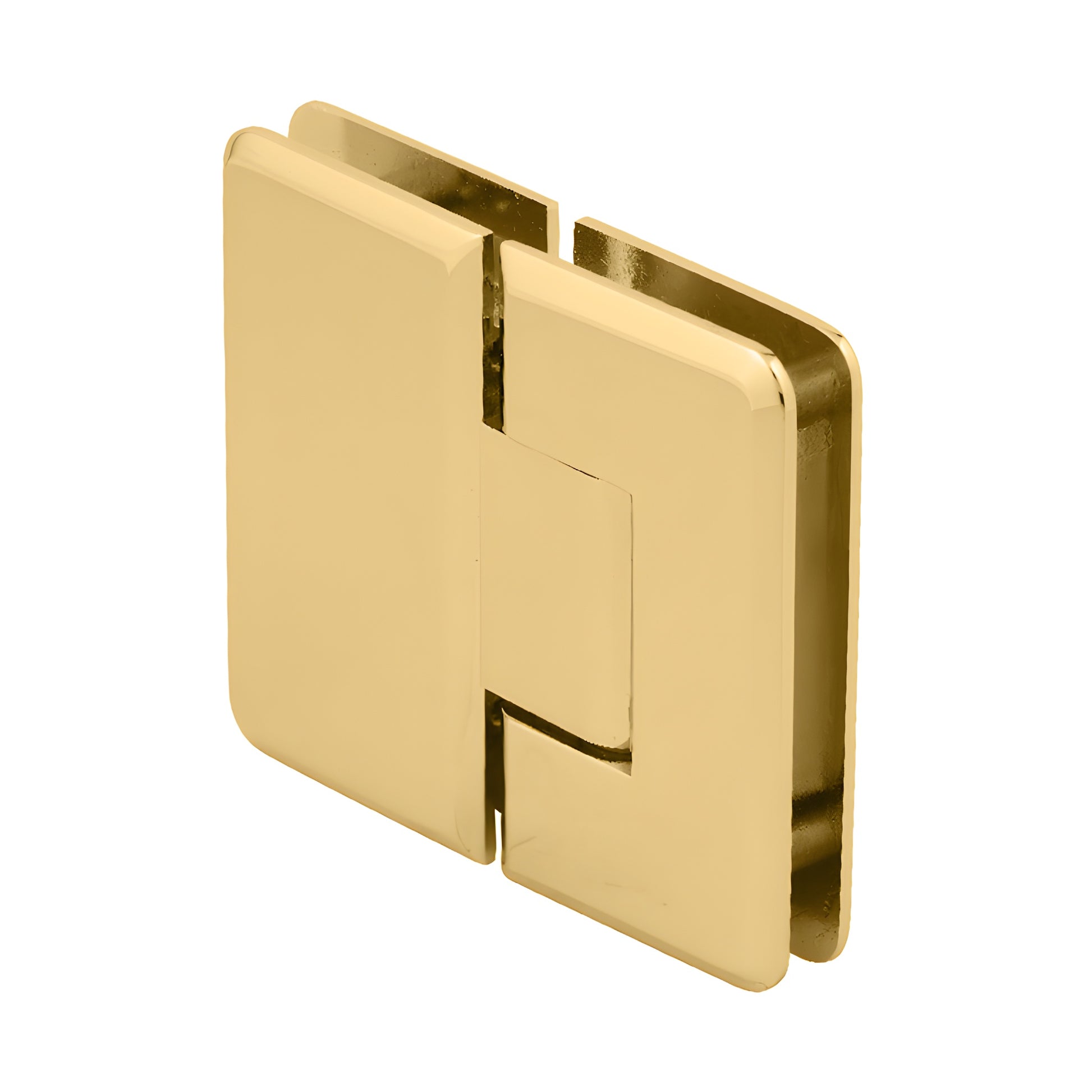

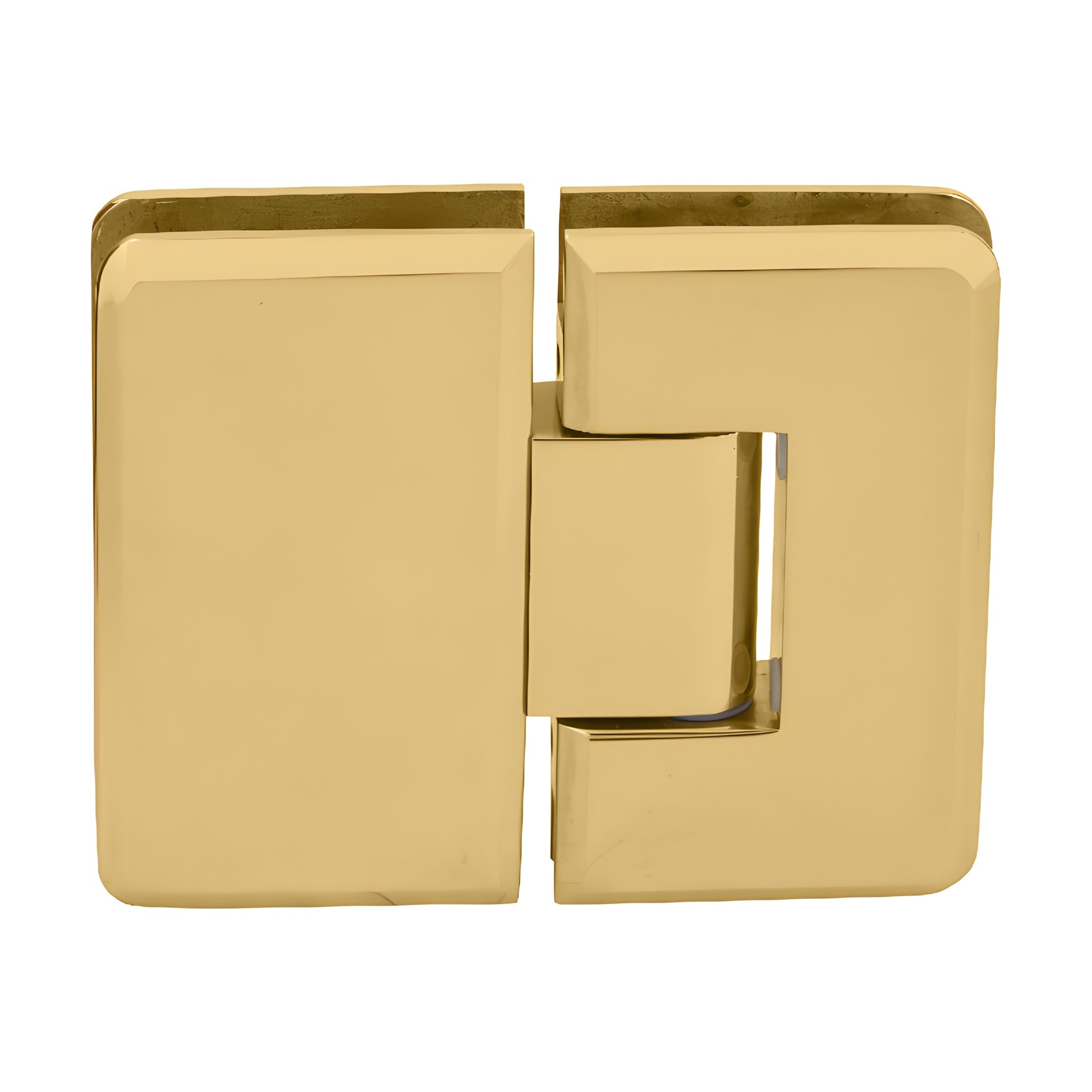

CRL Cologne Unlacquered Brass 180° Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 180º Glass-to-Glass Hinge for frameless shower doors
• Use Monolithic Tempered Glass

CRL Cologne Hinges (SKU C0L180ULBR) are a premium solid brass, radius‑corner, beveled‑edge hinge designed for wider, heavier frameless shower doors. Similar to Vienna Hinges but with a sleeker profile, Cologne Hinges provide extra strength and a polished aesthetic for custom shower installations and high‑use environments.

Key differentiators:

• Solid brass construction for durability and corrosion resistance
• Radius corners and beveled edges for a refined, modern look
• Internal dual steel pins for installation flexibility—leave pins in for CRL "mouse‑ears" cut-outs or remove for rectangular/square cut‑outs and increased adjustability
• Available custom pivot pins (up to 45º) for off‑angle or non‑plumb wall conditions

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge includes a Reversible Pivot Pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; Pre‑Set models ship at 85º (5º tighter closure). Rotate the pin (do not flip) to change the active side.

CUSTOM PIVOT PIN: Specify a Custom Pivot Pin (up to 45º) when the standard 5º offset does not achieve desired door closing on off‑angle installations.

LOAD CAPACITY:
Two hinges: Holds up to 110 lbs. (50 kg) using 3/8"–1/2" (10–12 mm) glass, maximum door width 36" (914 mm).
Three hinges: Holds up to 140 lbs. (63 kg) using 3/8"–1/2" (10–12 mm) glass, maximum door width 36" (914 mm).

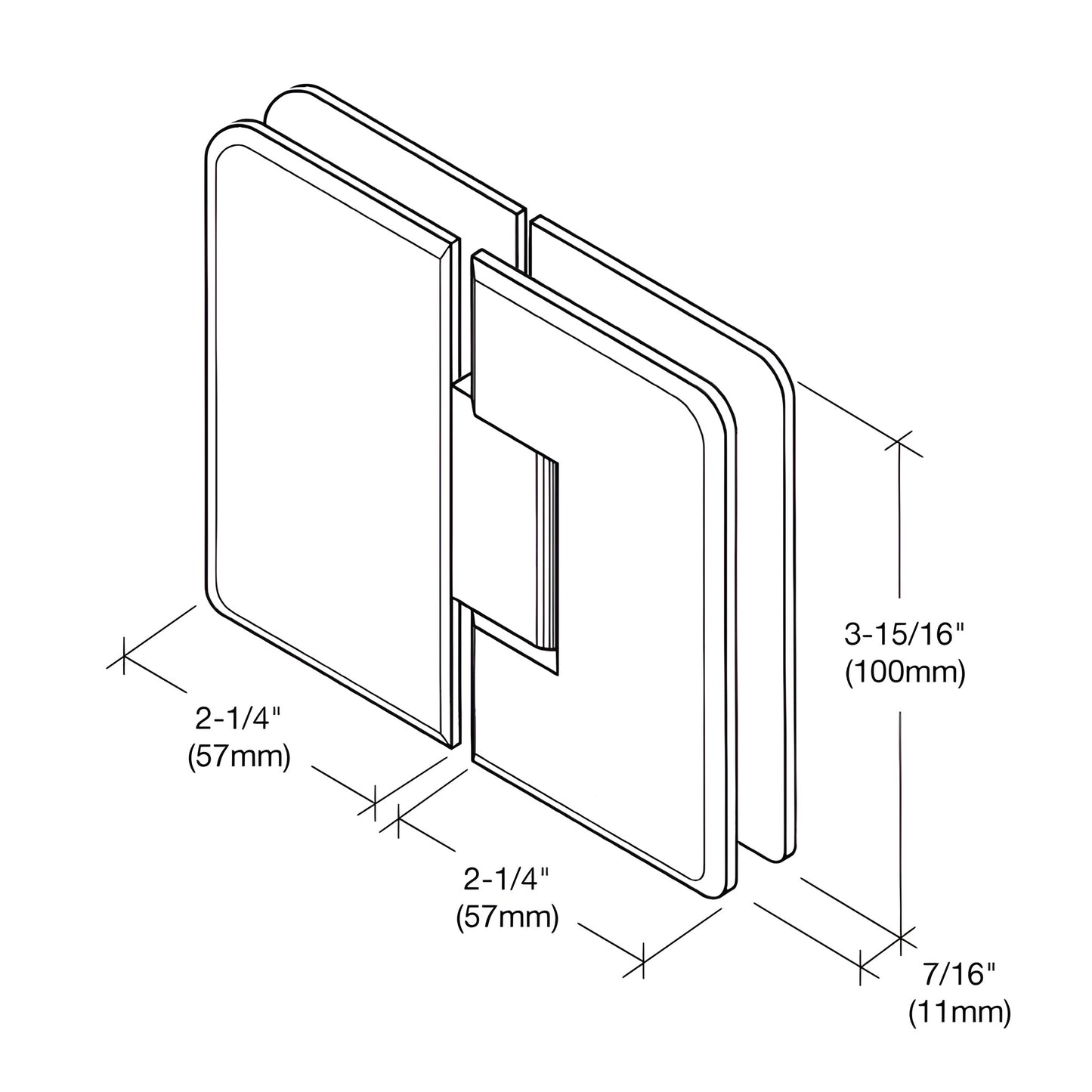

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out (180º glass‑to‑glass operation)
Closing Type: Self‑Centering when within 15º of closed position
Cut‑Out Required: Except C0L092 which requires cut‑out for door and two holes for fixed panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
