CRL 180° Square Unlacquered Brass Glass-to-Glass Shower Clamp

• Joins two glass panels at 180 degrees
• Solid brass construction
• Designed for monolithic tempered glass
• Clamps create a near "all-glass" appearance—an alternative to traditional U-channel
• Glass fabrication required to accommodate clamps

CRL Square 180 Degree Glass-to-Glass Clamp (SKU: SGC180ULBR) have sharp, squared-off corners and connect two fixed glass panels meeting inline. These solid brass glass clamps are available in multiple finishes to coordinate with our door hinges and clamp hardware. Commonly used for custom glass partitions, transoms, showcases, trophy cases, and all-glass enclosures, they provide a clean, premium look for architectural and display applications. Drawings and templates for all clamps are available.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Brass Finish Advisory:

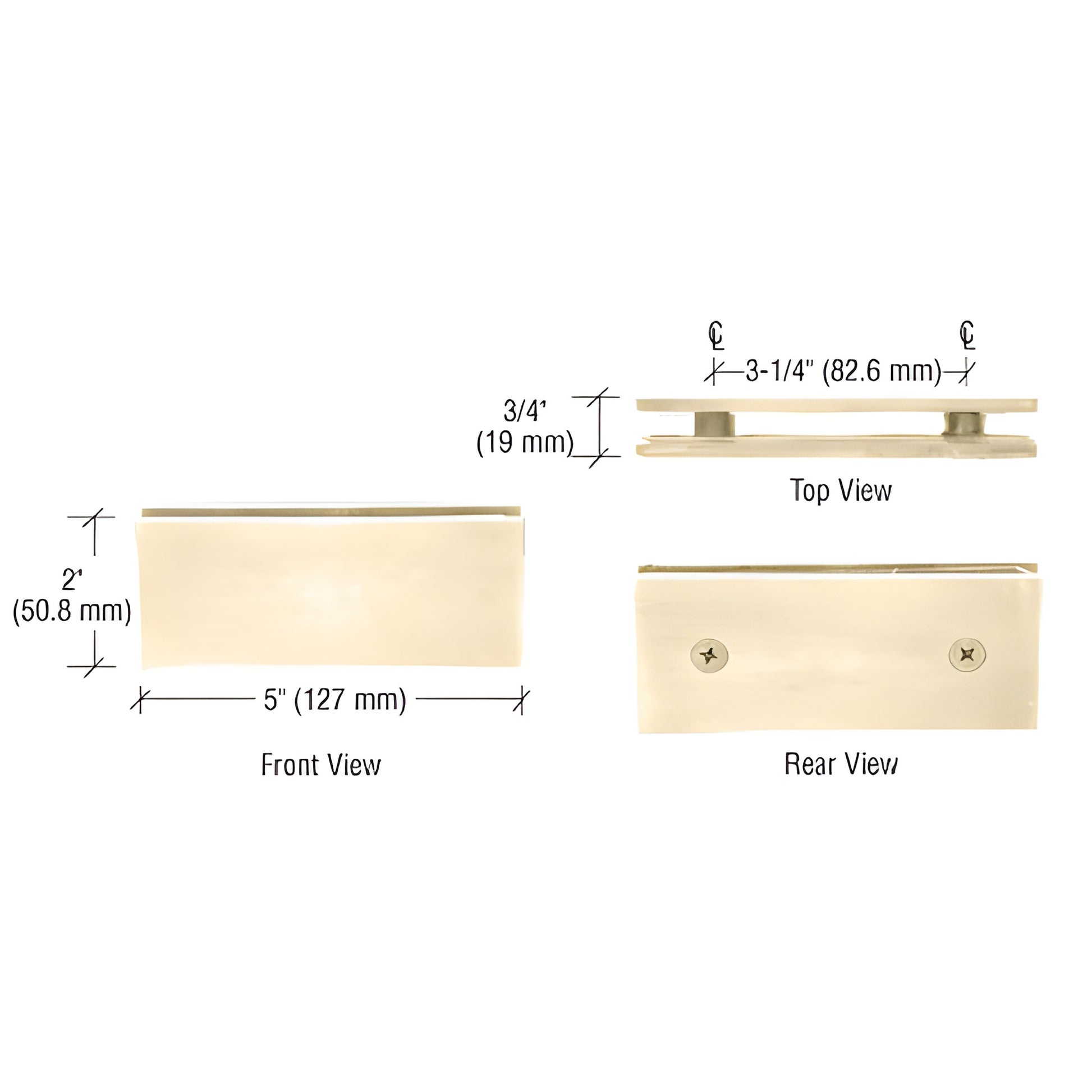

For drawings, finish options, or to request a template for SGC180ULBR, contact CRL or order now to add a refined, all-glass look to your project.
