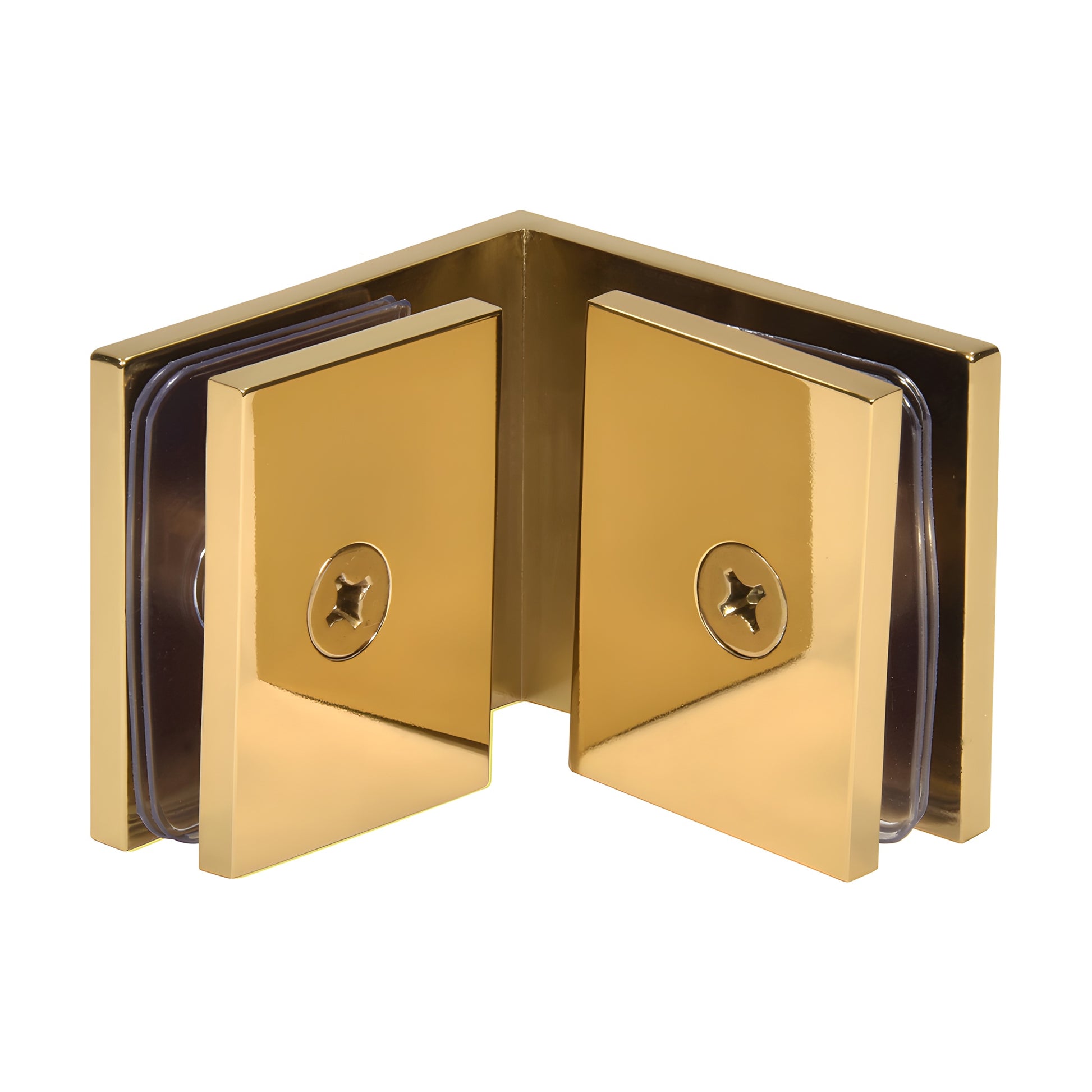

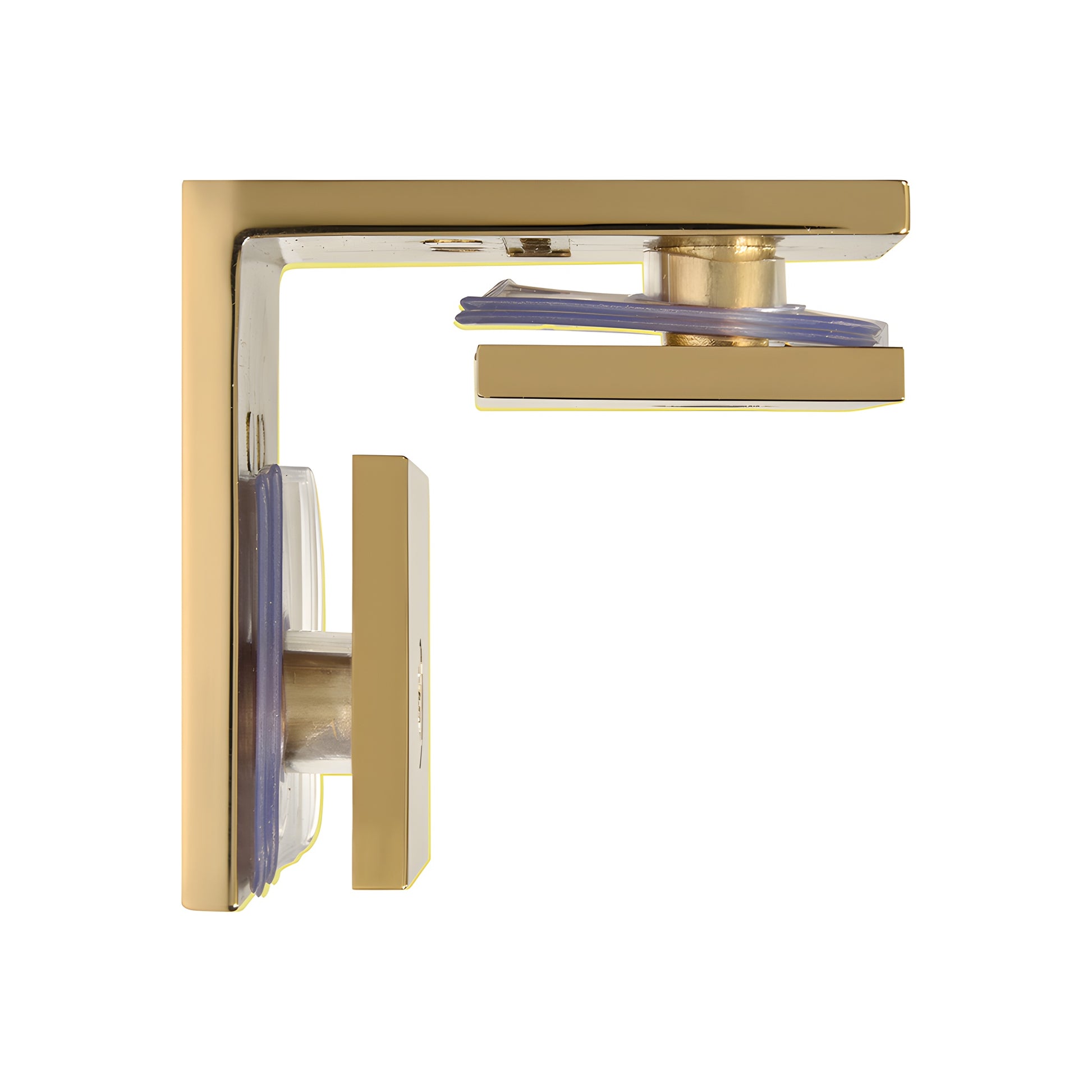

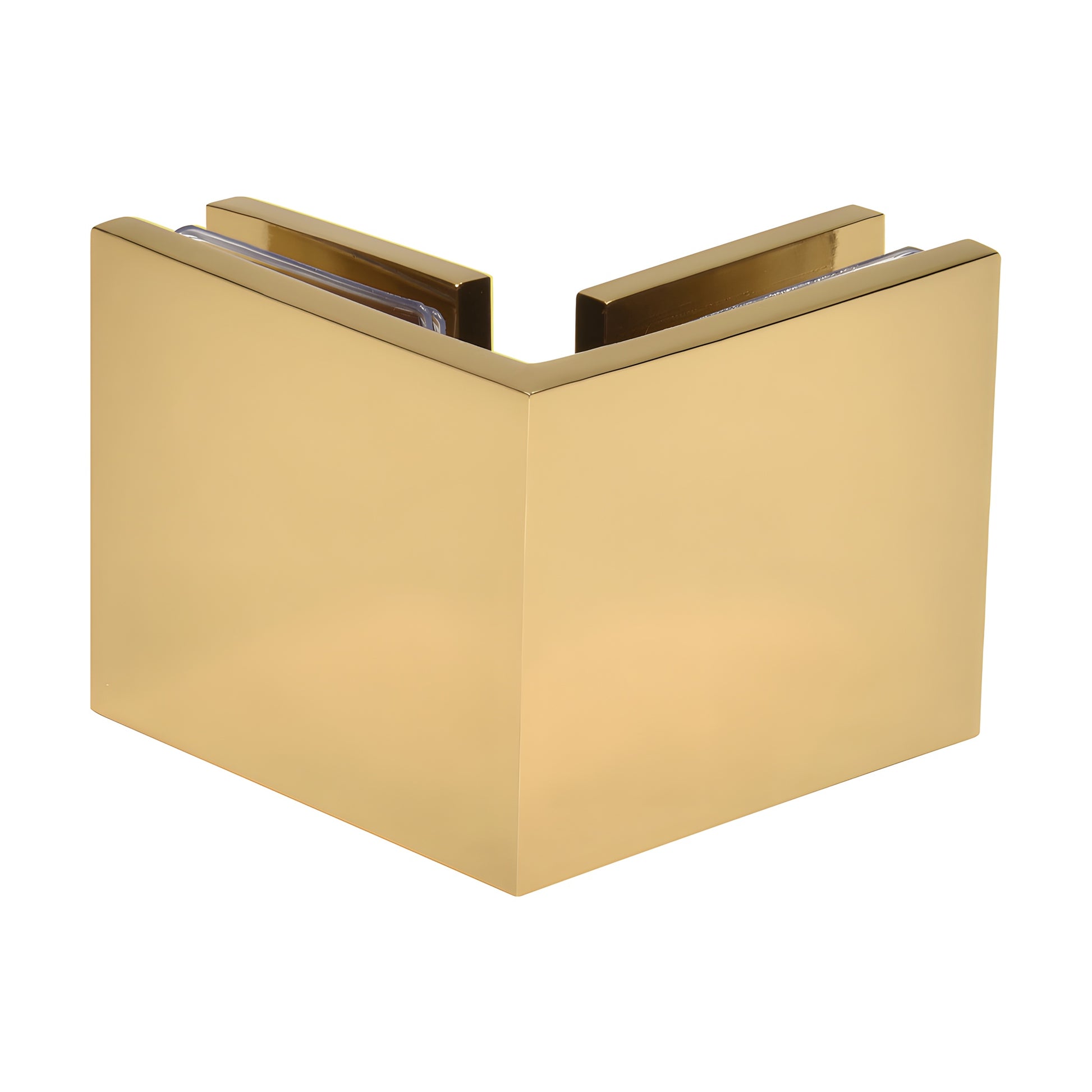

CRL Unlacquered Brass 90° Glass-to-Glass Clamp for Frameless Shower

CRL Unlacquered Brass 90° Glass-to-Glass Clamp for Frameless Shower

$48.75 CAD
$48.75 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SGC90ULBR
Shipping Weight: 1.03 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Unlacquered Brass
Glass To Glass Angle
90
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

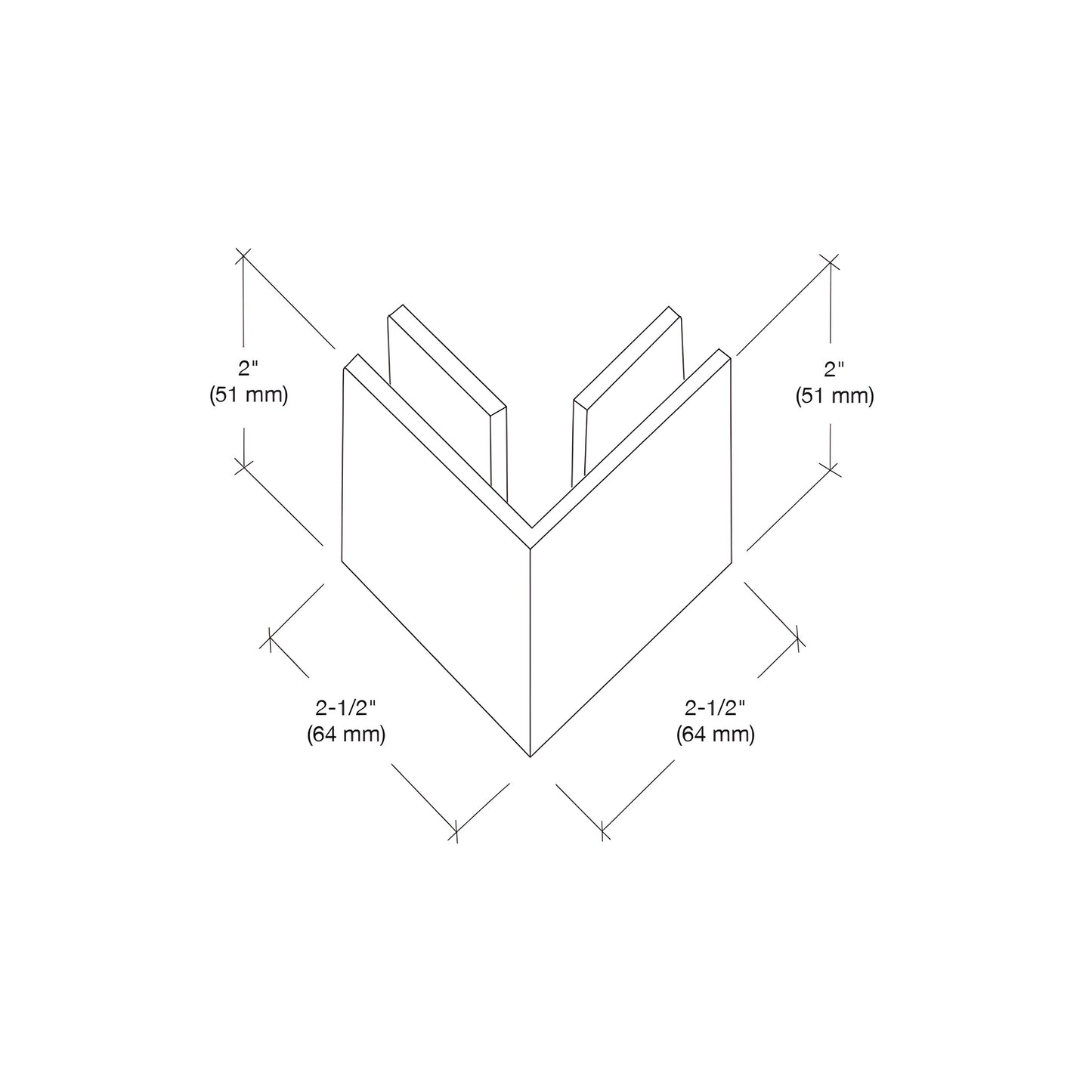

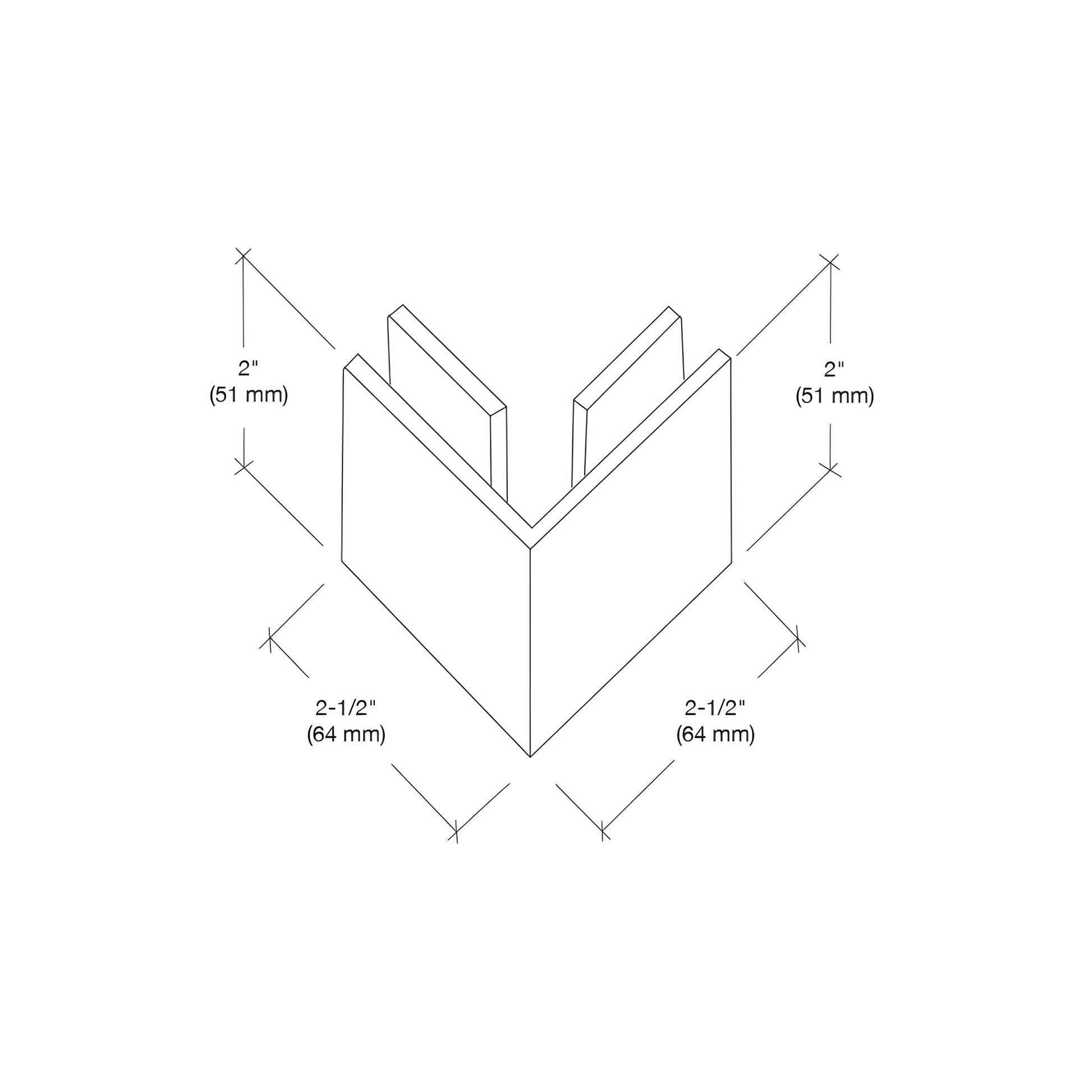

Height
2 in. (51 mm)
Leg Width
2-1/2 in. (64 mm)
Material
Brass
Mounting Type
Glass To Glass

Overview

  • For 3/8" to 1/2" (10 to 12 mm) glass
  • Secures fixed panels for frameless shower enclosures
  • Solid brass construction
  • Creates an 'all-glass' appearance versus traditional U-channel
  • Glass fabrication required to accommodate clamps
  • Use with monolithic tempered glass
CRL Square 90 Degree Glass-to-Glass Clamps have sharp, squared-off corners and a closed back. Designed to connect two fixed glass panels meeting at 90 degrees; panels may be overlapped or mitered at the corner. Drawings and templates for all clamps are available.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

SKU: SGC90ULBR

Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary with monitor settings.

Brass Finish Advisory:
Brass is durable but can oxidize and develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance.

Ideal for frameless shower hardware projects requiring a clean, all-glass look—order the SGC90ULBR brass 90° glass-to-glass clamp today.

Specifications

Templates
BGC90 SGC90 Template
