CRL UV Large Fixed Glass Shelf Support Bracket
CRL UV Large Fixed Glass Shelf Support Bracket
Regular price
$8.29 CAD
Regular price
Sale price
$8.29 CAD
Shipping calculated at checkout.
Quantity
Increments of 4Minimum of 4
Couldn't load pickup availability
Item# UV6192
Shipping Weight: 0.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 4
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 4
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Maximum Weight Capacity
44 lbs.(20 kg)
Thickness
9/32 in. (7 mm)
Overview
- Create custom designs with stainless steel material
- Choose from a large variety of styles for glass shelving
- Quick, secure installation using UV adhesives

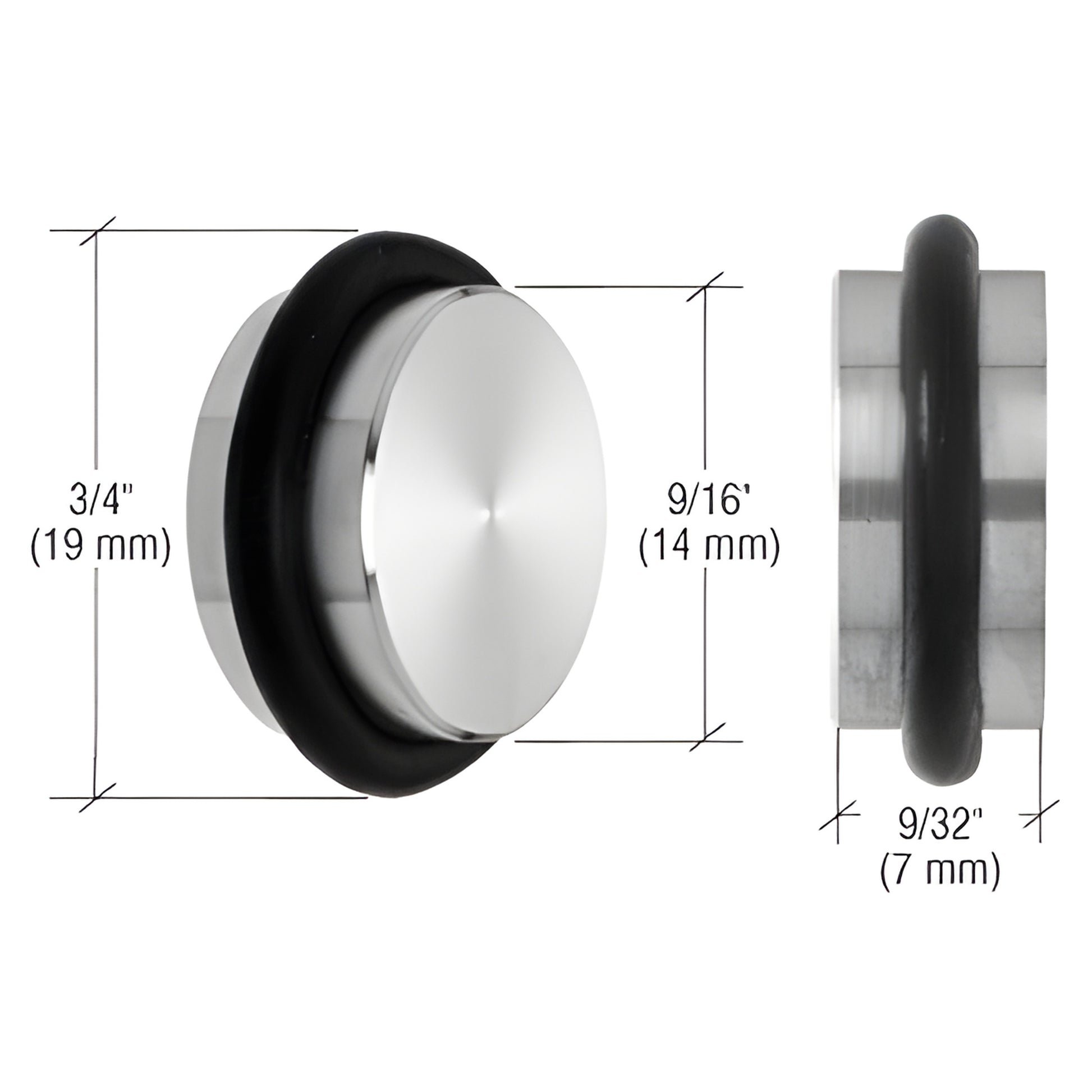

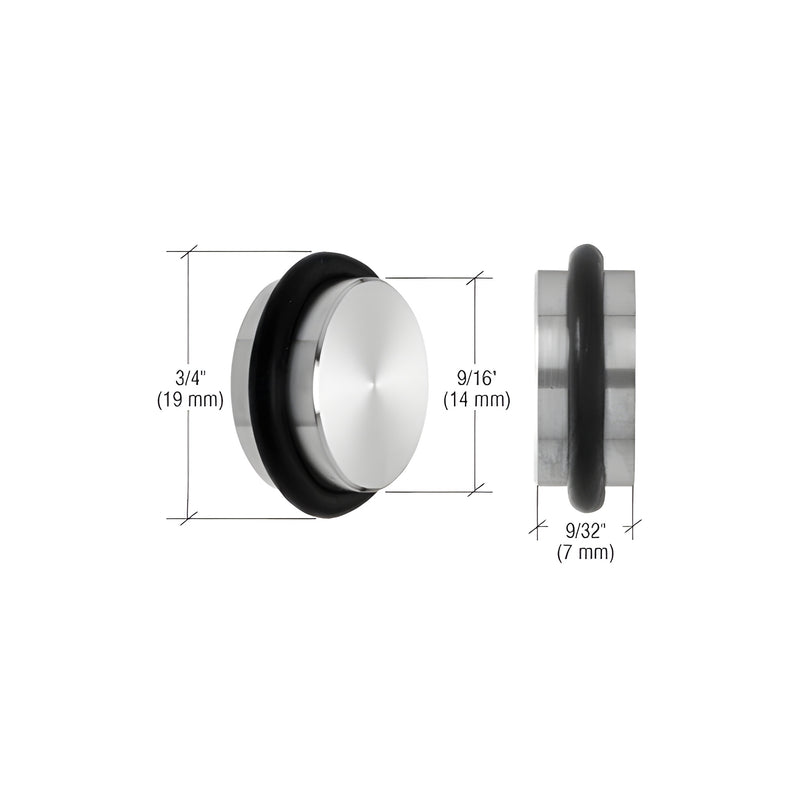

CRL's UV Large Fixed Shelf Support (SKU: UV6192) is engineered to bond to the vertical side panels of all-glass cabinets, providing stable support for glass shelving. A built-in rubber ring surrounds the cylinder to prevent glass movement and surface scratches—ideal for frameless glass display cases and retail cabinets. Measures 3/4" (19 mm) diameter and 9/32" (7 mm) thickness. Maximum weight capacity: 44 lbs (20 kg) each. Designed for easy UV adhesive bonding and long-lasting performance.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Order UV6192 today to secure glass shelves with a durable, scratch-resistant stainless steel support—perfect for all-glass cabinets and retail displays.
