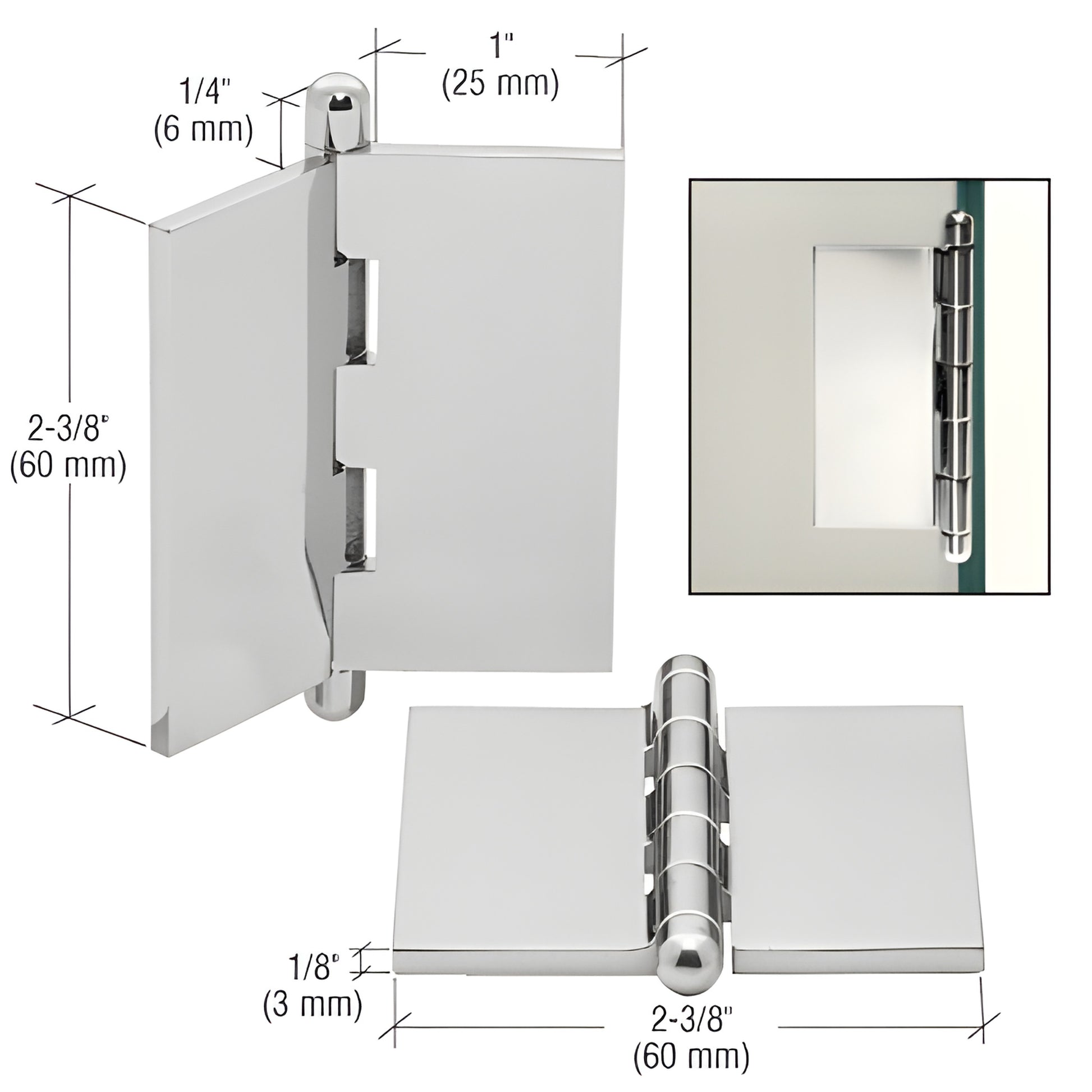

CRL UV Large Flat Glass-to-Glass Hinge

Overview

SKU	UV0090
Sold as	1 Each
Finish/Color:	Chrome
Height	2-3/8 in. (60 mm)
Maximum Door Width	19 in. (483 mm)
Maximum Weight Capacity	16-1/2 lbs.(7 kg)
Overall Width	2-3/8 in. (60 mm)
Wing Width	1 in. (25.4 mm)

Description

Product Details

2-3/8" (60 mm) Square
For Inset or Overlay Doors
Chrome Plated Brass

CRL's UV Large Flat Glass-to-Glass Hinge is free-swinging and designed for 'all-glass' showcases or cabinets. The maximum glass thickness is 1/4" (6 mm). The maximum recommended door width is 19" (483 mm). Maximum weight per pair of Hinges is 16-1/2 lbs. (7.5 kg).

NOTE: Lightly scuff (do not scratch) bonding surface prior to applying adhesive.
