Most shipping weights are approximate and unverified. If exact weight or shipping costs are required to complete your order, contact CRL Customer Service before submitting your order. Product images represent the actual product or a close representation; colors may vary by monitor and settings.
CRL
CRL Vertical Sliding Service Window, 1/4-in Vinyl Glazing, No Screen
CRL Vertical Sliding Service Window, 1/4-in Vinyl Glazing, No Screen
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SWB1000A
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
One Fixed Top Panel And One Sliding Lower Panel
Finish/Color
Satin Anodized
Glazed
No
Glazing Thickness
1/4 in. (6 mm)
Material
Aluminum
Panel Designation
O = Fixed, X = Sliding
Screen
No
Usage
Interior,Exterior
Window Style
Vertical Sliding
Overview
- For light-duty applications (50 or fewer uses per day)
- For windows exceeding 1050 square inches (width × height)
- Available in vertical and horizontal formats
- Available pre-glazed or non‑glazed
- Each unit is customized to fit your needs (SKU: SWB1000A)

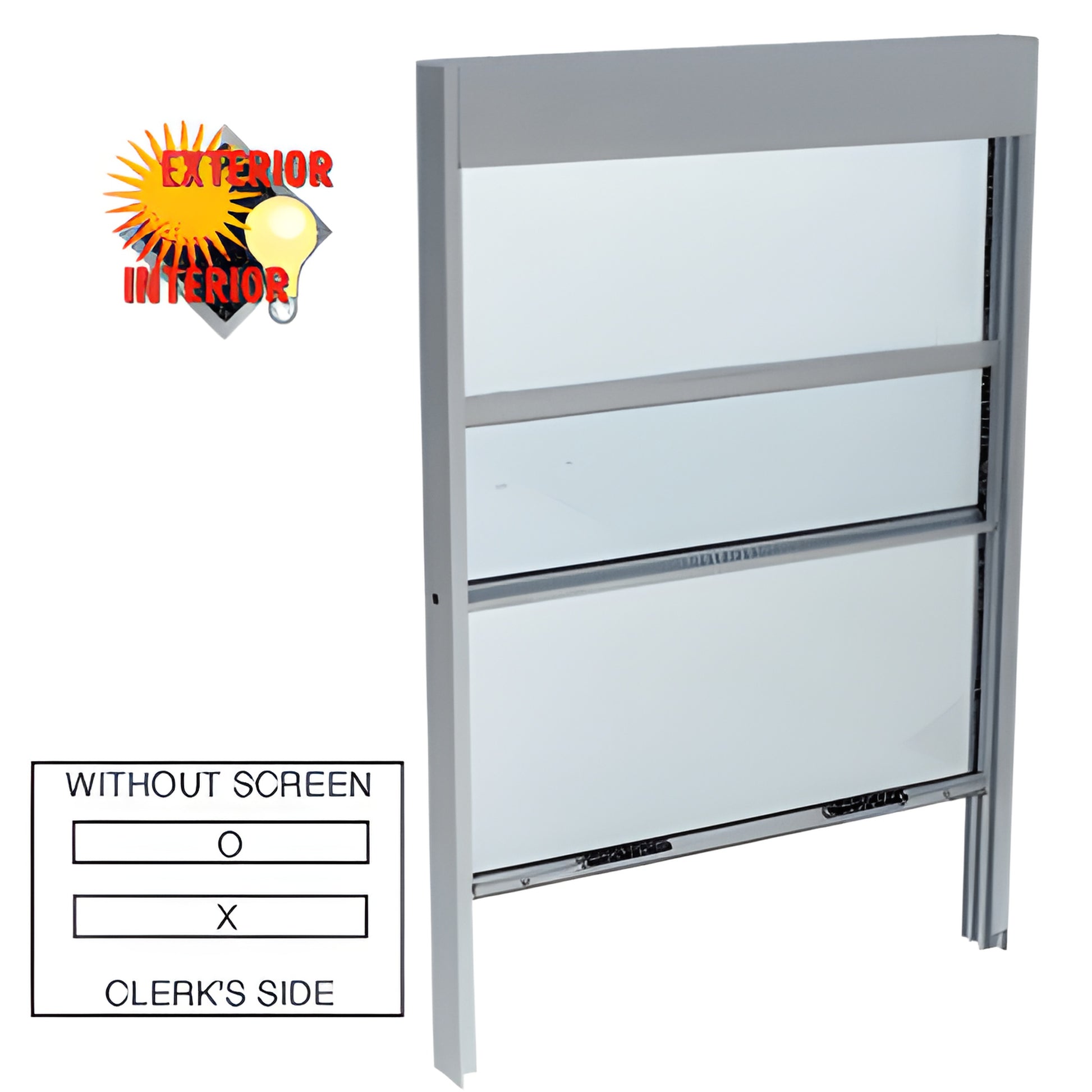

These CRL Vertical Sliding Service Windows feature one lower sliding panel and one fixed upper panel. Typically supplied with vinyl to accommodate 1/4" (6 mm) glazing, some models can be ordered pre-glazed with 1/4" (6 mm) tempered glass and some include a sliding screen. All units ship assembled and ready for glazing and installation—ideal as a custom vertical sliding service window for light-duty retail, ticketing, or service-counter applications.
NOTE: Windows exceeding 1050 square inches (width × height) require a covered top to conceal sash balances. An overhang or awning is recommended for exterior installations.
SPECIFICATIONS:
Materials: Extruded aluminum; tempered safety glass (on some models); fiberglass screen (on some models)
Finishes: Satin anodized, Duranodic bronze, RAL powder coat, or KYNAR® paint
Glazing: 1/4" (6 mm) vinyl (standard); pre-glazed tempered glass available on select models
Installation: Installation instructions included
Looking for a customizable, light-duty vertical sliding service window (SWB1000A)? Contact us for a quote or to place an order.
Specifications
CAD Drawings - dwg
