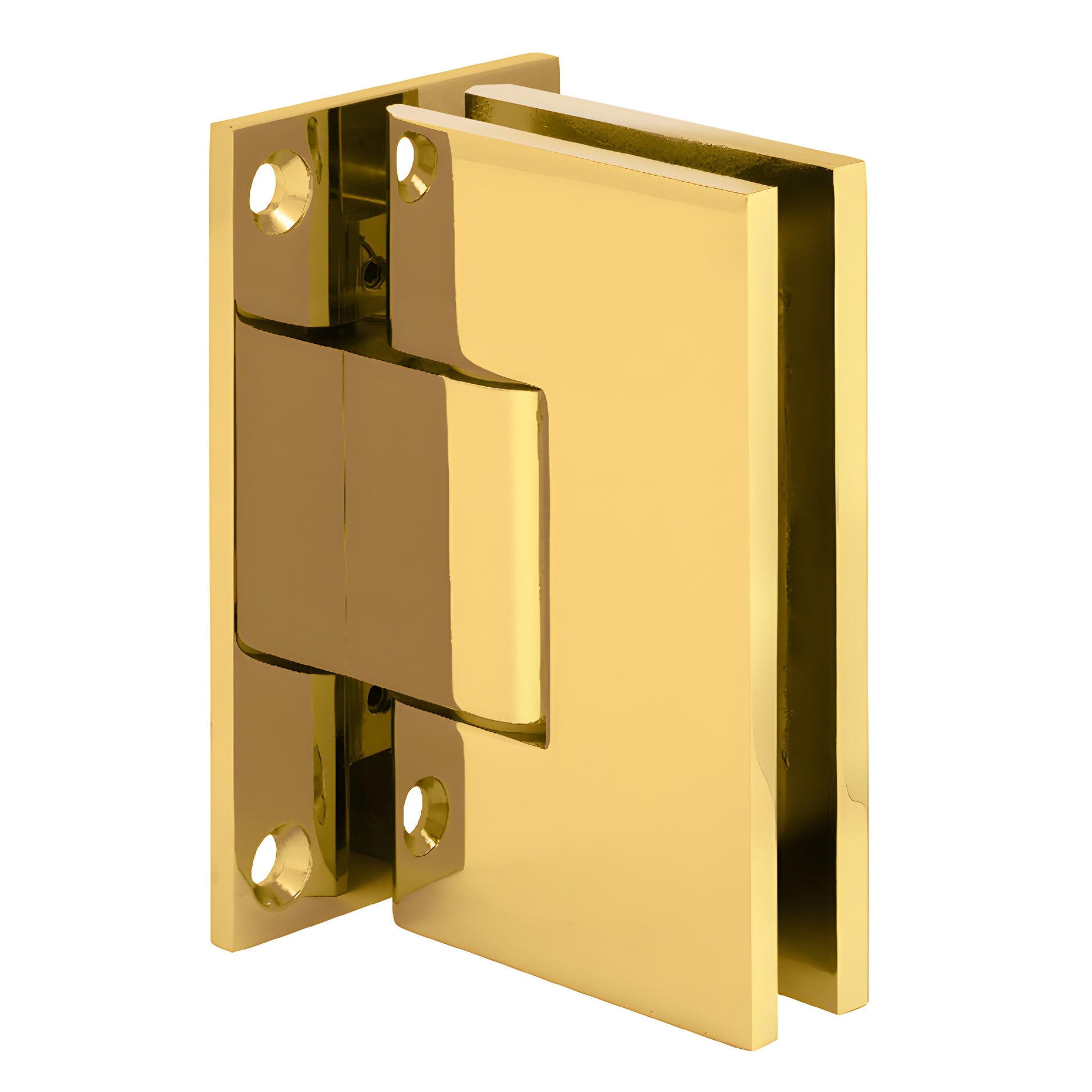

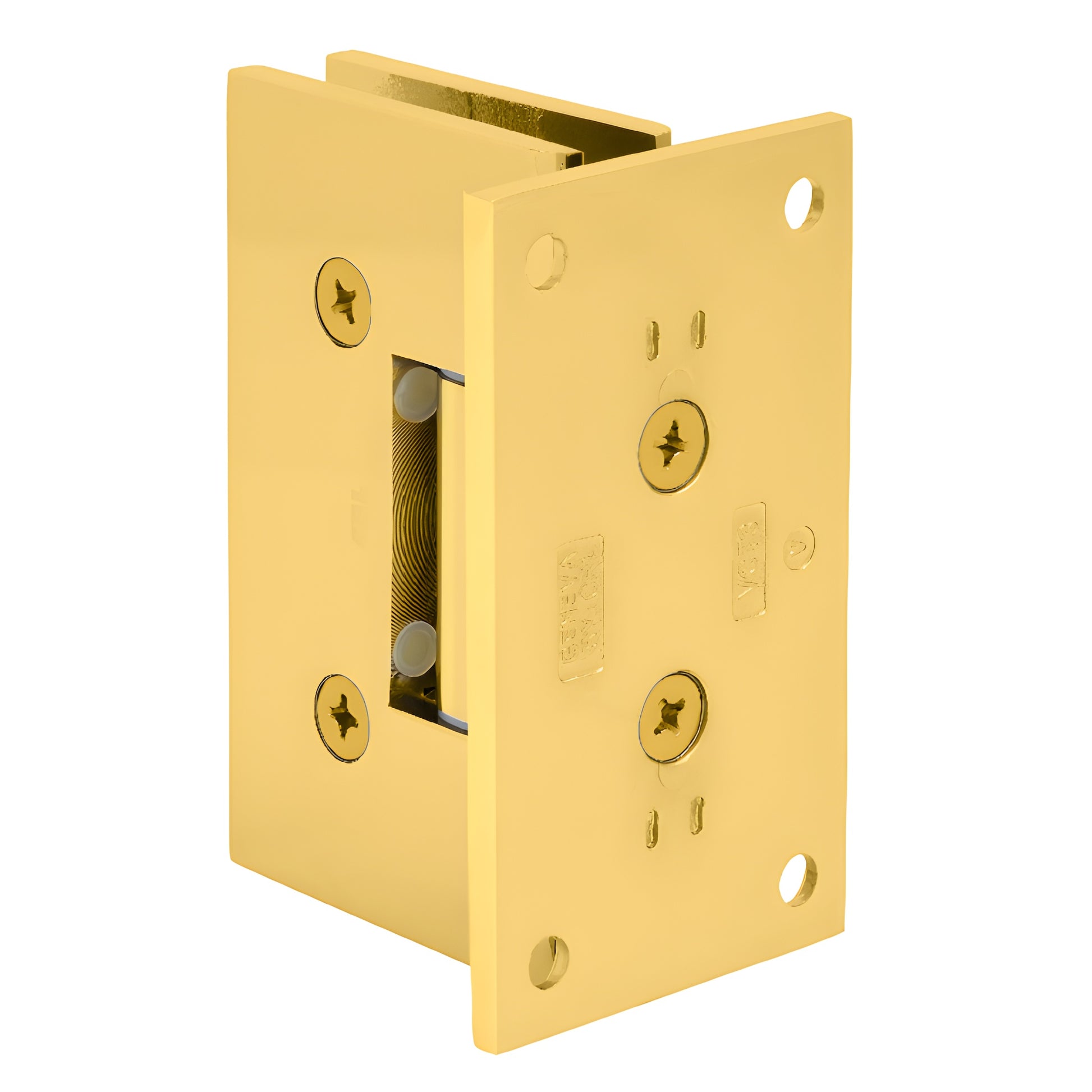

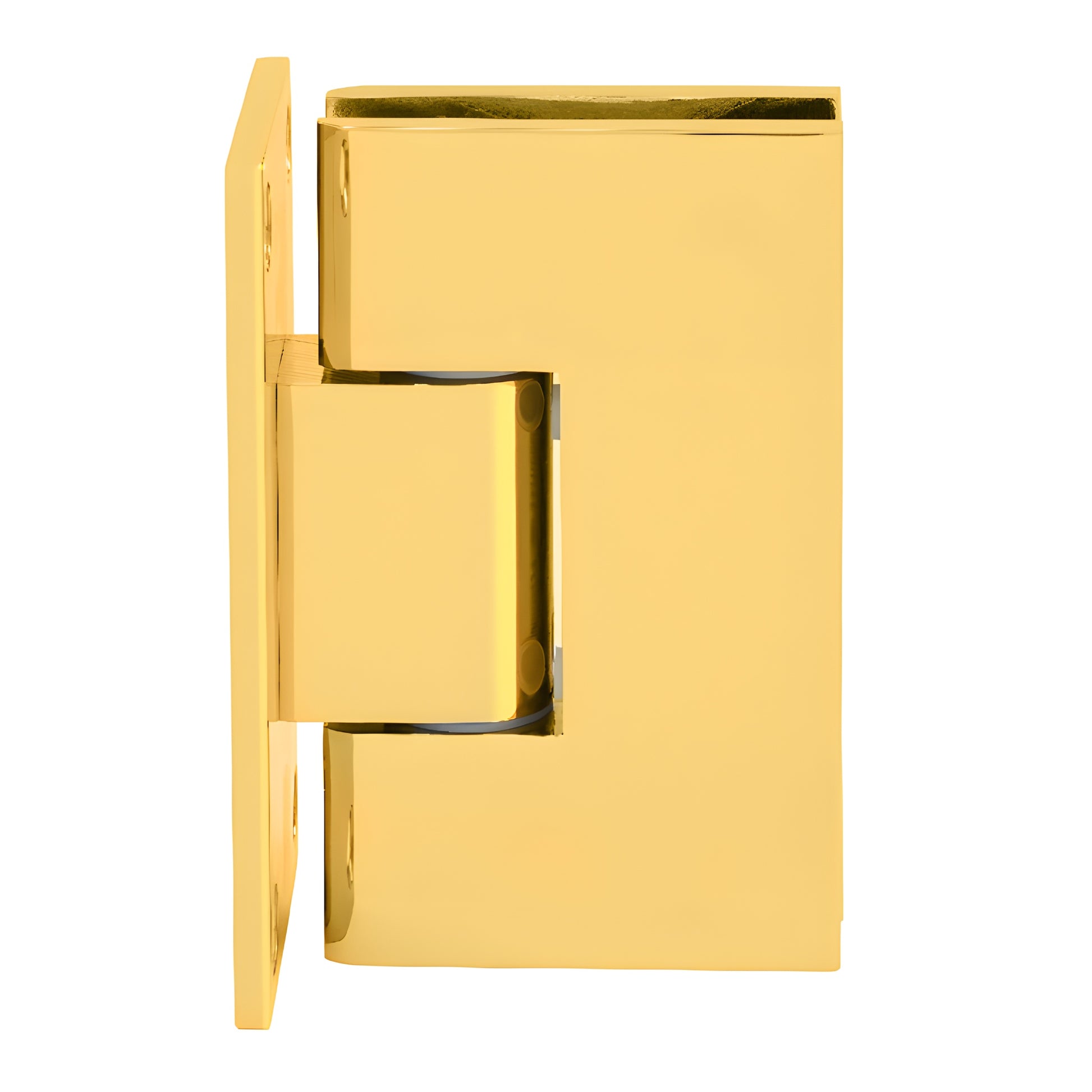

CRL Victoria Series Brass Wall-Mount Full Back Plate Door Hinge

• Excellent choice for heavier, wider frameless shower doors
• Integrated safety interlock enhances glass panel control
• Available in wall-mount and 180° glass-to-glass shower hinge models
• For use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass

CRL Victoria Series Hinges (SKU: VCT037BR) support wider, heavier frameless shower doors with a maximum door weight of 140 lbs (64 kg) and a maximum door width of 39" (1 m) when using only two hinges. These heavy-duty, solid-brass shower door hinges reduce visible hardware for a clean frameless aesthetic and use an integrated stiffening beam to minimize clamping-plate flex for exceptional holding power. Heat-treated stainless steel springs and increased self-centering force improve durability and reliable operation. Stocked in six popular finishes; custom finishes available.

Important: Use a maximum of two hinges per door. Do not use three hinges. Do not exceed the listed door weight or width capacities. Glass fabrication is required.

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions (cut‑out required)

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Brass Finish Advisory:
