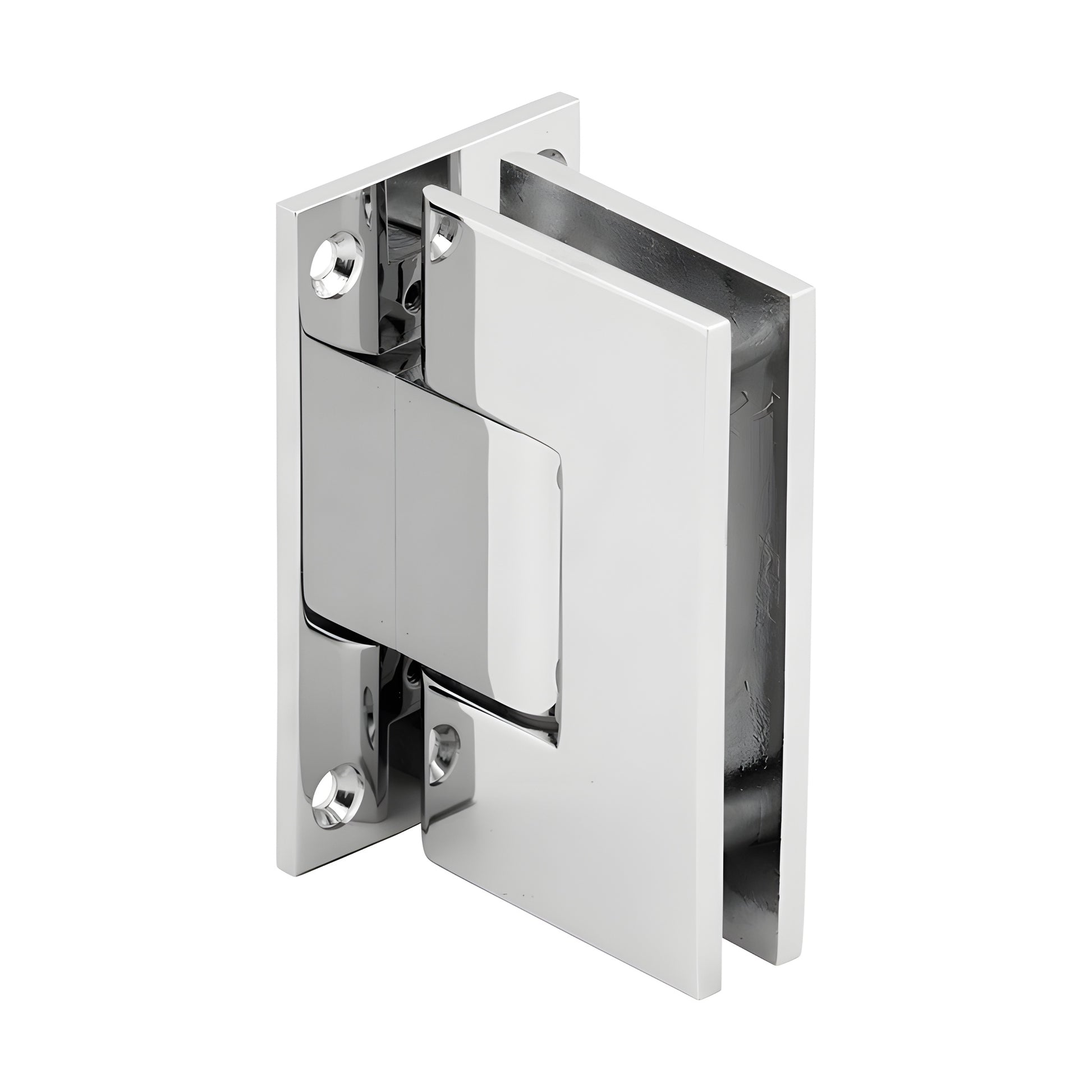

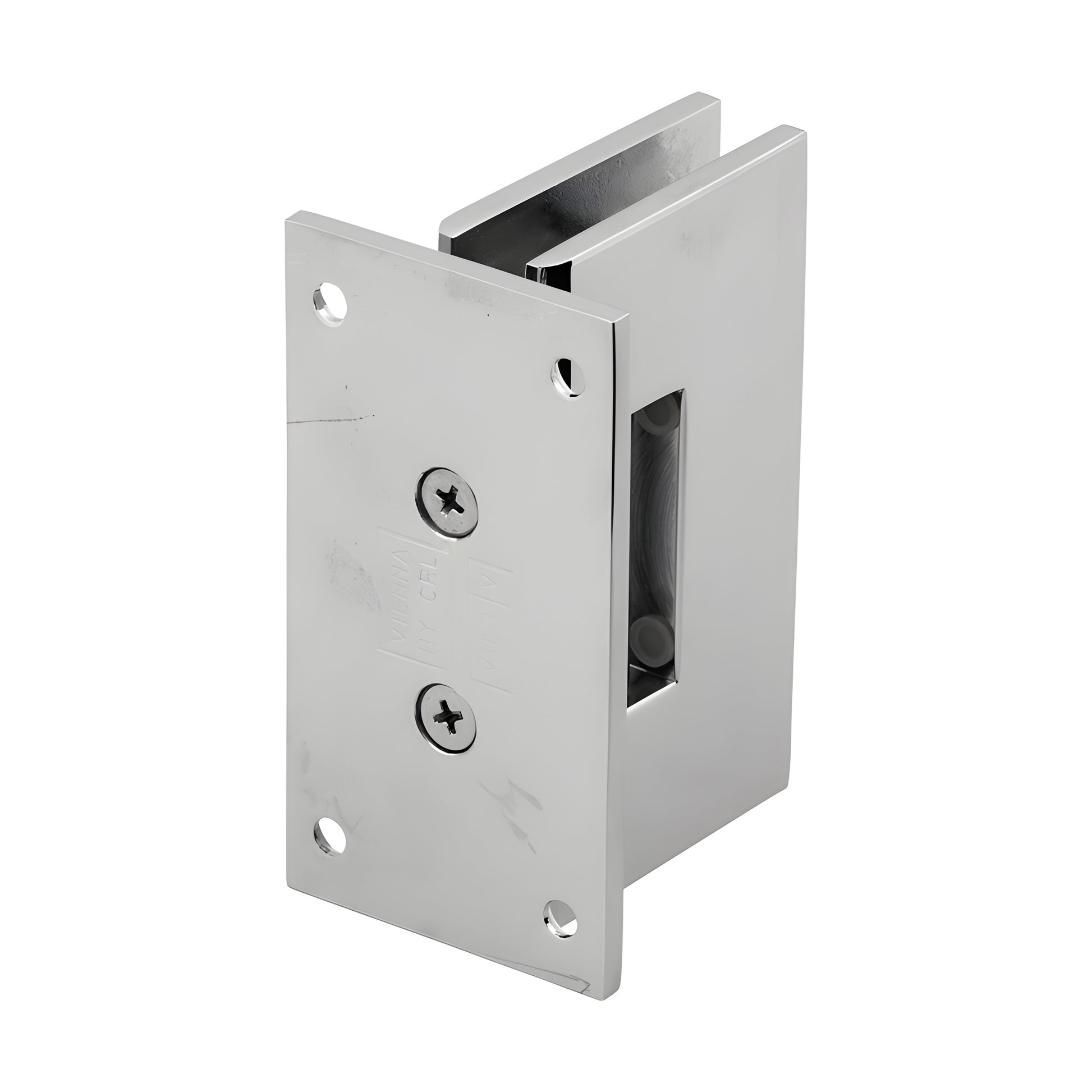

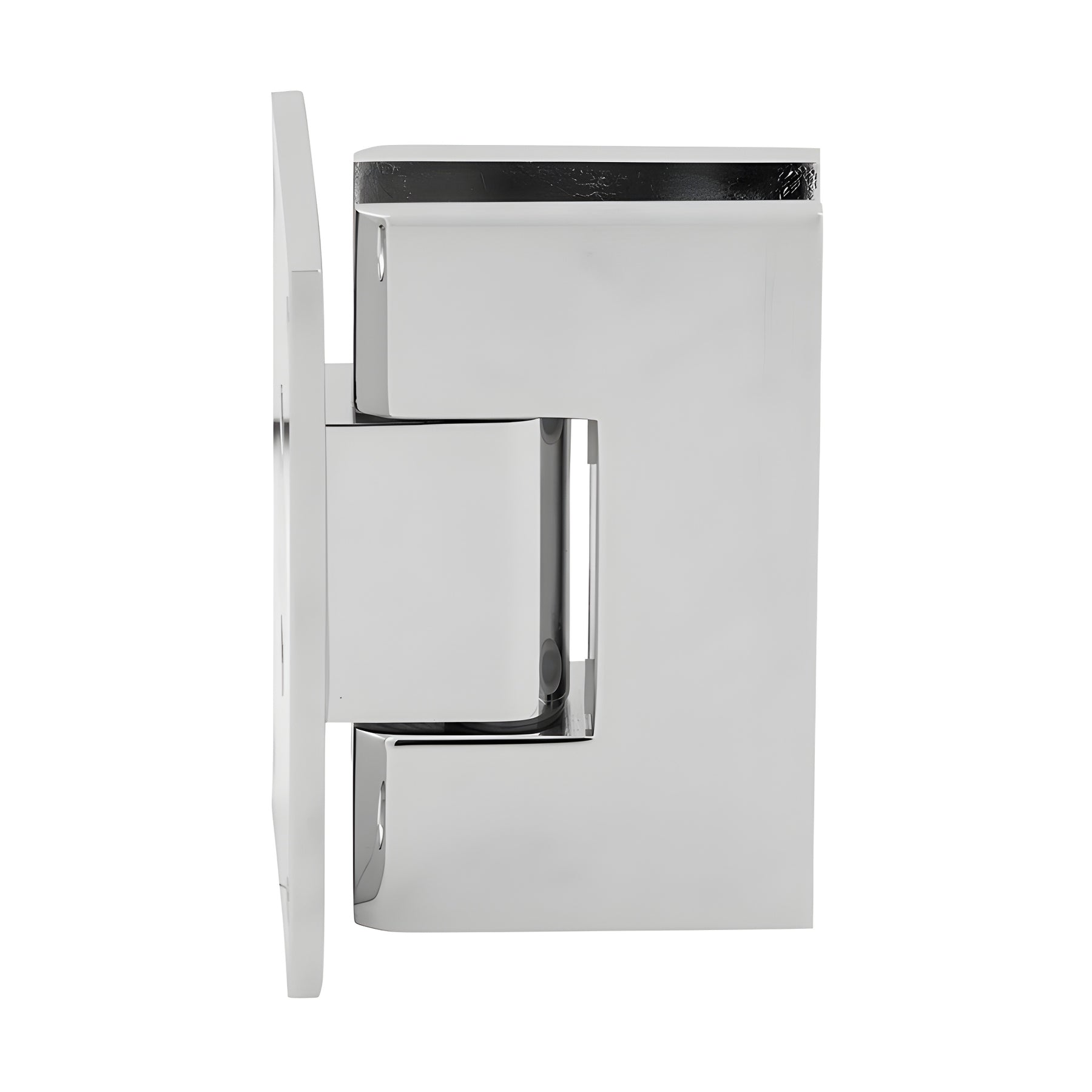

CRL Vienna 037 Polished Chrome Glass Door Wall-Mount Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in multiple decorative finishes
• 3-year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)
• Use monolithic tempered safety glass

CRL Vienna Hinges provide a heavy-duty solution for wider, heavier shower doors when standard hinges are insufficient. Built from solid brass, these shower door hinges include two internal steel locator pins that offer installation flexibility: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove them for enhanced adjustability and compatibility with rectangular, square-corner cut-outs (including some competitive patterns). These features make the Vienna hinge a reliable brass shower door hinge for tempered glass enclosures and retrofit applications.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°. Rotate the pin (not flip) to engage the 85° side for a 5° tighter closure into the shower interior. This adjustable pivot pin is ideal for precise door alignment and self-closing performance.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (if the wall and door do not meet at 90°). Specify the required angle—up to 45°—when standard adjustment does not achieve the desired closing position.

Capacity & Configuration:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg); maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lb (63 kg); maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (durable shower hinge construction)
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Standard cut-out required (except V1E092 which requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request. Contact CRL Technical Sales — Shower Door Department for specialty finishes and customization.
